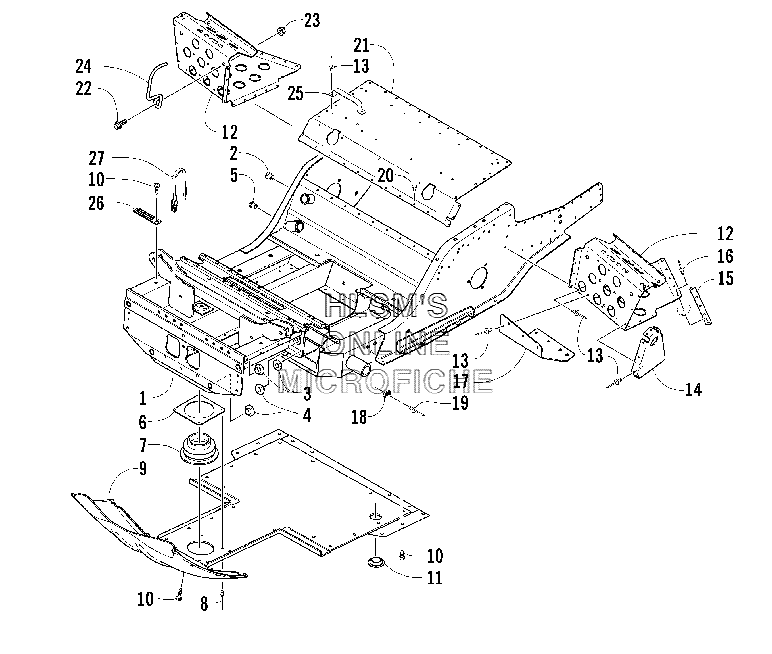

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Bearcat WIDE TRACK - 2006 года выпуска
-
№АртикулНазвание
-
11707-086 CHASSIS ASSY (INC. 2, 5)CHASSIS ASSY (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30607-421 INSERT, A-ARM MOUNT (UPPER)INSERT, A-ARM MOUNT (UPPER)
-
40607-420 INSERT, A-ARM MOUNT (LOWER)INSERT, A-ARM MOUNT (LOWER)
-
50623-582 INSERTINSERT
-
60712-952 RING, EXHAUST OUTLETRING, EXHAUST OUTLET
-
71612-027 BOOT, EXHAUSTBOOT, EXHAUST
-
88060-508 RIVETRIVET
-
93706-048 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
100623-784 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
112606-367 PLUG, OIL DRAIN ACCESSPLUG, OIL DRAIN ACCESS
-
122606-274 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
122606-275 FOOTREST (LEFT)FOOTREST (LEFT)
-
130623-166 RIVETRIVET
-
140607-676 BRACKET, FOOTREST (RIGHT)BRACKET, FOOTREST (RIGHT)
-
140607-677 BRACKET, FOOTREST (LEFT)BRACKET, FOOTREST (LEFT)
-
152706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
160623-282 RIVETRIVET
-
170607-678 PLATE, BACKING, FOOTREST (RIGHT)PLATE, BACKING, FOOTREST (RIGHT)
-
170607-679 PLATE, BACKING, FOOTREST (LEFT)PLATE, BACKING, FOOTREST (LEFT)
-
180623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
198060-506 RIVETRIVET
-
200123-418 RIVETRIVET
-
214606-060 COVER (FRONT)COVER (FRONT)
-
228020-040 SCREW, CAPSCREW, CAP
-
238048-366 NUT, LOCKNUT, LOCK
-
240745-200 BRACKET, HARNESSBRACKET, HARNESS
-
250707-710 BRACKET, HOLD, DOWNBRACKET, HOLD, DOWN
-
263002-964 CLAMP, WIRECLAMP, WIRE
-
270623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
