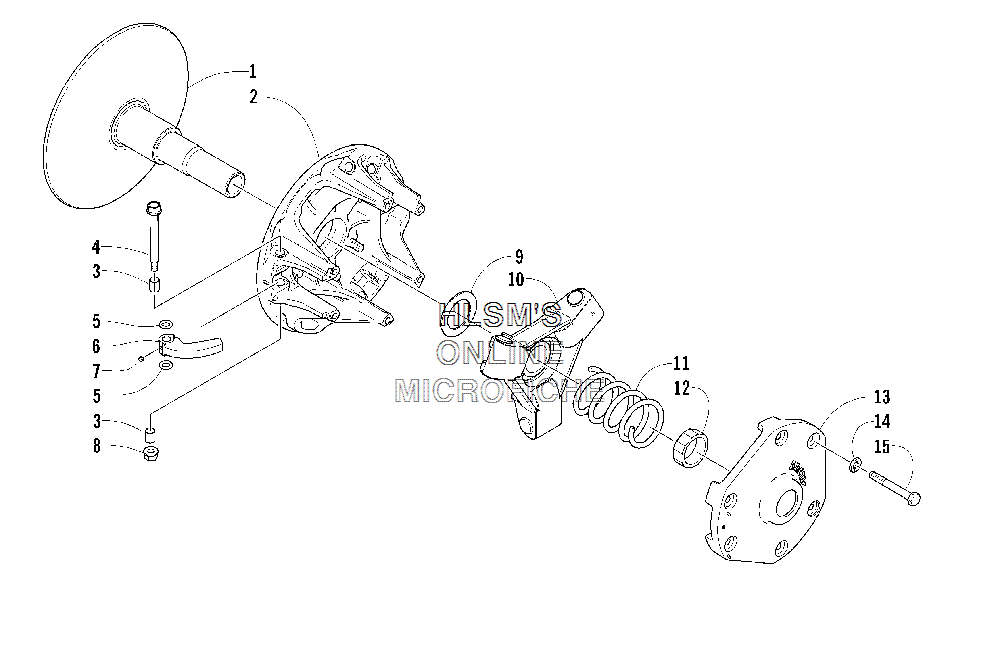

DRIVE CLUTCH для Arctic Cat M7 EFI 141'' (GREEN) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
10646-683 SHEAVE, STATIONARYSHEAVE, STATIONARY
-
20746-142 SHEAVE, MOVABLE (INC. 3)SHEAVE, MOVABLE (INC. 3)
-
30646-372 BEARINGBEARING
-
40646-747 PIN, CAM ARMPIN, CAM ARM
-
51602-692 O-RINGO-RING
-
60746-672 ARM, CAM (INC. 7/0, 3, 000 FT ALT.)ARM, CAM (INC. 7/0, 3, 000 FT ALT.)
-
60746-671 ARM, CAM (INC. 7/3, 6, 000 FT ALT.)ARM, CAM (INC. 7/3, 6, 000 FT ALT.)
-
60746-703 ARM, CAM (INC. 7/6, 9, 000 FT ALT.)ARM, CAM (INC. 7/6, 9, 000 FT ALT.)
-
60746-670 ARM, CAM (INC. 7/OVER 9, 000 FT ALT.)ARM, CAM (INC. 7/OVER 9, 000 FT ALT.)
-
71623-183 SCREW, SETSCREW, SET
-
88048-366 NUT, LOCKNUT, LOCK
-
90646-377 SPACERSPACER
-
100746-115 SPIDER ASSY.SPIDER ASSY.
-
110646-229 SPRING, DRIVE CLUTCH (YELLOW)LOW/WHITESPRING, DRIVE CLUTCH (YELLOW)LOW/WHITE
-
120646-140 NUTNUT
-
130746-113 COVERCOVER
-
148051-212 WASHER, LOCK, SPRINGWASHER, LOCK, SPRING
-
151623-442 SCREW, MACHINESCREW, MACHINE
