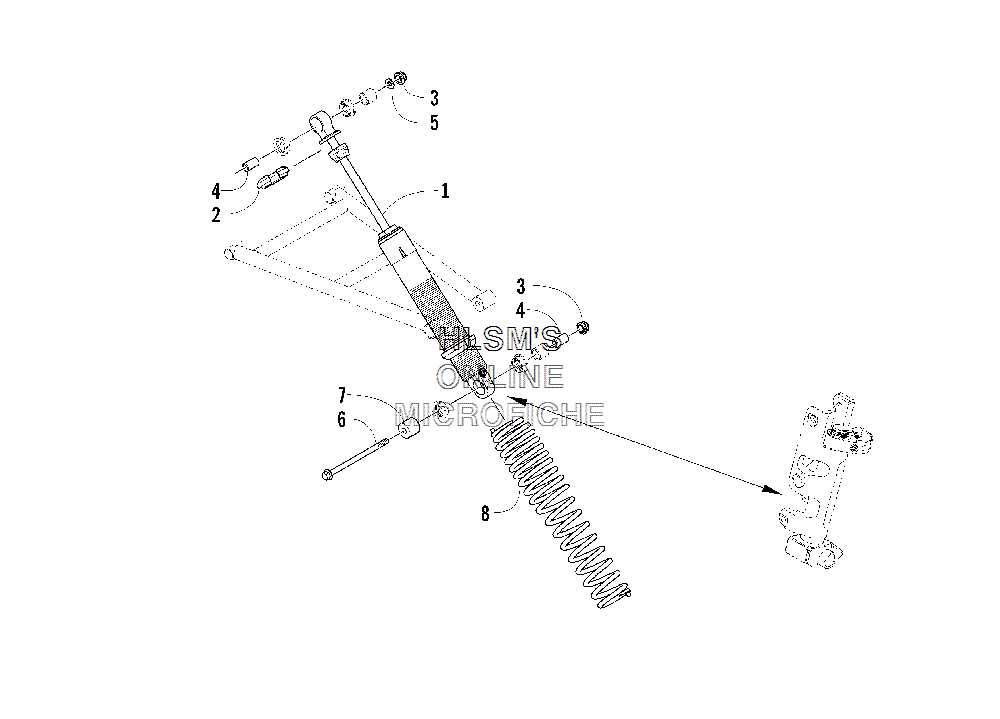

FRONT SUSPENSION SHOCK ABSORBER ASSY. для Arctic Cat M7 EFI 141'' (GREEN) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11703-783 SHOCK, SKISHOCK, SKI
-
21603-890 RETAINER, SPRINGRETAINER, SPRING
-
38047-486 NUT, LOCKNUT, LOCK
-
41603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
50623-991 WASHERWASHER
-
68020-232 SCREW, CAPSCREW, CAP
-
70603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
81703-787 SPRING, COMPRESSIONSPRING, COMPRESSION
