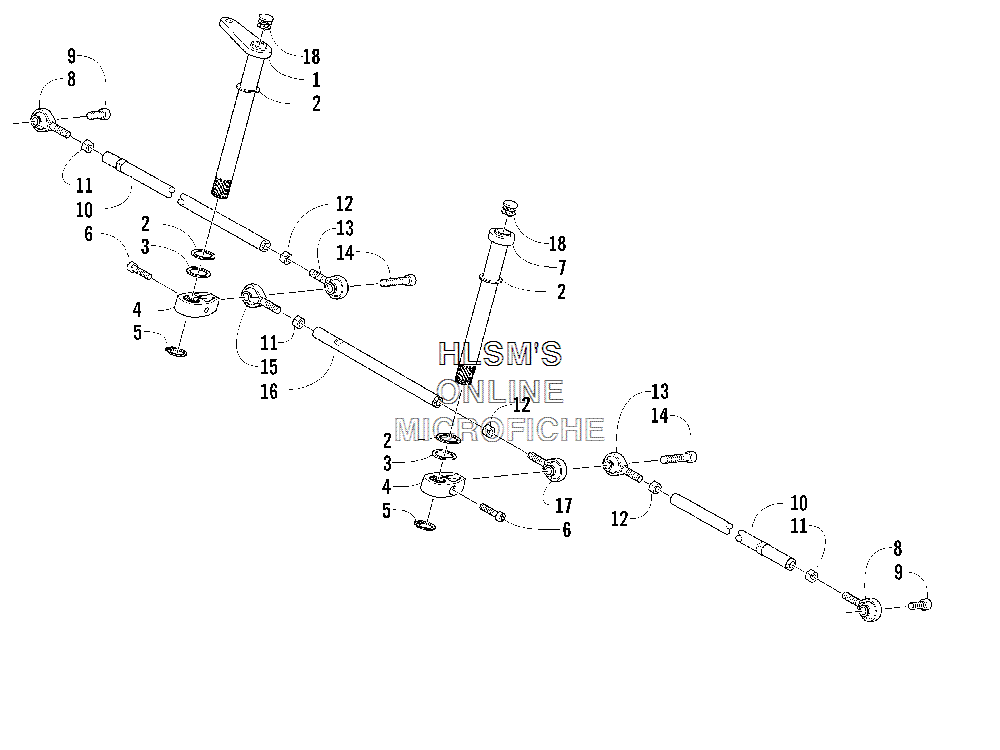

TIE ROD ASSY. для Arctic Cat M7 EFI 141'' (GREEN) INTERNATIONAL - 2006 года выпуска
-
№АртикулНазвание
-
11705-159 SHAFT, STEERINGSHAFT, STEERING
-
20623-954 WASHER, THRUST-.900X1.25X.042WASHER, THRUST-.900X1.25X.042
-
30623-955 WASHER, THRUST-.900X1.25X.030WASHER, THRUST-.900X1.25X.030
-
40605-635 ARM, SHAFTARM, SHAFT
-
50623-956 SNAP RINGSNAP RING
-
68005-584 SCREW, CAPSCREW, CAP
-
71705-162 SHAFT, IDLERSHAFT, IDLER
-
80605-607 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
91623-176 SCREW, CAPSCREW, CAP
-
100605-680 TUBE, TIE ROD, SPINDLETUBE, TIE ROD, SPINDLE
-
110123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
120623-294 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
130605-608 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
140623-957 SCREW, CAPSCREW, CAP
-
150605-605 BALL JOINT, TIE ROD (LEFT)BALL JOINT, TIE ROD (LEFT)
-
160605-312 TUBE, TIE RODTUBE, TIE ROD
-
170605-606 BALL JOINT, TIE ROD (RIGHT)BALL JOINT, TIE ROD (RIGHT)
-
183606-799 PLUGPLUG
Все узлы модели:
- A-ARM ASSY.
- AIR INTAKE ASSY.
- AIR SILENCER ASSY.
- BELLY PAN ASSY.
- BELT GUARD ASSY.
- CONSOLE AND SWITCH ASSY.
- COOLING ASSY.
- CRANKCASE ASSY.
- CYLINDER AND HEAD ASSY.
- DRIVE CLUTCH
- DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES
- DRIVEN CLUTCH
- ELECTRICAL
- ENGINE AND RELATED PARTS
- EXHAUST ASSY.
- FRONT FRAME AND FOOTREST ASSY.
- FRONT SUSPENSION SHOCK ABSORBER
- FRONT SUSPENSION SHOCK ABSORBER ASSY.
- FUEL PUMP ASSY.
- GAS TANK ASSY.
- GEARCASE ASSY.
- HANDLEBAR AND CONTROLS
- HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES
- HOOD AND WINDSHIELD ASSY.
- HYDRAULIC BRAKE CONTROL ASSY.
- IDLER WHEEL ASSY.
- MAGNETO
- OIL PUMP
- OIL TANK ASSY.
- PISTON AND CRANKSHAFT
- REAR SUSPENSION FRONT ARM ASSY.
- REAR SUSPENSION FRONT ARM SHOCK ABSORBER
- REAR SUSPENSION REAR ARM ASSY.
- REAR SUSPENSION REAR ARM SHOCK ABSORBER
- RECOIL STARTER
- REED VALVE ASSY.
- SEAT ASSY.
- SERVOMOTOR ASSY.
- SKI AND SPINDLE ASSY.
- SLIDE RAIL AND TRACK ASSY.
- STEERING POST ASSY.
- THROTTLE BODY ASSY.
- • TIE ROD ASSY.
- TUNNEL- REAR BUMPER- AND TAILLIGHT ASSY.
- WATER PUMP AND THERMOSTAT
