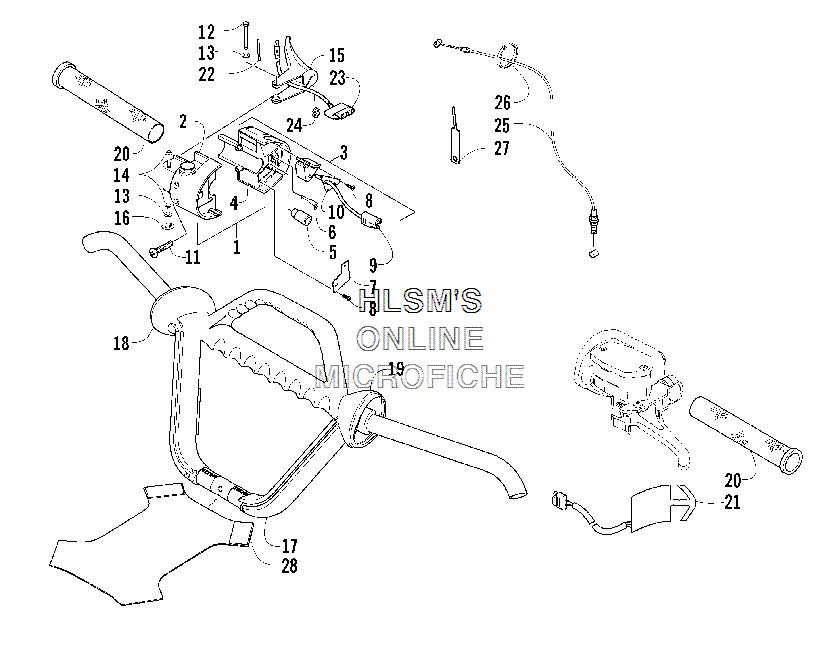

HANDLEBAR AND CONTROLS для Arctic Cat M7 EFI 162'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10609-675 CONTROL, ASSY. (INC. 2, 10)CONTROL, ASSY. (INC. 2, 10)
-
20609-674 CONTROL, THROTTLE, STOP SWITCH HALFCONTROL, THROTTLE, STOP SWITCH HALF
-
30609-673 CONTROL, THROTTLE, THUMBWARMER ASSY. (INC. 4, 10)CONTROL, THROTTLE, THUMBWARMER ASSY. (INC. 4, 10)
-
40609-495 CONTROL, THROTTLE, THUMBWARMER HALF W/O COMPONENTSCONTROL, THROTTLE, THUMBWARMER HALF W/O COMPONENTS
-
50609-497 PLUG, RUBBERPLUG, RUBBER
-
60609-498 CLIP, RETAINING, THROTTLE CABLECLIP, RETAINING, THROTTLE CABLE
-
70609-496 PLATE, COVERPLATE, COVER
-
80609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
90609-672 SWITCH, THUMBWARMER ASSY. (INC. THREE NO. 8 AND 10)SWITCH, THUMBWARMER ASSY. (INC. THREE NO. 8 AND 10)
-
100609-378 PLATE, COVERPLATE, COVER
-
110609-492 SCREW, MACHINESCREW, MACHINE
-
120609-317 AXLE, LEVER, THROTTLEAXLE, LEVER, THROTTLE
-
130609-036 WASHERWASHER
-
140609-501 WASHER, SHOULDER, THROTTLEWASHER, SHOULDER, THROTTLE
-
150609-368 LEVER, THROTTLELEVER, THROTTLE
-
160609-040 RING, RETAININGRING, RETAINING
-
170705-387 HANDLEBAR ASSY.HANDLEBAR ASSY.
-
180605-556 END CAP, THROTTLE (RIGHT)END CAP, THROTTLE (RIGHT)
-
190605-557 END CAP, BRAKE (LEFT)END CAP, BRAKE (LEFT)
-
201606-442 GRIP, HANDLEBARGRIP, HANDLEBAR
-
210609-681 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
210609-722 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
220617-248 PAD, INNERSULATORPAD, INNERSULATOR
-
230609-680 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240623-262 CLIP, WIRECLIP, WIRE
-
250687-168 CABLE, THROTTLECABLE, THROTTLE
-
260123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
271639-963 KIT, THROTTLE CABLE TOOLKIT, THROTTLE CABLE TOOL
-
280705-905 WRAP, HANDLEBARWRAP, HANDLEBAR
