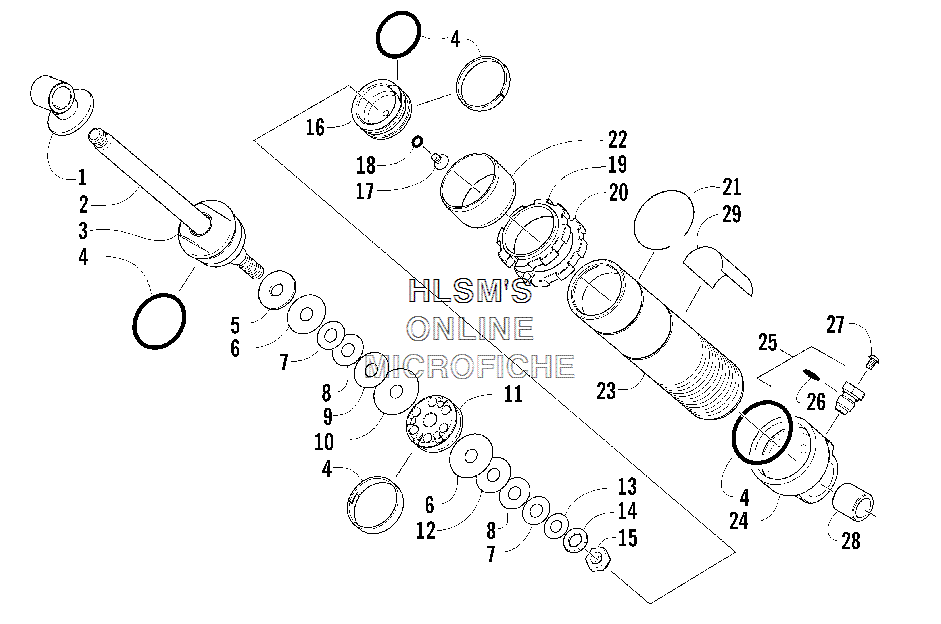

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat M7 EFI 162'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
10604-625 EYELET, SHOCKEYELET, SHOCK
-
22604-861 ROD, SHOCKROD, SHOCK
-
32604-812 CAP, SHOCKCAP, SHOCK
-
42604-815 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
50603-540 WASHER, TOP OUTWASHER, TOP OUT
-
60603-347 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
70603-338 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
80603-881 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
90603-882 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
100603-891 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
110603-206 PISTON, 0.059 IN., ORIFICEPISTON, 0.059 IN., ORIFICE
-
120603-344 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
130603-335 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
140603-389 WASHER, BACKUPWASHER, BACKUP
-
150603-301 NUT, CAP-FOX SHOCKNUT, CAP-FOX SHOCK
-
162604-816 PISTON, FLOATING, ASSY.PISTON, FLOATING, ASSY.
-
171604-316 SCREW, RELIEF (INC. 18)SCREW, RELIEF (INC. 18)
-
181604-425 O-RING (FOX ONLY)O-RING (FOX ONLY)
-
192604-840 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
202604-841 NUT, LOCKING, ADJUSTERNUT, LOCKING, ADJUSTER
-
212603-245 RETAINER, WEAR SLEEVERETAINER, WEAR SLEEVE
-
222603-246 SLEEVE, WEARSLEEVE, WEAR
-
232604-862 BODY, SHOCKBODY, SHOCK
-
242604-817 END CAP, SHOCKEND CAP, SHOCK
-
250703-341 VALVE, PRESSURE (INC. 26)VALVE, PRESSURE (INC. 26)
-
261604-318 O-RING-END CAP FITTING (FOX ONLY)O-RING-END CAP FITTING (FOX ONLY)
-
270624-097 SCREW, MACHINESCREW, MACHINE
-
282604-415 BUSHING, SHOCKBUSHING, SHOCK
-
292604-897 DECAL, SHOCKDECAL, SHOCK
-
292639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
