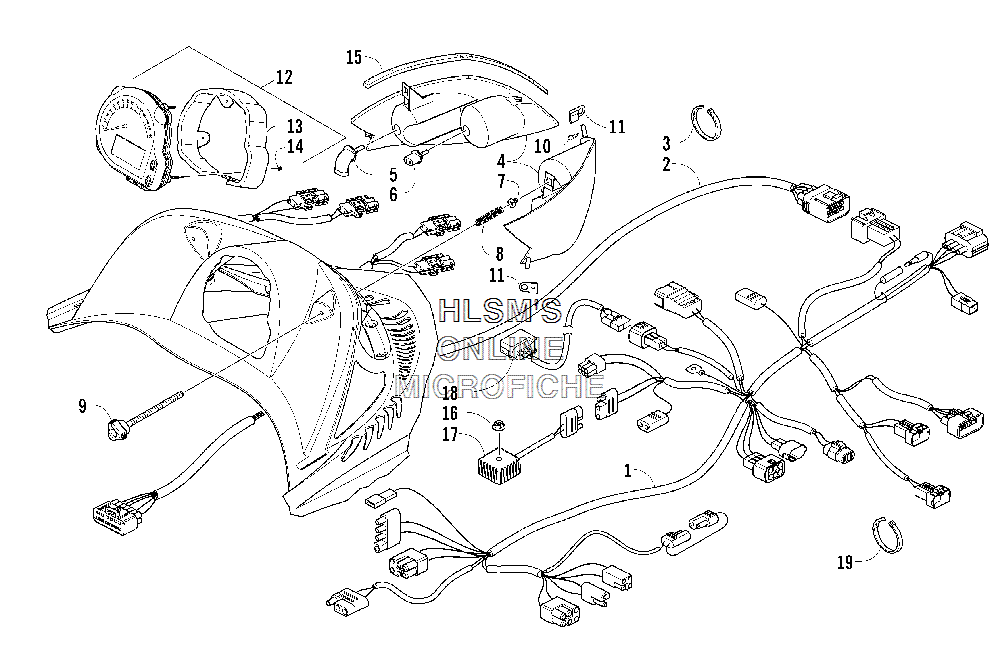

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat M7 EFI 162'' (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11686-281 HARNESS, MAINHARNESS, MAIN
-
21686-253 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-694 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5, 6)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5, 6)
-
40609-695 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5, 6)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5, 6)
-
50609-251 BULB, (GE 894) HEADLIGHT-HIGH BBULB, (GE 894) HEADLIGHT-HIGH B
-
60609-693 BULB, HEADLIGHT (2.93A) STRAIGHTBULB, HEADLIGHT (2.93A) STRAIGHT
-
71623-025 INSERTINSERT
-
80623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
101623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
111623-272 CLIP (RIGHT)CLIP (RIGHT)
-
111623-273 CLIP (LEFT)CLIP (LEFT)
-
120620-292 TACHOMETER/SPEEDOMETER (INC. 13, 14)TACHOMETER/SPEEDOMETER (INC. 13, 14)
-
130620-281 BRACKET, RETAININGBRACKET, RETAINING
-
140620-280 NUT W/WASHERNUT W/WASHER
-
150617-501 FOAM, HOOD/HEADLIGHTFOAM, HOOD/HEADLIGHT
-
168047-366 NUT, LOCKNUT, LOCK
-
170630-182 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
181686-003 HARNESS, EXTENSION, TAILLIGHTHARNESS, EXTENSION, TAILLIGHT
-
190123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
