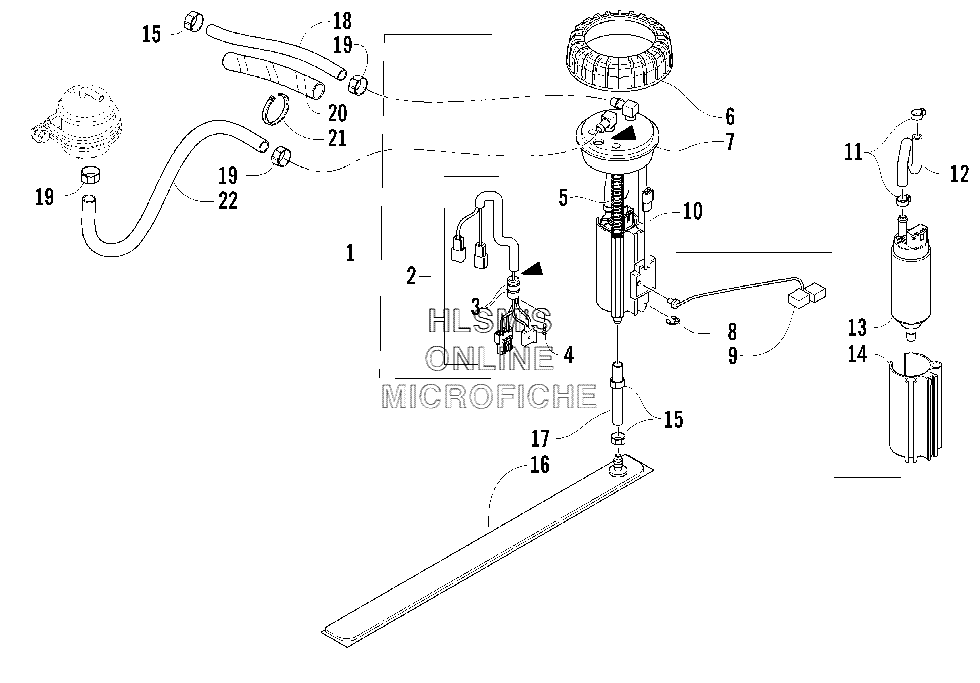

FUEL PUMP ASSEMBLY для Arctic Cat T660 TurboTourng LE (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11670-575 PUMP, FUEL, ASSY (INC. 2, 14)PUMP, FUEL, ASSY (INC. 2, 14)
-
21670-612 HARNESS, FUEL PUMP (INC. 3)HARNESS, FUEL PUMP (INC. 3)
-
30670-381 O-RINGO-RING
-
41670-412 SCREW, MACHINE, HARNESSSCREW, MACHINE, HARNESS
-
51670-156 SPRING, FUEL PUMP ASSYSPRING, FUEL PUMP ASSY
-
61670-119 NUT, RETAINING, FUEL PUMPNUT, RETAINING, FUEL PUMP
-
71670-118 SEAL, FUEL PUMP HOUSINGSEAL, FUEL PUMP HOUSING
-
81670-244 RING, RETAININGRING, RETAINING
-
90670-460 ARM, FLOATARM, FLOAT
-
101670-408 ELEMENT, FUEL SENSORELEMENT, FUEL SENSOR
-
111670-159 CLAMP, HOSECLAMP, HOSE
-
121670-521 HOSE, FUEL PUMP (TOP)HOSE, FUEL PUMP (TOP)
-
131670-531 PUMP, FUELPUMP, FUEL
-
141670-413 HOUSING, FUEL PUMPHOUSING, FUEL PUMP
-
150610-415 CLAMP, HOSECLAMP, HOSE
-
161670-525 PICKUP, FUELPICKUP, FUEL
-
170610-586 HOSE, GASLINEHOSE, GASLINE
-
180610-513 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
190610-419 CLAMP, HOSECLAMP, HOSE
-
200716-507 LOOM, PROTECTIVELOOM, PROTECTIVE
-
210123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
220610-075 HOSE, GASLINE (10 FT)HOSE, GASLINE (10 FT)
