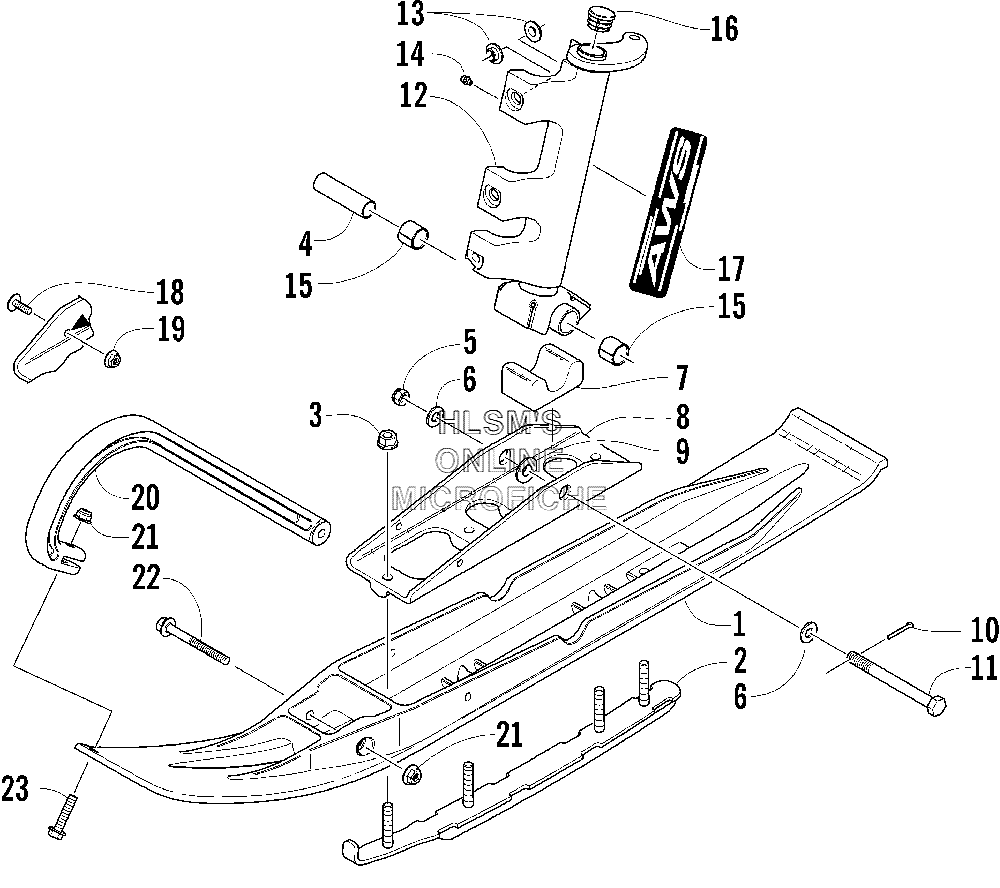

SKI AND SPINDLE ASSEMBLY для Arctic Cat T660 TurboTourng LE (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11703-109 SKI, PLASTICSKI, PLASTIC
-
21703-848 WEARBAR (RIGHT)WEARBAR (RIGHT)
-
21703-849 WEARBAR (LEFT)WEARBAR (LEFT)
-
38047-486 NUT, LOCKNUT, LOCK
-
42603-548 AXLE, SPINDLEAXLE, SPINDLE
-
50123-296 NUT, LOCKNUT, LOCK
-
60623-728 WASHERWASHER
-
70603-036 DAMPER, SKIDAMPER, SKI
-
81703-503 SADDLE, SKI (INC. 9)SADDLE, SKI (INC. 9)
-
90603-621 INSERT, SKI SADDLEINSERT, SKI SADDLE
-
100123-458 PIN, COTTERPIN, COTTER
-
110623-552 SCREW, CAPSCREW, CAP
-
122703-006 SPINDLE, STEERING (RIGHT) (INC. 13, 15)SPINDLE, STEERING (RIGHT) (INC. 13, 15)
-
122703-007 SPINDLE, STEERING (LEFT) (INC. 13, 15)SPINDLE, STEERING (LEFT) (INC. 13, 15)
-
130603-647 INSERT, SPINDLEINSERT, SPINDLE
-
140623-010 FITTING, GREASEFITTING, GREASE
-
150603-158 BEARINGBEARING
-
160623-831 CAP, SPINDLECAP, SPINDLE
-
176611-800 DECAL, "AWS", SPINDLE (RIGHT)DECAL, "AWS", SPINDLE (RIGHT)
-
176611-801 DECAL, "AWS", SPINDLE (LEFT)DECAL, "AWS", SPINDLE (LEFT)
-
188017-581 SCREW, MACHINESCREW, MACHINE
-
198048-366 NUT, LOCKNUT, LOCK
-
200603-624 HANDLE, PLASTICHANDLE, PLASTIC
-
218048-426 NUT, LOCKNUT, LOCK
-
228020-143 SCREW, CAPSCREW, CAP
-
238020-135 SCREW, CAPSCREW, CAP
