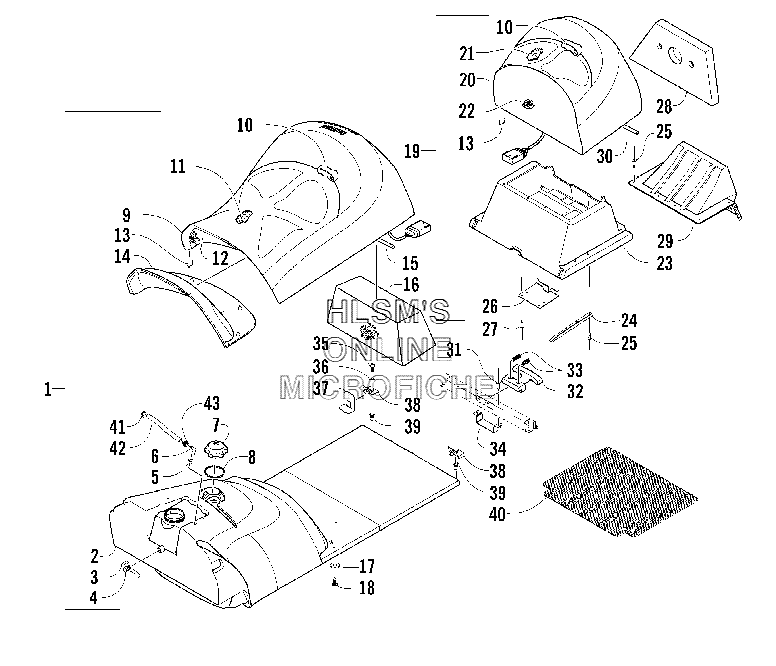

GAS TANK AND SEAT ASSEMBLY для Arctic Cat T660 TurboTourng LE (BLACK) - 2006 года выпуска
-
№АртикулНазвание
-
11718-977 COMPLETE SEAT ASSY (FRONT) (INC. 2, 9, ONE NO. 10, AND 11, 18)COMPLETE SEAT ASSY (FRONT) (INC. 2, 9, ONE NO. 10, AND 11, 18)
-
20770-589 TANK, GAS/SEAT, BASE (INC. 3, 8)TANK, GAS/SEAT, BASE (INC. 3, 8)
-
30670-289 TAPE, TEFLONTAPE, TEFLON
-
40670-243 PLUG, GAS TANKPLUG, GAS TANK
-
51670-494 VENT, GAS TANKVENT, GAS TANK
-
61670-325 GROMMETGROMMET
-
70670-341 CAP, GAS TANK (INC. 8)CAP, GAS TANK (INC. 8)
-
80109-733 SEAL, GAS TANK CAPSEAL, GAS TANK CAP
-
93706-109 COVER, SEAT (FRONT) (INC. ONE NO. 10)COVER, SEAT (FRONT) (INC. ONE NO. 10)
-
103606-363 WIRE, SEATWIRE, SEAT
-
110609-776 PAD, HEATER (FRONT)PAD, HEATER (FRONT)
-
123706-311 FOAM, SEAT CUSHION (FRONT)FOAM, SEAT CUSHION (FRONT)
-
130624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
141606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
152606-943 WIRE, SEATWIRE, SEAT
-
164606-232 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
178050-217 WASHERWASHER
-
180623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
197998-989 COMPLETE SEAT ASSY, PASSENGER (INC. 13, 20, 30, AND ONE NO. 10)COMPLETE SEAT ASSY, PASSENGER (INC. 13, 20, 30, AND ONE NO. 10)
-
203706-110 COVER, SEAT, PASSENGER (INC. ONE NO. 10)COVER, SEAT, PASSENGER (INC. ONE NO. 10)
-
210609-777 PAD, HEATER, PASSENGERPAD, HEATER, PASSENGER
-
223706-312 FOAM, SEAT, PASSENGERFOAM, SEAT, PASSENGER
-
232606-066 SEAT, BASE, PASSENGERSEAT, BASE, PASSENGER
-
242606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)BRACKET, HOLD, DOWN, SEAT (RIGHT)
-
242606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)BRACKET, HOLD, DOWN, SEAT (LEFT)
-
250623-853 RIVET, BLINDRIVET, BLIND
-
262606-161 PLATE, STRIKEPLATE, STRIKE
-
270623-778 RIVETRIVET
-
280617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
291606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
302606-942 WIRE, SEATWIRE, SEAT
-
318060-706 RIVETRIVET
-
322606-159 HANDLE, BACKREST, LATCHHANDLE, BACKREST, LATCH
-
332606-154 SPRING, COMPRESSIONSPRING, COMPRESSION
-
342706-130 BRACKET, RETAINER, LATCHBRACKET, RETAINER, LATCH
-
358017-580 SCREW, MACHINESCREW, MACHINE
-
368050-222 WASHERWASHER
-
372606-268 GUARD, SEAT (RIGHT)GUARD, SEAT (RIGHT)
-
372606-269 GUARD, SEAT (LEFT)GUARD, SEAT (LEFT)
-
382706-134 BRACKET, HOLD, RECEIVER (DOWN/RIGHT)BRACKET, HOLD, RECEIVER (DOWN/RIGHT)
-
382706-135 BRACKET, HOLD, RECEIVER (LEFT/DOWN)BRACKET, HOLD, RECEIVER (LEFT/DOWN)
-
390623-582 INSERTINSERT
-
402606-180 PAD, RUBBERPAD, RUBBER
-
410623-101 CLIP, ROUTING, SNAP (INNER)CLIP, ROUTING, SNAP (INNER)
-
426101-001 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
426101-009 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
431623-042 CLAMP, HOSECLAMP, HOSE
