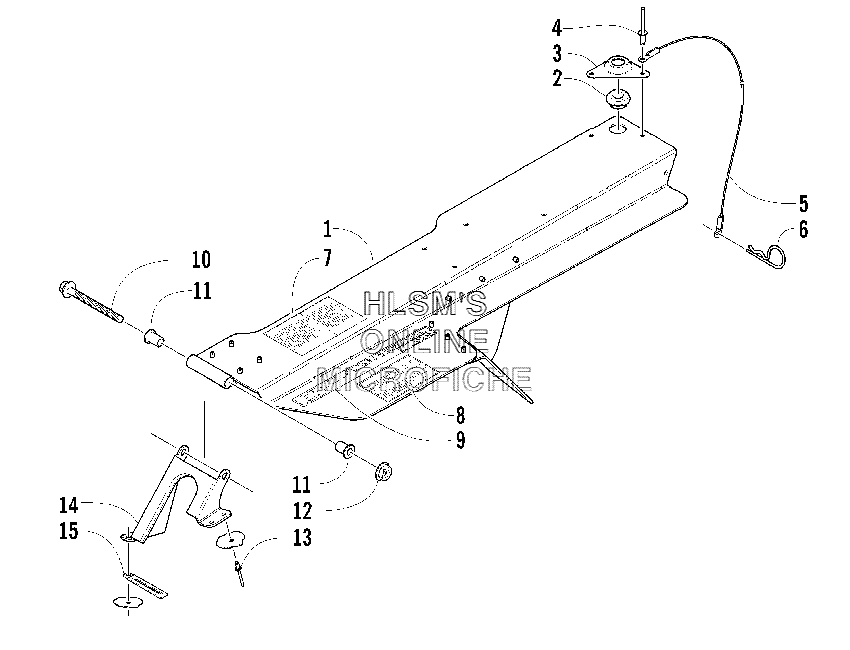

BELT GUARD ASSEMBLY для Arctic Cat Z 370 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
10707-480 BELT GUARD ASSEMBLY (INC. 2 6)BELT GUARD ASSEMBLY (INC. 2 6)
-
20607-549 BUSHING, BELT GUARDBUSHING, BELT GUARD
-
30607-550 PLATE, BUSHING BELT GUARDPLATE, BUSHING BELT GUARD
-
48060-504 RIVETRIVET
-
50607-447 CABLECABLE
-
60605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
71611-582 DECAL, CAUTION JETTING/STORAGEDECAL, CAUTION JETTING/STORAGE
-
81611-565 DECAL, WARNING BELT GUARDDECAL, WARNING BELT GUARD
-
93611-969 DECAL, ''ACT ROLLER DRIVEN CLUTCH''DECAL, ''ACT ROLLER DRIVEN CLUTCH''
-
108020-050 SCREW, CAPSCREW, CAP
-
110607-094 INSERT, HINGEINSERT, HINGE
-
128048-366 NUT, LOCKNUT, LOCK
-
138061-508 RIVETRIVET
-
140707-707 BRACKET, MOUNTING BELT GUARDBRACKET, MOUNTING BELT GUARD
-
153002-964 CLAMP, WIRECLAMP, WIRE
