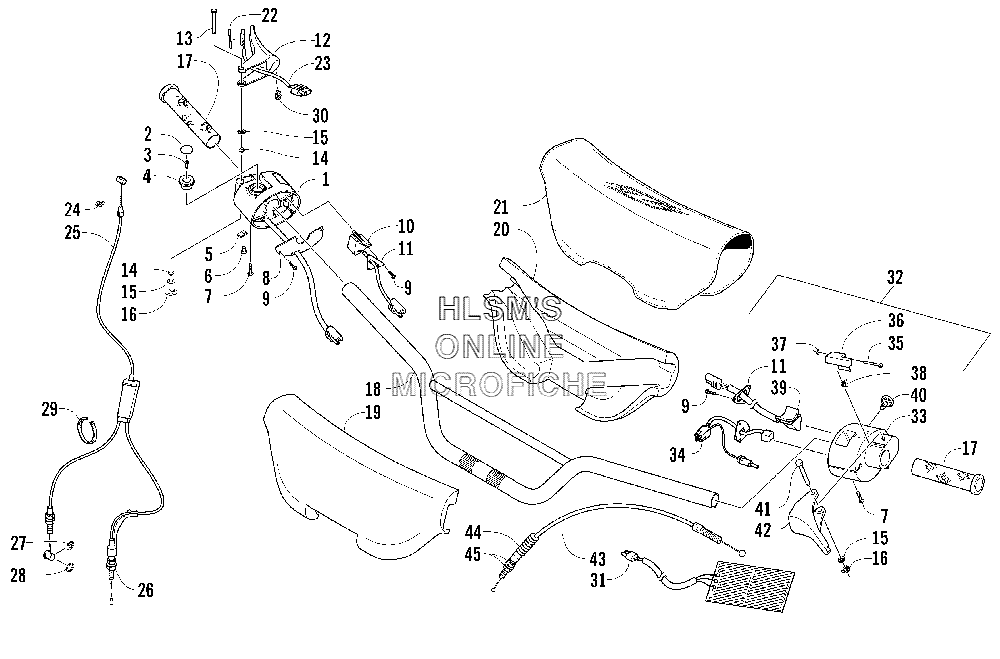

HANDLEBAR AND CONTROLS для Arctic Cat Z 370 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
10609-387 CONTROL, THROTTLE (INC. 2 6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)CONTROL, THROTTLE (INC. 2 6, ONE NO. 7, 8, EIGHT NO. 9, 10, AND ONE NO. 11)
-
20609-283 DECAL, MARK PLATEDECAL, MARK PLATE
-
30623-215 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
40609-282 KNOB, EMERGENCY STOPKNOB, EMERGENCY STOP
-
50609-319 CLAMP, HARNESS SINGLECLAMP, HARNESS SINGLE
-
60609-321 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
70609-085 SCREW, MACHINESCREW, MACHINE
-
80609-316 COVER, THROTTLE SWITCHCOVER, THROTTLE SWITCH
-
90609-312 SCREW, SELF TAPPINGSCREW, SELF TAPPING
-
100609-384 CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)CONTROL, THUMBWARMER (INC. ONE NO. 11 AND THREE NO. 9)
-
110609-378 PLATE, COVERPLATE, COVER
-
120609-257 LEVER, THROTTLELEVER, THROTTLE
-
130609-317 AXLE, LEVER THROTTLEAXLE, LEVER THROTTLE
-
140609-038 SEAL, THROTTLE LEVERSEAL, THROTTLE LEVER
-
150609-036 WASHERWASHER
-
160609-040 RING, RETAININGRING, RETAINING
-
172606-084 GRIP, HANDLEBARGRIP, HANDLEBAR
-
180705-360 HANDLEBARHANDLEBAR
-
190605-354 PAD, HANDLEBAR FRONTPAD, HANDLEBAR FRONT
-
200605-353 PAD, HANDLEBAR REARPAD, HANDLEBAR REAR
-
210605-683 WRAP, HANDLEBAR PADWRAP, HANDLEBAR PAD
-
220617-248 PAD, INSULATORPAD, INSULATOR
-
230609-685 ELEMENT, THUMBWARMERELEMENT, THUMBWARMER
-
240123-231 RING, RETAININGRING, RETAINING
-
250687-084 CABLE, THROTTLE (INC. 26)CABLE, THROTTLE (INC. 26)
-
260623-464 NUT, LOCKING THROTTLE CABLENUT, LOCKING THROTTLE CABLE
-
270124-057 E RINGE RING
-
280124-056 WASHERWASHER
-
290123-788 CABLE TIE (8 IN)CABLE TIE (8 IN)
-
300623-262 CLIP, WIRECLIP, WIRE
-
310609-684 ELEMENT, HANDWARMERELEMENT, HANDWARMER
-
320609-393 SWITCH, BRAKE ASSEMBLY (INC. ONE NO. 7, SEVEN NO. 9, ONE NO. 11, AND 33 40)SWITCH, BRAKE ASSEMBLY (INC. ONE NO. 7, SEVEN NO. 9, ONE NO. 11, AND 33 40)
-
330609-478 HOUSING, BRAKE SWITCH (ON/OFF)HOUSING, BRAKE SWITCH (ON/OFF)
-
340609-452 SWITCH, DIMMER BRAKESWITCH, DIMMER BRAKE
-
350609-050 PIN, ACTUATORPIN, ACTUATOR
-
360609-314 ACTUATOR, BRAKE PARKINGACTUATOR, BRAKE PARKING
-
370609-051 RING, RETAININGRING, RETAINING
-
380609-313 SPRING, ACTUATORSPRING, ACTUATOR
-
390609-385 CONTROL, HANDWARMER (INC. THREE NO. 9 AND ONE NO. 11)CONTROL, HANDWARMER (INC. THREE NO. 9 AND ONE NO. 11)
-
400609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
410609-315 AXLE, LEVER BRAKEAXLE, LEVER BRAKE
-
420609-266 LEVER, BRAKELEVER, BRAKE
-
430687-089 CABLE, BRAKECABLE, BRAKE
-
440109-194 SPRING, BRAKE CABLESPRING, BRAKE CABLE
-
450123-406 NUT, FLANGENUT, FLANGE
