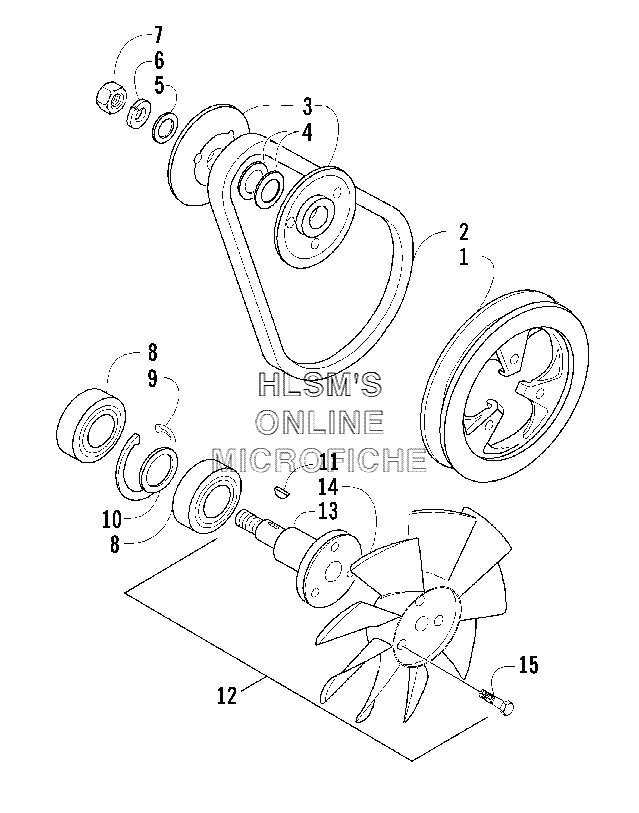

COOLING FAN для Arctic Cat Z 370 (GREEN) - 2006 года выпуска
-
№АртикулНазвание
-
13005-702 PULLEY, DRIVE (LOW SPEED)PULLEY, DRIVE (LOW SPEED)
-
13005-743 PULLEY, DRIVE (HIGH SPEED)PULLEY, DRIVE (HIGH SPEED)
-
23002-854 BELT (LOW SPEED)BELT (LOW SPEED)
-
23002-156 BELT (HIGH SPEED)BELT (HIGH SPEED)
-
33002-782 PULLEY HALFPULLEY HALF
-
43002-728 SHIMSHIM
-
53004-571 WASHERWASHER
-
63004-362 WASHER, LOCKWASHER, LOCK
-
73004-989 NUTNUT
-
83002-750 BEARINGBEARING
-
93004-479 CIRCLIPCIRCLIP
-
103005-374 SPACERSPACER
-
113000-266 KEYKEY
-
123003-285 FAN ASSEMBLY, COOLING (INC. 13 15)FAN ASSEMBLY, COOLING (INC. 13 15)
-
133003-009 SHAFTSHAFT
-
143003-008 FANFAN
-
153005-180 BOLTBOLT
