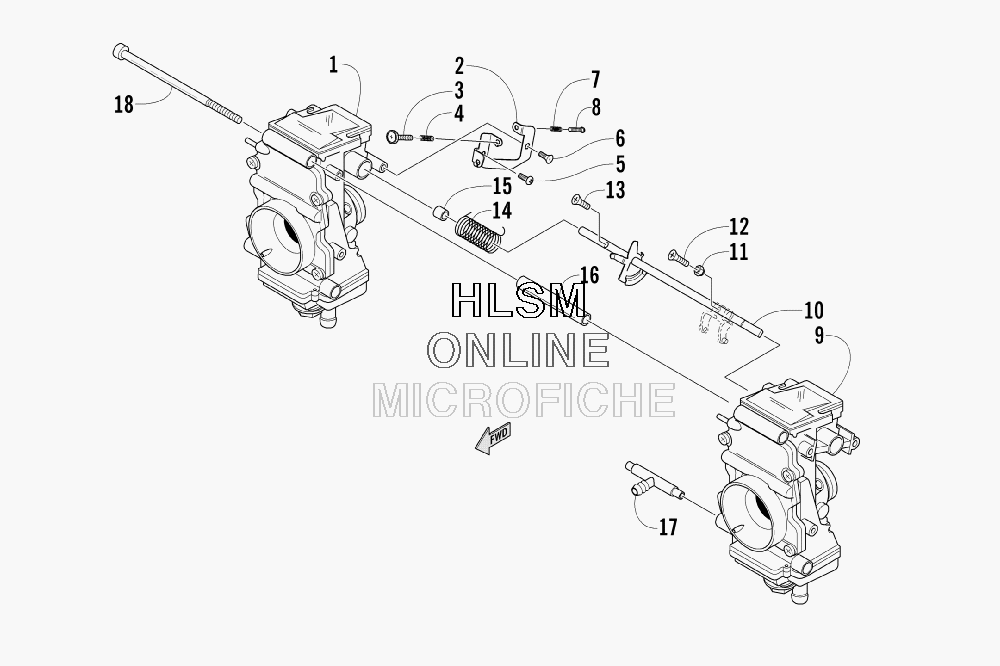

CARBURETOR - EXTERNAL PARTS для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
1670-915 COMPLETE CARBURETOR - TM40-B367COMPLETE CARBURETOR - TM40-B367
-
26506-331 BRACKETBRACKET
-
36506-061 SCREW, IDLE SPEEDSCREW, IDLE SPEED
-
46506-062 SPRINGSPRING
-
56506-064 SCREWSCREW
-
66506-063 SCREWSCREW
-
76506-056 SPRINGSPRING
-
86506-134 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
106506-409 SHAFT, THROTTLE LEVER - ASSEMBLYSHAFT, THROTTLE LEVER - ASSEMBLY
-
116506-041 RING, LEVERRING, LEVER
-
126506-042 SCREW, LEVER RINGSCREW, LEVER RING
-
136506-046 SCREWSCREW
-
146506-330 SPRING, THROTTLESPRING, THROTTLE
-
156506-048 SPACERSPACER
-
166506-044 SPACERSPACER
-
176506-140 T-FITTINGT-FITTING
-
186506-065 BOLTBOLT
