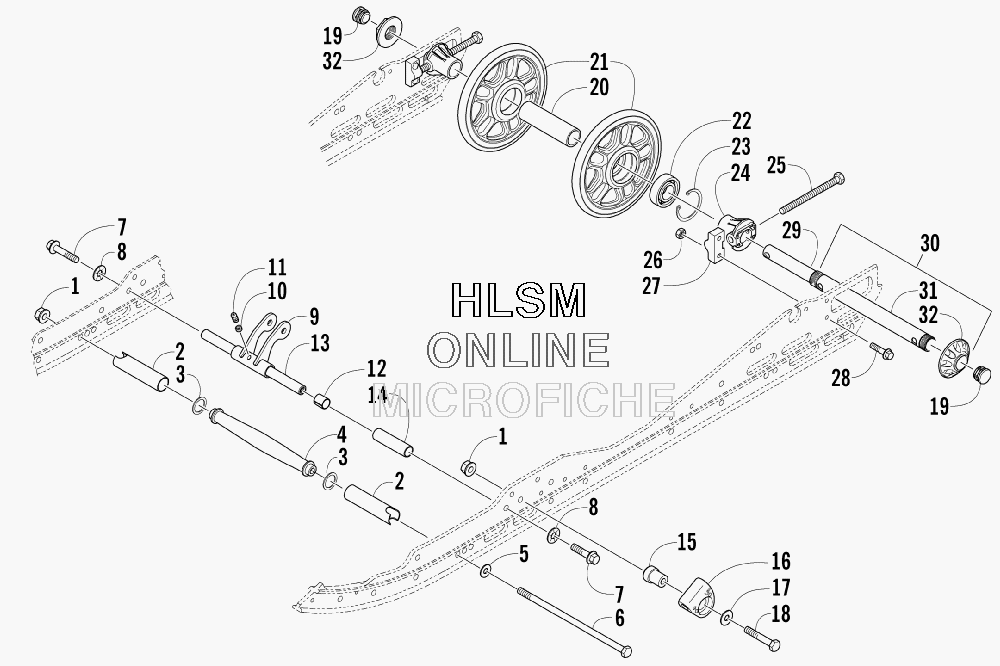

IDLER WHEEL ASSEMBLY для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
18047-486 NUT, LOCKNUT, LOCK
-
22604-401 SPACERSPACER
-
31623-117 WASHERWASHER
-
42604-867 AXLE, STEELAXLE, STEEL
-
50623-044 WASHERWASHER
-
60623-907 SCREW, CAPSCREW, CAP
-
71623-536 SCREW, CAPSCREW, CAP
-
81623-218 WASHER, LOCKWASHER, LOCK
-
91704-630 PIVOT, SHOCK (INC. 10-12)PIVOT, SHOCK (INC. 10-12)
-
101623-011 ...WASHER, GREASE FITTING...WASHER, GREASE FITTING
-
111623-010 ...FITTING, GREASE...FITTING, GREASE
-
120603-083 ...BEARING...BEARING
-
130604-930 AXLE, ALUMINUMAXLE, ALUMINUM
-
142604-109 SPACERSPACER
-
152604-378 BLOCK, SLIDEBLOCK, SLIDE
-
162604-515 SLIDE, SPRINGSLIDE, SPRING
-
178050-282 WASHERWASHER
-
188002-229 SCREW, CAPSCREW, CAP
-
190623-831 CAPCAP
-
202604-115 SPACERSPACER
-
213604-185 WHEEL, IDLER (INC. 22-23)WHEEL, IDLER (INC. 22-23)
-
220107-598 ...BEARING...BEARING
-
231623-622 ...RING, RETAINING...RING, RETAINING
-
242604-970 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
251623-414 SCREW, CAPSCREW, CAP
-
268040-366 NUT, HEXNUT, HEX
-
271704-379 ADJUSTER, TRACKADJUSTER, TRACK
-
281623-539 SCREW, CAPSCREW, CAP
-
292604-915 INSERT, AXLEINSERT, AXLE
-
301704-435 AXLE, REAR - LEFT (INC. 31 AND ONE NO. 32)AXLE, REAR - LEFT (INC. 31 AND ONE NO. 32)
-
311704-421 ...AXLE, REAR...AXLE, REAR
-
322604-914 ...NUT, AXLE...NUT, AXLE
