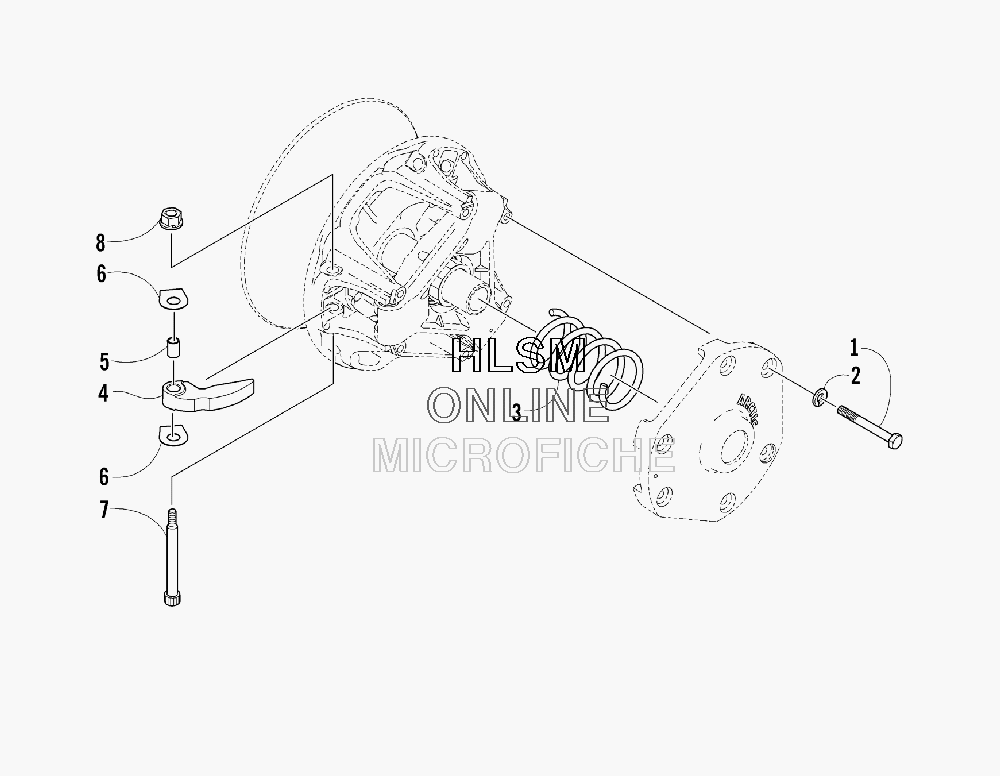

DRIVE CLUTCH для Arctic Cat AC 600 MODIFIED SNO PRO (GREEN) - 2007 года выпуска
-
№АртикулНазвание
-
0746-413 COMPLETE UNCALIBRATED DRIVE CLUTCHCOMPLETE UNCALIBRATED DRIVE CLUTCH
-
1639-030 CAM ARM PIN KIT (INC. 5-8)CAM ARM PIN KIT (INC. 5-8)
-
11623-442 SCREW, MACHINESCREW, MACHINE
-
28051-212 WASHER, LOCKWASHER, LOCK
-
30646-400 SPRING, DRIVE CLUTCH - BLUE - TITANIUMSPRING, DRIVE CLUTCH - BLUE - TITANIUM
-
40746-414 ARM, CAM (INC. 5)ARM, CAM (INC. 5)
-
50646-160 ...BEARING, CAM ARM...BEARING, CAM ARM
-
60646-101 WASHER, CAM ARMWASHER, CAM ARM
-
70646-295 PIN, CAM ARMPIN, CAM ARM
-
80623-392 NUT, LOCKNUT, LOCK
