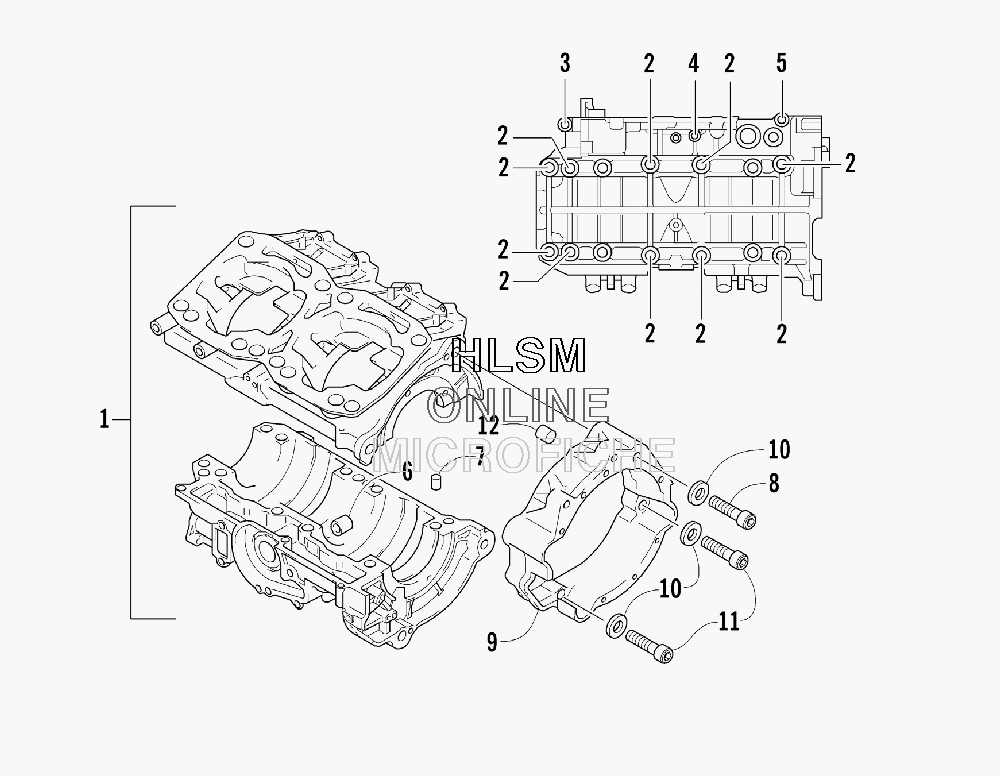

CRANKCASE ASSEMBLY для Arctic Cat CROSSFIRE 600 EFI (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
13007-430 CRANKCASE (INC. 2-7)CRANKCASE (INC. 2-7)
-
23006-488 ...BOLT...BOLT
-
33007-380 ...BOLT...BOLT
-
43006-650 ...BOLT...BOLT
-
53007-434 ...BOLT...BOLT
-
63003-647 ...BUSHING...BUSHING
-
73005-206 ...PIN, DOWEL...PIN, DOWEL
-
83007-436 BOLTBOLT
-
93006-967 CASE, MAGNETOCASE, MAGNETO
-
103007-024 WASHERWASHER
-
113007-435 BOLTBOLT
-
123006-547 PIN, DOWELPIN, DOWEL
