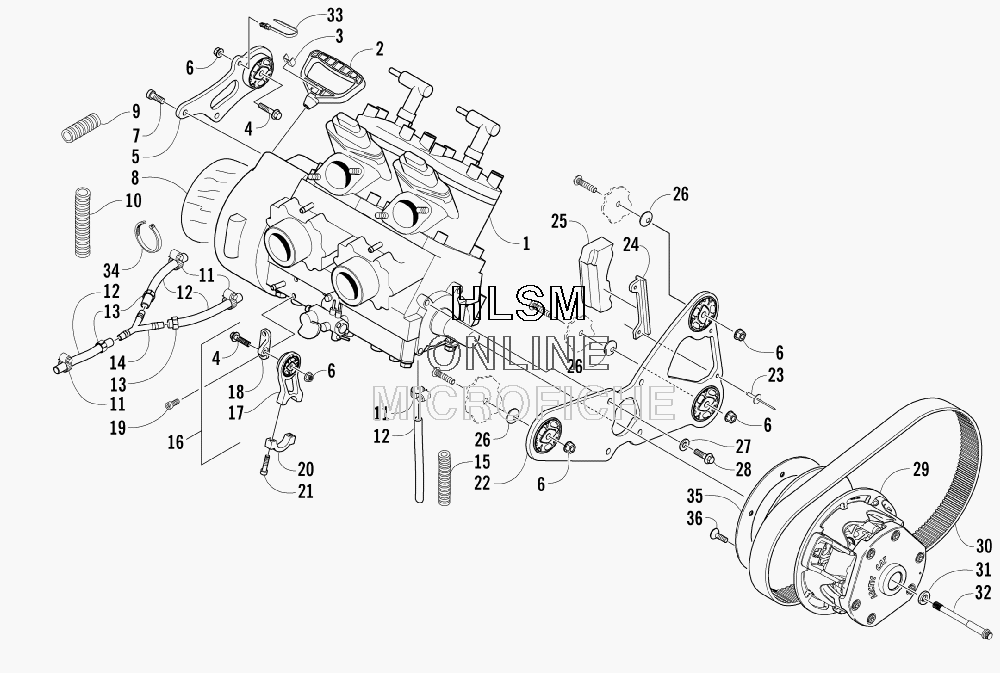

ENGINE AND RELATED PARTS для Arctic Cat CROSSFIRE 600 EFI (ORANGE) - 2007 года выпуска
-
№АртикулНазвание
-
10662-471 ENGINE, AJ60L4 W/O EFI COMPONENTSENGINE, AJ60L4 W/O EFI COMPONENTS
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
48020-136 SCREW, CAPSCREW, CAP
-
50708-498 BRACKET, ENGINE MOUNTING - REAR - RIGHTBRACKET, ENGINE MOUNTING - REAR - RIGHT
-
68047-426 NUT, LOCKNUT, LOCK
-
71623-568 SCREW, CAPSCREW, CAP
-
81670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
90619-619 CONDUIT, FLEXIBLE - 4 IN.CONDUIT, FLEXIBLE - 4 IN.
-
100619-994 CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.CONDUIT, FLEXIBLE (3/4 IN. ID) - 6 IN.
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
120610-076 HOSE, COOLANT - 10 FTHOSE, COOLANT - 10 FT
-
130610-581 CLAMP, HOSECLAMP, HOSE
-
141670-596 Y-FITTINGY-FITTING
-
150619-776 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
160708-523 BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 17-18)BRACKET, ENGINE MOUNTING - ASSEMBLY (INC. ONE NO. 4, ONE NO. 6, AND 17-18)
-
170708-519 ...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT...BRACKET, ENGINE MOUNTING - FRONT - LOWER RIGHT
-
180608-549 ...BRACKET, ENGINE MOUNTING - UPPER RIGHT...BRACKET, ENGINE MOUNTING - UPPER RIGHT
-
191623-504 SCREW, CAPSCREW, CAP
-
200608-467 CAP, MOUNTING BRACKET - ENGINECAP, MOUNTING BRACKET - ENGINE
-
211623-603 SCREW, CAPSCREW, CAP
-
220708-497 BRACKET, ENGINE MOUNTING - LEFT (INC. 23-24)BRACKET, ENGINE MOUNTING - LEFT (INC. 23-24)
-
238060-730 ...RIVET...RIVET
-
240608-565 ...PLATE, BACKING - TORQUE BUMPER...PLATE, BACKING - TORQUE BUMPER
-
250608-462 BUMPER, TORQUEBUMPER, TORQUE
-
260623-987 WASHERWASHER
-
278050-252 WASHERWASHER
-
281623-565 SCREW, CAPSCREW, CAP
-
290746-416 CLUTCH, DRIVE - UNCALIBRATEDCLUTCH, DRIVE - UNCALIBRATED
-
300627-046 BELT, DRIVEBELT, DRIVE
-
310623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
320623-804 BOLT, CLUTCHBOLT, CLUTCH
-
330623-677 CABLE TIE, PUSH-MOUNTCABLE TIE, PUSH-MOUNT
-
340123-788 CABLE TIECABLE TIE
-
350645-410 RING, DAMPERRING, DAMPER
-
361623-128 SCREW, MACHINESCREW, MACHINE
