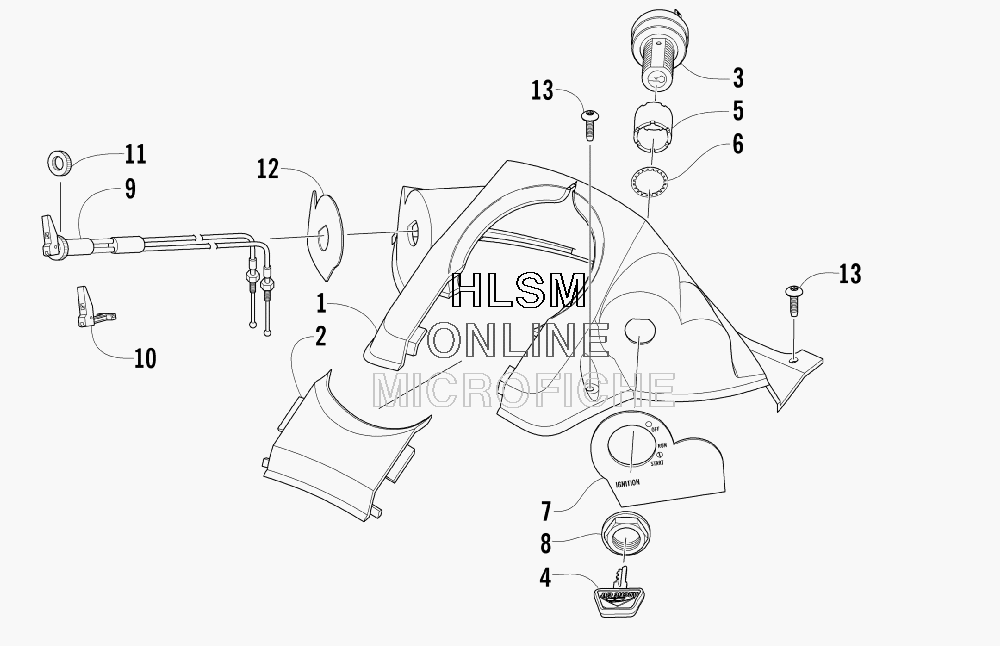

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Z 570 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
11606-735 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-449 SWITCH, IGNITION (INC. 4) (LX)SWITCH, IGNITION (INC. 4) (LX)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK - INTERNAL TOOTHWASHER, LOCK - INTERNAL TOOTH
-
72611-678 DECAL, CONSOLE - RIGHTDECAL, CONSOLE - RIGHT
-
72611-744 DECAL, CONSOLE - RIGHT (LX)DECAL, CONSOLE - RIGHT (LX)
-
80609-113 NUT, RETAINING - PLASTICNUT, RETAINING - PLASTIC
-
90687-007 CABLE, CHOKE (INC. 10-11)CABLE, CHOKE (INC. 10-11)
-
100636-062 ...CHOKE LEVER KIT...CHOKE LEVER KIT
-
110623-054 ...NUT, CHOKE...NUT, CHOKE
-
122611-867 DECAL, CONSOLE - LEFTDECAL, CONSOLE - LEFT
-
131623-175 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
