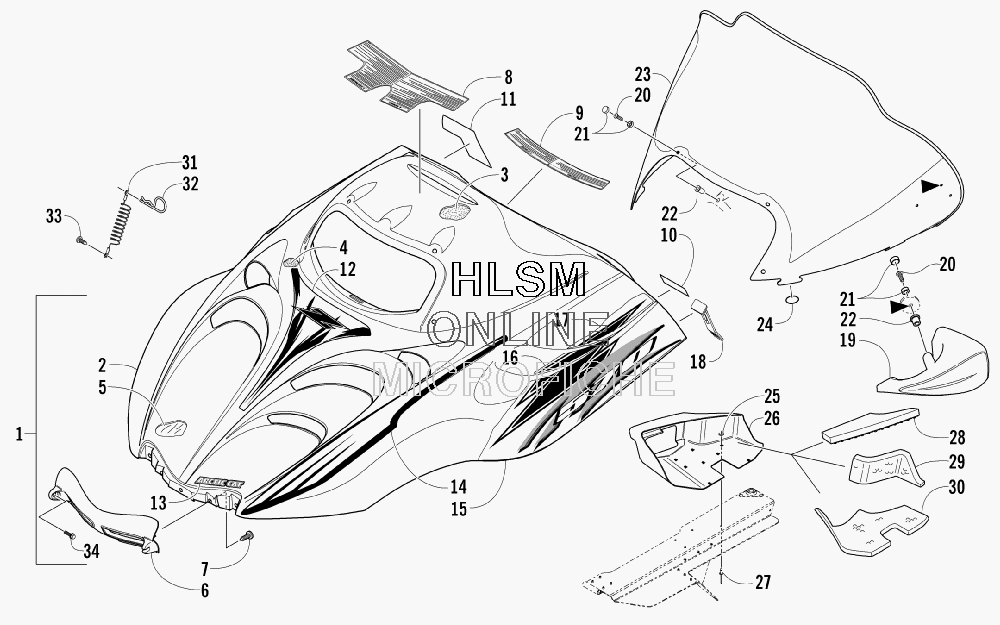

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat Z 570 (ORANGE LX) - 2007 года выпуска
-
№АртикулНазвание
-
11718-995 HOOD W/DECALS - ORANGE (INC. 2-17) (LX)HOOD W/DECALS - ORANGE (INC. 2-17) (LX)
-
22718-036 ...HOOD W/O DECALS - ORANGE (INC. 3-11) (LX)...HOOD W/O DECALS - ORANGE (INC. 3-11) (LX)
-
30617-478 ......FOAM, HOOD - UPPER MIDDLE - RIGHT......FOAM, HOOD - UPPER MIDDLE - RIGHT
-
30617-479 ......FOAM, HOOD - UPPER MIDDLE - LEFT......FOAM, HOOD - UPPER MIDDLE - LEFT
-
40617-475 ......FOAM, HOOD - MIDDLE......FOAM, HOOD - MIDDLE
-
51606-938 ......FOIL, HOOD - RIGHT......FOIL, HOOD - RIGHT
-
51606-939 ......FOIL, HOOD - LEFT......FOIL, HOOD - LEFT
-
61606-720 ......HINGE, HOOD......HINGE, HOOD
-
70623-797 ......SCREW, SELF-TAPPING......SCREW, SELF-TAPPING
-
83611-485 ......DECAL, WARNING - GENERAL AND BRAKE......DECAL, WARNING - GENERAL AND BRAKE
-
93611-970 ......DECAL, CAUTION - ENGINE/BATTERY/FUEL......DECAL, CAUTION - ENGINE/BATTERY/FUEL
-
103611-509 ......DECAL, WARNING - SEATING CAPACITY......DECAL, WARNING - SEATING CAPACITY
-
113611-580 ......DECAL, REVERSE (LX)......DECAL, REVERSE (LX)
-
127611-322 ...DECAL, HOOD - CREST...DECAL, HOOD - CREST
-
137611-323 ...DECAL, "ARCTIC CAT" - HOOD...DECAL, "ARCTIC CAT" - HOOD
-
147611-320 ...DECAL, HOOD - FORWARD RIGHT...DECAL, HOOD - FORWARD RIGHT
-
147611-321 ...DECAL, HOOD - FORWARD LEFT...DECAL, HOOD - FORWARD LEFT
-
157611-324 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
157611-325 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
167611-318 ...DECAL, HOOD - VENT - CENTER RIGHT...DECAL, HOOD - VENT - CENTER RIGHT
-
167611-319 ...DECAL, HOOD - VENT - CENTER LEFT...DECAL, HOOD - VENT - CENTER LEFT
-
177611-316 ...DECAL, HOOD - VENT - UPPER RIGHT...DECAL, HOOD - VENT - UPPER RIGHT
-
177611-317 ...DECAL, HOOD - VENT - UPPER LEFT...DECAL, HOOD - VENT - UPPER LEFT
-
181606-067 STRAP, HOLD-DOWNSTRAP, HOLD-DOWN
-
192639-477 KIT, MIRROR (INC. SIX NO. 20-22) (LX)KIT, MIRROR (INC. SIX NO. 20-22) (LX)
-
200623-902 SCREW, MACHINE (LX)SCREW, MACHINE (LX)
-
210124-054 SNAP CAP W/WASHER (LX)SNAP CAP W/WASHER (LX)
-
220623-845 NUT, EXPANSION (LX)NUT, EXPANSION (LX)
-
234606-403 WINDSHIELD (LX)WINDSHIELD (LX)
-
240616-032 O-RINGO-RING
-
250123-802 WASHERWASHER
-
262606-370 DUCT, AIR-OUTDUCT, AIR-OUT
-
278060-508 RIVETRIVET
-
280617-427 FOAM, AIR-OUT DUCT - TOPFOAM, AIR-OUT DUCT - TOP
-
290617-428 FOAM, AIR-OUT DUCT - SIDEFOAM, AIR-OUT DUCT - SIDE
-
300617-425 FOAM, AIR-OUT DUCT - BOTTOMFOAM, AIR-OUT DUCT - BOTTOM
-
312606-247 CABLE, HOODCABLE, HOOD
-
320623-805 CLIP, HAIRPINCLIP, HAIRPIN
-
330623-057 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
341623-016 SCREW, MACHINESCREW, MACHINE
