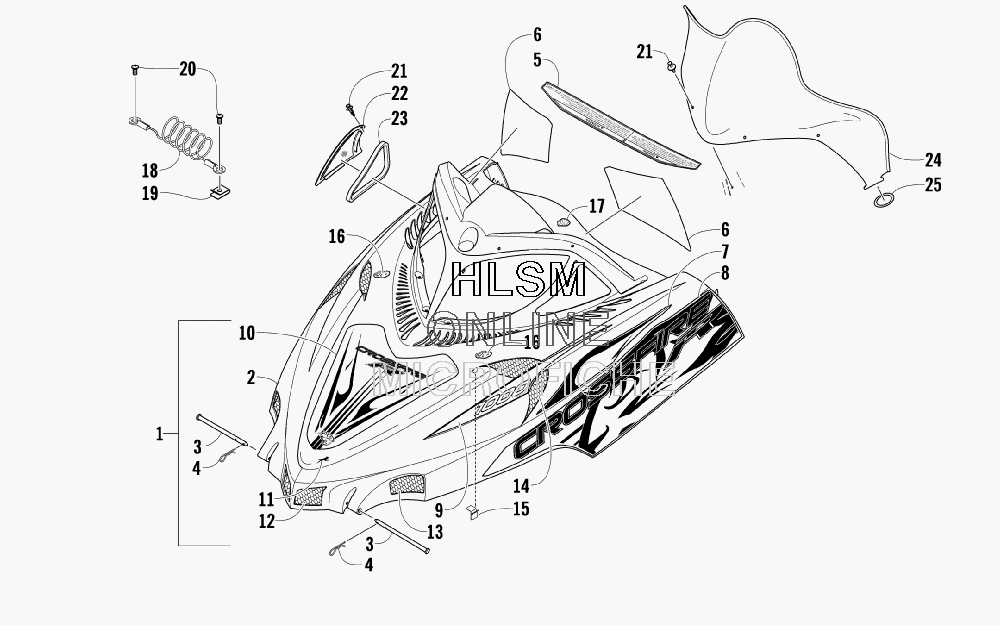

HOOD AND WINDSHIELD ASSEMBLY для Arctic Cat AC CROSSFIRE 1000 EFI - 2009 года выпуска
-
№АртикулНазвание
-
12718-714 HOOD W/DECALS - BLACK (INC. 2-11)HOOD W/DECALS - BLACK (INC. 2-11)
-
12718-722 HOOD W/DECALS - ORANGE (INC. 2-11)HOOD W/DECALS - ORANGE (INC. 2-11)
-
22718-146 ...HOOD W/O DECALS - BLACK (INC. 3-6)...HOOD W/O DECALS - BLACK (INC. 3-6)
-
22718-147 ...HOOD W/O DECALS - ORANGE (INC. 3-6)...HOOD W/O DECALS - ORANGE (INC. 3-6)
-
31623-026 ......PIN, CLEVIS......PIN, CLEVIS
-
40623-847 ......CLIP, HAIRPIN......CLIP, HAIRPIN
-
56611-143 ......DECAL, CAUTION......DECAL, CAUTION
-
66611-144 ......DECAL, WARNING - ENGLISH......DECAL, WARNING - ENGLISH
-
66611-145 ......DECAL, WARNING - FRENCH......DECAL, WARNING - FRENCH
-
78611-646 ...DECAL, HOOD - UPPER RIGHT...DECAL, HOOD - UPPER RIGHT
-
78611-647 ...DECAL, HOOD - UPPER LEFT...DECAL, HOOD - UPPER LEFT
-
78611-658 ...DECAL, HOOD - UPPER RIGHT (ORANGE)...DECAL, HOOD - UPPER RIGHT (ORANGE)
-
78611-659 ...DECAL, HOOD - UPPER LEFT (ORANGE)...DECAL, HOOD - UPPER LEFT (ORANGE)
-
88611-648 ...DECAL, HOOD - LOWER RIGHT...DECAL, HOOD - LOWER RIGHT
-
88611-649 ...DECAL, HOOD - LOWER LEFT...DECAL, HOOD - LOWER LEFT
-
88611-660 ...DECAL, HOOD - LOWER RIGHT (ORANGE)...DECAL, HOOD - LOWER RIGHT (ORANGE)
-
88611-661 ...DECAL, HOOD - LOWER LEFT (ORANGE)...DECAL, HOOD - LOWER LEFT (ORANGE)
-
98611-638 ...DECAL, HOOD - FORWARD RIGHT GREEN...DECAL, HOOD - FORWARD RIGHT GREEN
-
98611-639 ...DECAL, HOOD - FORWARD LEFT GREEN...DECAL, HOOD - FORWARD LEFT GREEN
-
98611-656 ...DECAL, HOOD - FORWARD RIGHT (ORANGE)...DECAL, HOOD - FORWARD RIGHT (ORANGE)
-
98611-657 ...DECAL, HOOD - FORWARD LEFT (ORANGE)...DECAL, HOOD - FORWARD LEFT (ORANGE)
-
108611-640 ...DECAL, HOOD - CREST GREEN...DECAL, HOOD - CREST GREEN
-
108611-643 ...DECAL, HOOD - CREST (ORANGE)...DECAL, HOOD - CREST (ORANGE)
-
118611-267 ...DECAL, AIRCAT - CHROME...DECAL, AIRCAT - CHROME
-
122706-793 SCREEN, VENT - CENTERSCREEN, VENT - CENTER
-
133706-260 SCREEN, VENT - FRONT - RIGHTSCREEN, VENT - FRONT - RIGHT
-
133706-261 SCREEN, VENT - FRONT - LEFTSCREEN, VENT - FRONT - LEFT
-
142706-796 SCREEN, VENT - REAR - RIGHTSCREEN, VENT - REAR - RIGHT
-
142706-797 SCREEN, VENT - REAR - LEFTSCREEN, VENT - REAR - LEFT
-
151623-694 CLIP, RETAININGCLIP, RETAINING
-
160617-510 FOAM, HOOD - RIGHTFOAM, HOOD - RIGHT
-
160617-545 FOAM, HOOD - LEFTFOAM, HOOD - LEFT
-
170617-489 FOAM, HOOD - REARFOAM, HOOD - REAR
-
182606-726 CABLE, HOODCABLE, HOOD
-
191623-052 CLIP, U-NUTCLIP, U-NUT
-
200623-302 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
210623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
225606-080 BEZEL, INTAKE - RIGHTBEZEL, INTAKE - RIGHT
-
225606-081 BEZEL, INTAKE - LEFTBEZEL, INTAKE - LEFT
-
230617-486 FOAM, INTAKE BEZEL - RIGHTFOAM, INTAKE BEZEL - RIGHT
-
230617-487 FOAM, INTAKE BEZEL - LEFTFOAM, INTAKE BEZEL - LEFT
-
245606-804 WINDSHIELDWINDSHIELD
-
250616-032 O-RINGO-RING
