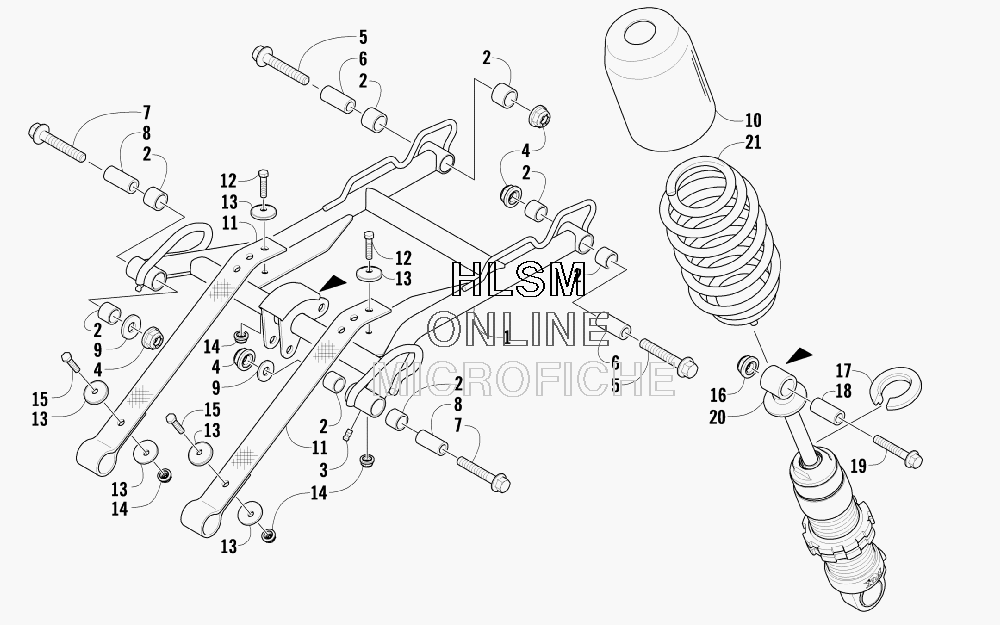

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat AC CROSSFIRE 1000 EFI - 2009 года выпуска
-
№АртикулНазвание
-
11704-401 ARM, FRONT SUSPENSION (INC. 2-3)ARM, FRONT SUSPENSION (INC. 2-3)
-
20604-889 ...BUSHING...BUSHING
-
31623-010 ...FITTING, GREASE...FITTING, GREASE
-
48047-486 NUT, LOCKNUT, LOCK
-
58020-228 SCREW, CAPSCREW, CAP
-
60104-629 SPACERSPACER
-
78020-229 SCREW, CAPSCREW, CAP
-
81604-162 AXLEAXLE
-
90114-197 WASHERWASHER
-
100604-790 COVER, SHOCKCOVER, SHOCK
-
113604-403 STRAP, LIMITERSTRAP, LIMITER
-
128002-041 SCREW, CAPSCREW, CAP
-
130623-875 WASHERWASHER
-
148047-366 NUT, LOCKNUT, LOCK
-
158002-045 SCREW, CAPSCREW, CAP
-
168041-486 NUT, LOCKNUT, LOCK
-
173604-200 RETAINER, SPRINGRETAINER, SPRING
-
181603-531 AXLE, SHOCKAXLE, SHOCK
-
198020-226 SCREW, CAPSCREW, CAP
-
201704-806 SHOCK ABSORBERSHOCK ABSORBER
-
211704-736 SPRING, COMPRESSION - BLACKSPRING, COMPRESSION - BLACK
