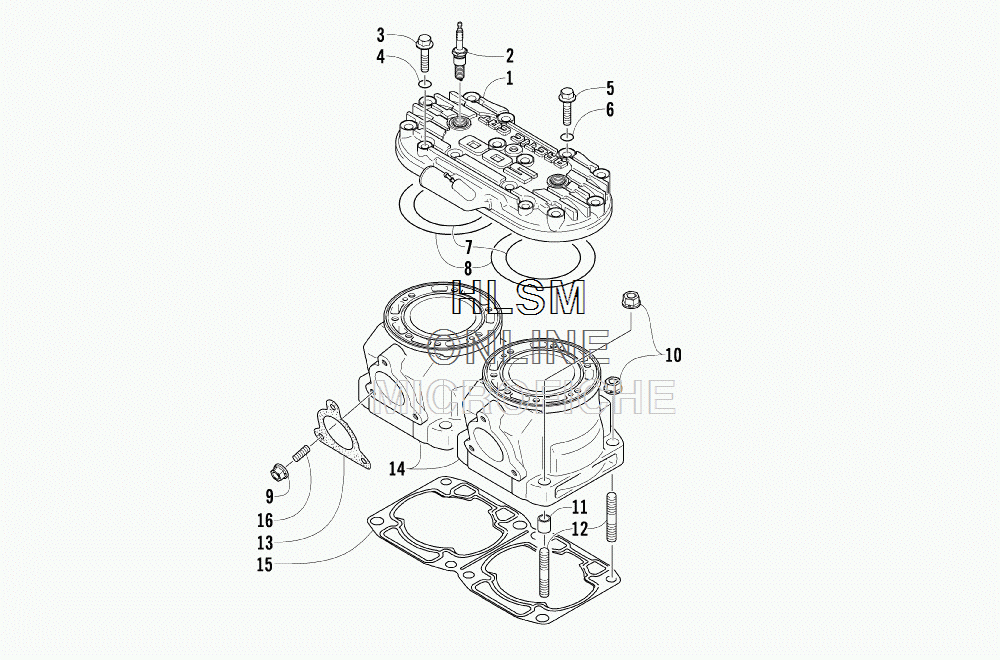

CYLINDER AND HEAD ASSEMBLY для Arctic Cat Sno Pro 500 - GREEN [S2014ACCPRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
13007-611 HEAD, CYLINDERHEAD, CYLINDER
-
20217-709 PLUG, SPARK (BR9EYA)PLUG, SPARK (BR9EYA)
-
33006-419 SCREW, CAPSCREW, CAP
-
43006-420 O-RINGO-RING
-
53007-460 SCREW, CAPSCREW, CAP
-
63003-227 O-RINGO-RING
-
73003-224 O-RINGO-RING
-
83003-226 O-RINGO-RING
-
93007-390 NUTNUT
-
103007-391 NUTNUT
-
113004-975 PIN, DOWELPIN, DOWEL
-
123006-743 BOLT, STUDBOLT, STUD
-
133006-748 GASKET, EXHAUSTGASKET, EXHAUST
-
143006-745 CYLINDERCYLINDER
-
153006-423 GASKET, CYLINDERGASKET, CYLINDER
-
163007-415 BOLT, STUDBOLT, STUD
