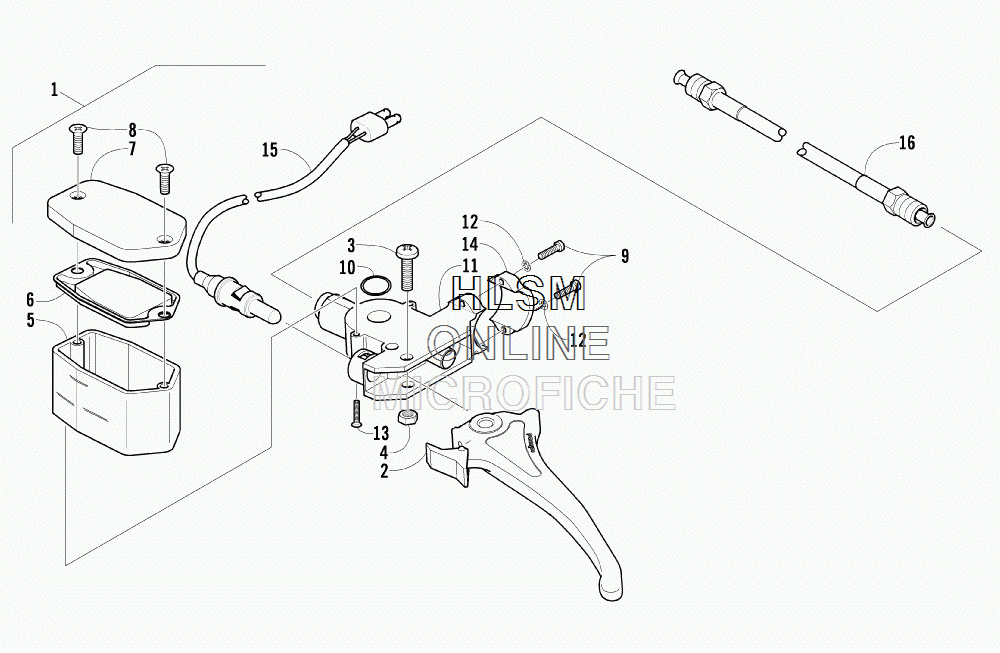

HYDRAULIC BRAKE CONTROL ASSEMBLY для Arctic Cat Sno Pro 500 - GREEN [S2014ACCPRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
11602-964 BRAKE ASSEMBLY (INC. 2-14)BRAKE ASSEMBLY (INC. 2-14)
-
21602-712 ...LEVER, BRAKE...LEVER, BRAKE
-
30623-430 ...SCREW, MACHINE...SCREW, MACHINE
-
40623-056 ...NUT, LOCK...NUT, LOCK
-
50602-740 ...RESERVOIR...RESERVOIR
-
60602-741 ...GASKET, COVER...GASKET, COVER
-
70602-742 ...COVER, RESERVOIR...COVER, RESERVOIR
-
80623-506 ...SCREW, MACHINE...SCREW, MACHINE
-
91623-906 ...SCREW, CAP...SCREW, CAP
-
100602-587 ...O-RING...O-RING
-
128052-212 ...WASHER, INTERNAL TOOTH LOCK...WASHER, INTERNAL TOOTH LOCK
-
130623-432 ...SCREW, MACHINE...SCREW, MACHINE
-
140602-907 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
150609-648 SWITCH, TAILLIGHTSWITCH, TAILLIGHT
-
161602-488 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
-
-5639-848 FLUID, BRAKE - 12 OZ - NOT ILLUSTRATEDFLUID, BRAKE - 12 OZ - NOT ILLUSTRATED
