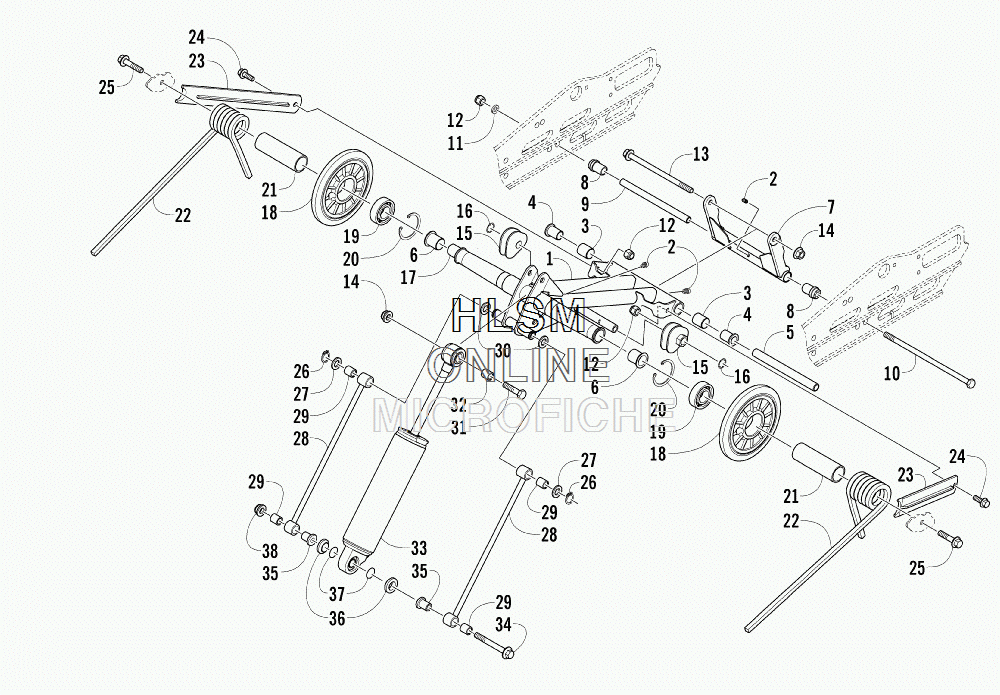

REAR SUSPENSION REAR ARM ASSEMBLY для Arctic Cat Sno Pro 500 - GREEN [S2014ACCPRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
11704-918 ARM, IDLER (INC. TWO NO. 2 AND 3-6)ARM, IDLER (INC. TWO NO. 2 AND 3-6)
-
21623-010 ...FITTING, GREASE...FITTING, GREASE
-
32603-481 ...BEARING,GARLOCK (12DU16)...BEARING,GARLOCK (12DU16)
-
43604-222 ...BUSHING, FLARED...BUSHING, FLARED
-
53604-226 ...AXLE...AXLE
-
63604-223 ...BEARING...BEARING
-
71704-368 ARM, REAR (INC. ONE NO. 2)ARM, REAR (INC. ONE NO. 2)
-
81604-307 AXLE, SERRATEDAXLE, SERRATED
-
92604-665 TUBE, AXLETUBE, AXLE
-
101623-037 SCREW, CAPSCREW, CAP
-
118051-277 WASHER, LOCKWASHER, LOCK
-
128040-486 NUT, LOCKNUT, LOCK
-
131623-674 SCREW, CAPSCREW, CAP
-
148047-486 NUT, LOCKNUT, LOCK
-
151604-204 BLOCK, SPRING ADJUSTER - RIGHTBLOCK, SPRING ADJUSTER - RIGHT
-
151604-205 BLOCK, SPRING ADJUSTER - LEFTBLOCK, SPRING ADJUSTER - LEFT
-
160623-138 RING, RETAININGRING, RETAINING
-
173604-388 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
183604-616 WHEEL, IDLER (INC. 19-20)WHEEL, IDLER (INC. 19-20)
-
193604-257 ...BEARING...BEARING
-
203604-256 ...RING, RETAINING...RING, RETAINING
-
213604-414 SLEEVE, SPRINGSLEEVE, SPRING
-
221704-382 SPRING, SUSPENSION - RIGHTSPRING, SUSPENSION - RIGHT
-
221704-383 SPRING, SUSPENSION - LEFTSPRING, SUSPENSION - LEFT
-
233604-408 BRACE, SUPPORTBRACE, SUPPORT
-
248020-222 SCREW, CAPSCREW, CAP
-
251623-903 SCREW, CAPSCREW, CAP
-
260623-237 SNAP RINGSNAP RING
-
271623-389 WASHERWASHER
-
281704-377 LINK, REAR SHOCK (INC. 29)LINK, REAR SHOCK (INC. 29)
-
290603-083 ...BEARING, GARLOCK 10DU12...BEARING, GARLOCK 10DU12
-
301623-384 WASHER, URETHANEWASHER, URETHANE
-
318020-226 SCREW, CAPSCREW, CAP
-
321604-139 SLEEVESLEEVE
-
332704-040 SHOCK ABSORBERSHOCK ABSORBER
-
348026-414 SCREW, CAPSCREW, CAP
-
353604-209 AXLE, LINK - FLANGEDAXLE, LINK - FLANGED
-
363604-210 SPACERSPACER
-
372604-698 O-RINGO-RING
-
388047-610 NUT, LOCKNUT, LOCK
