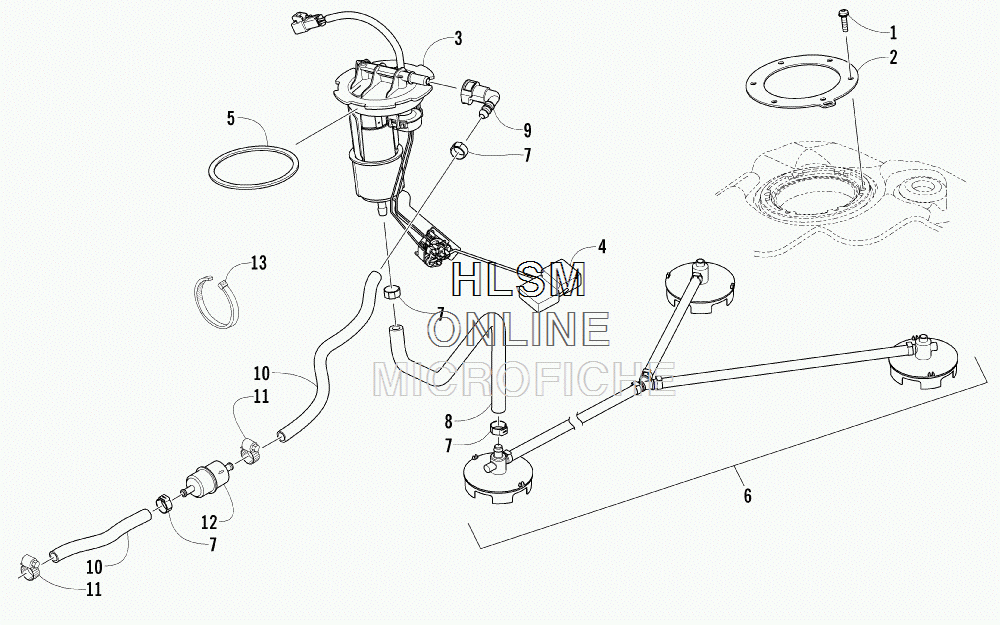

FUEL PUMP ASSEMBLY для Arctic Cat ZR 6000 Sno Pro RR - GREEN [S2014ZRDRRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAINING - FUEL PUMPPLATE, RETAINING - FUEL PUMP
-
32670-358 PUMP, FUEL - ASSEMBLY (INC. 4)PUMP, FUEL - ASSEMBLY (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
62670-377 PICKUP, FUEL - ASSEMBLYPICKUP, FUEL - ASSEMBLY
-
70610-563 CLAMP, HOSECLAMP, HOSE
-
82670-442 HOSE, FUEL PUMP/PICKUPHOSE, FUEL PUMP/PICKUP
-
91670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
100610-691 HOSE, GASLINE - 10 FTHOSE, GASLINE - 10 FT
-
110623-373 CLAMP, HOSECLAMP, HOSE
-
121670-825 FILTER, FUELFILTER, FUEL
-
130123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
-
130123-903 TIE, CABLE - 11.5 IN.TIE, CABLE - 11.5 IN.
