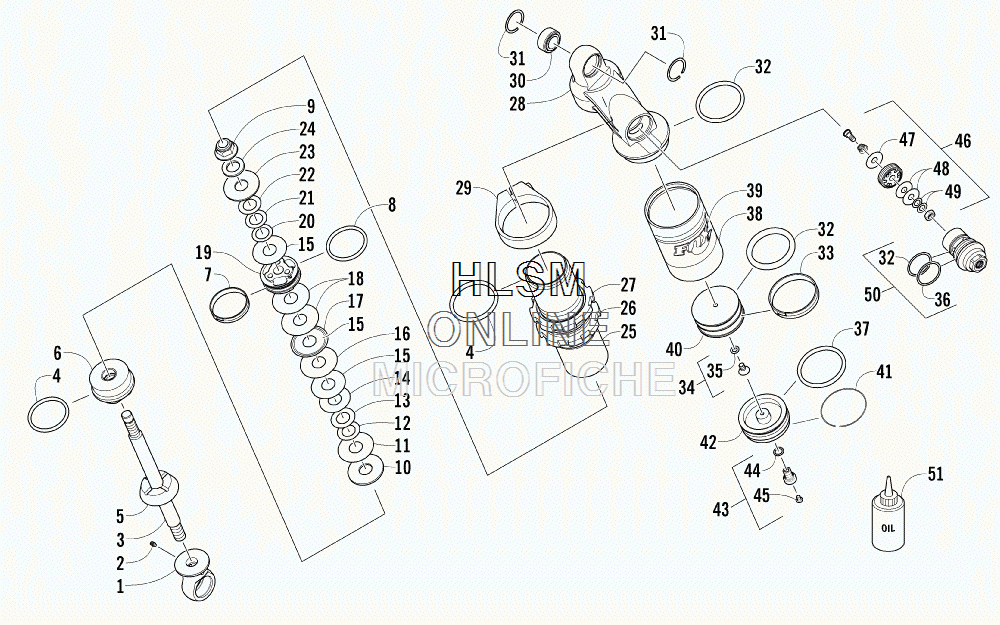

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 6000 Sno Pro RR - GREEN [S2014ZRDRRUSG] - 2014 года выпуска

№

Артикул

Название
-

2704-487 COMPLETE SHOCK ABSORBER

COMPLETE SHOCK ABSORBER

95 670 ₽
1

3604-842 EYELET, SHOCK

EYELET, SHOCK

31 190 ₽
2

1603-940 SCREW, SET

SCREW, SET

190 ₽
3

3604-895 ROD, SHOCK

ROD, SHOCK

15 180 ₽
4

2603-849 KIT, SEAL/REBUILD (INC. 5-9)

KIT, SEAL/REBUILD (INC. 5-9)

22 870 ₽
5

3604-530 ...BUMPER

...BUMPER

7 270 ₽
6

2604-413 ...BEARING - ASSEMBLY

...BEARING - ASSEMBLY

23 290 ₽
7

2603-994 ...STRAP, PISTON

...STRAP, PISTON

4 150 ₽
8

2604-214 ...O-RING

...O-RING

690 ₽
9

0603-301 ...NUT

...NUT

980 ₽
10

0603-540 WASHER, TOP OUT

WASHER, TOP OUT

2 490 ₽
11

0603-347 VALVE, 1.250 X 0.010 IN.

VALVE, 1.250 X 0.010 IN.

2 070 ₽
12

0603-334 VALVE, 0.800 X 0.008 IN.

VALVE, 0.800 X 0.008 IN.

1 870 ₽
13

0603-337 VALVE, 0.900 X 0.008 IN.

VALVE, 0.900 X 0.008 IN.

1 870 ₽
14

0603-340 VALVE, 1.000 X 0.008 IN.

VALVE, 1.000 X 0.008 IN.

1 870 ₽
15

0603-343 VALVE, 1.100 X 0.008 IN.

VALVE, 1.100 X 0.008 IN.

1 040 ₽
16

0603-349 VALVE, 1.300 X 0.008 IN.

VALVE, 1.300 X 0.008 IN.

2 070 ₽
17

3604-788 VALVE, RING - 1.250 X 0.012 IN.

VALVE, RING - 1.250 X 0.012 IN.

2 700 ₽
18

0603-350 VALVE, 1.300 X 0.010 IN.

VALVE, 1.300 X 0.010 IN.

2 700 ₽
19

2603-987 PISTON, HIGH FLOW

PISTON, HIGH FLOW

5 820 ₽
20

3604-171 VALVE, 0.600 X 0.004 IN.

VALVE, 0.600 X 0.004 IN.

1 870 ₽
21

0603-330 VALVE, 0.700 X 0.006 IN.

VALVE, 0.700 X 0.006 IN.

1 870 ₽
22

0603-894 VALVE, 0.900 X 0.004 IN.

VALVE, 0.900 X 0.004 IN.

920 ₽
23

3604-170 WASHER, TOP OUT

WASHER, TOP OUT

3 320 ₽
24

0603-389 WASHER, BACKUP

WASHER, BACKUP

1 870 ₽
25

3604-729 BODY, SHOCK

BODY, SHOCK

27 450 ₽
26

2604-840 NUT, ADJUSTER

NUT, ADJUSTER

7 480 ₽
27

2604-841 COLLAR, LOCKING - ADJUSTER NUT

COLLAR, LOCKING - ADJUSTER NUT

7 480 ₽
28

3604-522 END CAP, SHOCK/RESERVOIR (INC. 29-31)

END CAP, SHOCK/RESERVOIR (INC. 29-31)

60 940 ₽
29

3604-532 ...CLAMP, BODY/END CAP

...CLAMP, BODY/END CAP

12 470 ₽
30

3604-526 ...BEARING

...BEARING

13 310 ₽
31

3604-527 ...RING, RETAINING

...RING, RETAINING

2 070 ₽
32

3604-539 KIT, REBUILD - RESERVOIR (INC. 33-37 AND 43-45)

KIT, REBUILD - RESERVOIR (INC. 33-37 AND 43-45)

29 950 ₽
33

1603-235 ...STRAP, PISTON

...STRAP, PISTON

3 110 ₽
34

1604-316 ...SCREW, MACHINE W/O-RING (INC. 35)

...SCREW, MACHINE W/O-RING (INC. 35)

770 ₽
35

1604-425 ......O-RING

......O-RING

690 ₽
36

2603-502 ...O-RING

...O-RING

980 ₽
37

0603-671 ...O-RING

...O-RING

630 ₽
38

3604-528 RESERVOIR

RESERVOIR

27 450 ₽
39

3604-724 DECAL, RESERVOIR

DECAL, RESERVOIR

1 450 ₽
40

3604-524 PISTON, INTERNAL FLOATING

PISTON, INTERNAL FLOATING

17 470 ₽
41

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
42

2603-525 END CAP, RESERVOIR (INC. 37 AND 43-44)

END CAP, RESERVOIR (INC. 37 AND 43-44)

11 850 ₽
43

0703-341 ...VALVE, PRESSURE - ASSEMBLY (INC. 44)

...VALVE, PRESSURE - ASSEMBLY (INC. 44)

8 310 ₽
44

1604-318 ......O-RING

......O-RING

1 870 ₽
45

0624-097 SCREW, MACHINE

SCREW, MACHINE

130 ₽
46

3604-187 PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 47-49)

PISTON, CONCENTRIC - DAMPING ADJUSTER (INC. 47-49)

41 590 ₽
47

0603-331 ...VALVE, 0.700 X 0.008 IN.

...VALVE, 0.700 X 0.008 IN.

920 ₽
48

2603-501 ...VALVE, 0.700 X 0.010 IN.

...VALVE, 0.700 X 0.010 IN.

2 070 ₽
49

3604-165 ...PLATE, BACKUP

...PLATE, BACKUP

2 070 ₽
50

2603-527 CARTRIDGE, DAMPING ADJUSTER (INC. 36)

CARTRIDGE, DAMPING ADJUSTER (INC. 36)

14 140 ₽
51

5639-530 OIL, SHOCK - 1 QT

OIL, SHOCK - 1 QT

3 950 ₽
