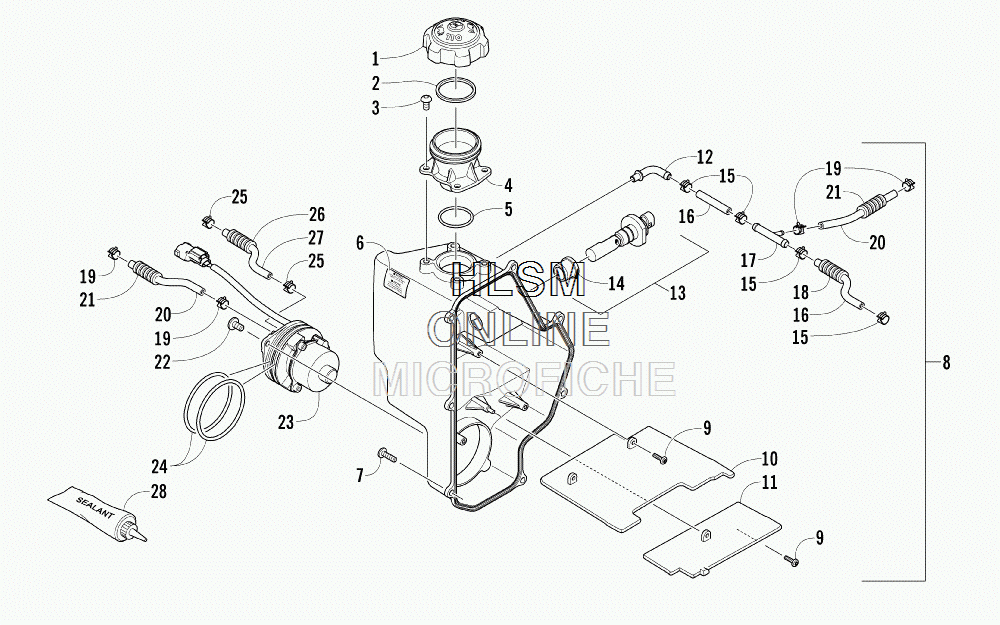

OIL TANK ASSEMBLY для Arctic Cat ZR 6000 Sno Pro RR - GREEN [S2014ZRDRRUSG] - 2014 года выпуска
-
№АртикулНазвание
-
11670-365 CAP, OIL TANK (INC. 2)CAP, OIL TANK (INC. 2)
-
20109-733 ...SEAL, CAP - OIL TANK...SEAL, CAP - OIL TANK
-
31623-969 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
42670-329 NECK, OIL FILLNECK, OIL FILL
-
51623-972 O-RINGO-RING
-
60621-786 DECAL, OIL TANKDECAL, OIL TANK
-
71623-814 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
81770-062 TANK, OIL (INC. 9-12)TANK, OIL (INC. 9-12)
-
92623-007 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
102670-354 ...PLATE, BAFFLE - UPPER...PLATE, BAFFLE - UPPER
-
112670-359 ...PLATE, BAFFLE - LOWER...PLATE, BAFFLE - LOWER
-
120913-021 ...FITTING, ELBOW...FITTING, ELBOW
-
130609-915 SENSOR, LOW OIL (INC. 14)SENSOR, LOW OIL (INC. 14)
-
140609-924 ...GROMMET...GROMMET
-
151623-351 CLAMP, HOSECLAMP, HOSE
-
160610-968 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
172670-362 T-FITTINGT-FITTING
-
181619-359 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
192623-013 CLAMP, HOSECLAMP, HOSE
-
200610-967 HOSE - GREEN - 25 FTHOSE - GREEN - 25 FT
-
215706-536 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
228468-613 SCREW, MACHINESCREW, MACHINE
-
230912-003 PUMP, OIL (INC. 24)PUMP, OIL (INC. 24)
-
240930-046 ...O-RING...O-RING
-
250923-050 CLAMP, HOSECLAMP, HOSE
-
261619-356 CONDUIT, FLEXIBLE - 5 FTCONDUIT, FLEXIBLE - 5 FT
-
270610-966 HOSE - CLEAR - 25 FTHOSE - CLEAR - 25 FT
-
281048-063 SEALANT - 70 MLSEALANT - 70 ML
