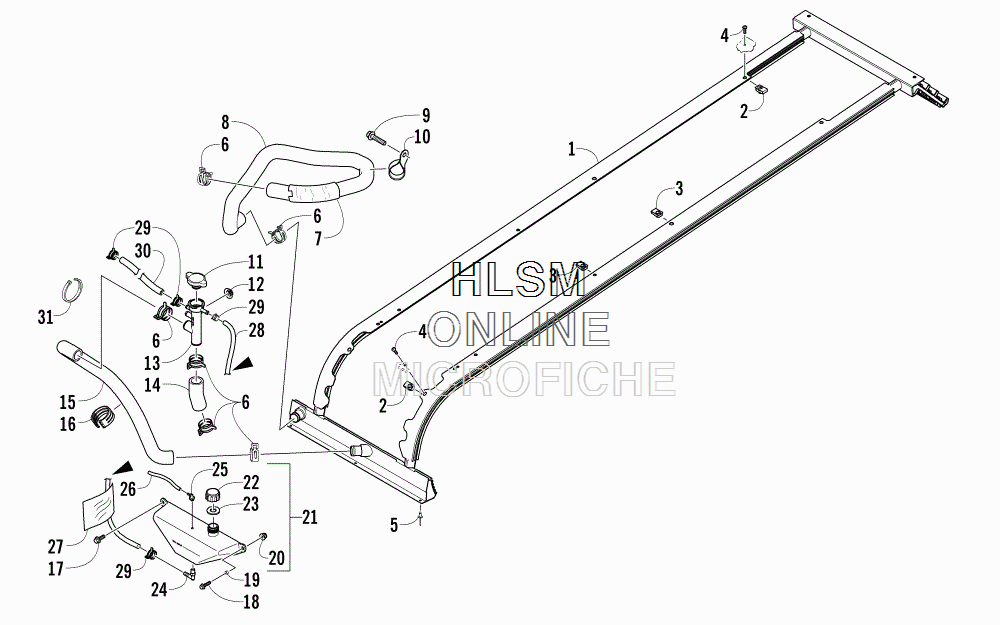

COOLING ASSEMBLY для Arctic Cat BEARCAT 5000 XT (INTERNATIONAL) (BLUE) [S2015BCNWTOSL] - 2015 года выпуска
-
№АртикулНазвание
-
14706-111 EXCHANGER, HEATEXCHANGER, HEAT
-
21623-637 CLIP, U-NUTCLIP, U-NUT
-
30423-577 CLIP, U-NUTCLIP, U-NUT
-
48470-520 SCREW, MACHINESCREW, MACHINE
-
58060-686 RIVETRIVET
-
61623-322 CLAMP, HOSECLAMP, HOSE
-
70610-790 LOOM, COOLANT HOSE - 5 FTLOOM, COOLANT HOSE - 5 FT
-
80610-757 HOSE, COOLANT - ENGINE/HEAT EXCHANGERHOSE, COOLANT - ENGINE/HEAT EXCHANGER
-
98408-020 SCREW, CAPSCREW, CAP
-
104606-388 BRACKET, COOLANT HOSEBRACKET, COOLANT HOSE
-
112606-284 CAPCAP
-
120423-357 NUT, STAMPEDNUT, STAMPED
-
131670-998 NECK, FILLERNECK, FILLER
-
140610-753 HOSE, COOLANT - COOLANT TANK/ENGINEHOSE, COOLANT - COOLANT TANK/ENGINE
-
150610-784 HOSE, COOLANT - HEAT EXCHANGERHOSE, COOLANT - HEAT EXCHANGER
-
160623-540 TIE, CABLE - TRIPLETIE, CABLE - TRIPLE
-
178408-630 SCREW, CAP-HFH M6X1.0X30 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X30 CL8.8 Z & Y
-
188408-625 SCREW, CAP-HFH M6X1.0X25 CL8.8 Z & YSCREW, CAP-HFH M6X1.0X25 CL8.8 Z & Y
-
195606-560 SPACERSPACER
-
208427-602 NUT, LOCKNUT, LOCK
-
210713-119 TANK, COOLANT (INC. 22-28 AND TWO NO. 29)TANK, COOLANT (INC. 22-28 AND TWO NO. 29)
-
220670-035 ...CAP, COOLANT TANK...CAP, COOLANT TANK
-
231623-834 ...GASKET...GASKET
-
240613-130 ...FITTING, ELBOW...FITTING, ELBOW
-
252670-132 ...FITTING, VENT...FITTING, VENT
-
260610-010 ...HOSE, VENT-25 FT...HOSE, VENT-25 FT
-
270619-206 ...TAPE, ALUM FOIL - 6" X 30 FT...TAPE, ALUM FOIL - 6" X 30 FT
-
280610-935 ...HOSE, VENT - 5 FT...HOSE, VENT - 5 FT
-
291623-278 ...CLAMP, HOSE...CLAMP, HOSE
-
300610-789 HOSE, COOLANT - BYPASSHOSE, COOLANT - BYPASS
-
310123-788 TIE, CABLE - 8 IN.TIE, CABLE - 8 IN.
