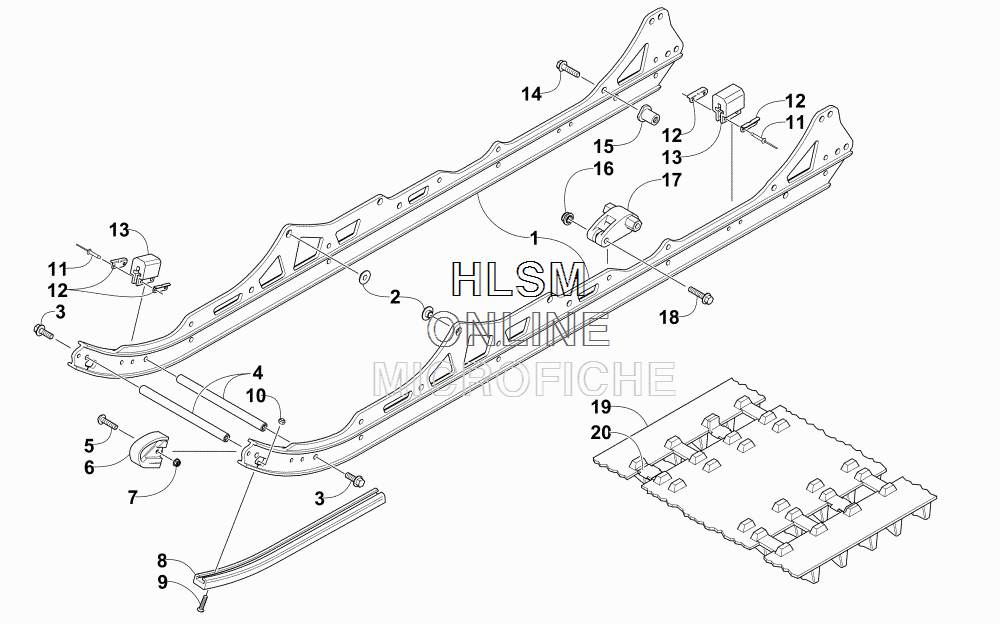

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat BEARCAT 5000 XT (INTERNATIONAL) (BLUE) [S2015BCNWTOSL] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-142 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
13604-457 RAIL, FORMEDRAIL, FORMED
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-826 SCREW, CAPSCREW, CAP
-
43604-425 AXLEAXLE
-
58476-625 SCREW, MACHINESCREW, MACHINE
-
63604-003 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
78427-602 NUT, LOCKNUT, LOCK
-
83604-424 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
90123-859 SCREW, MACHINESCREW, MACHINE
-
108047-366 NUT, LOCKNUT, LOCK
-
118060-633 RIVET,BLIND-DH AA614 BLKRIVET,BLIND-DH AA614 BLK
-
120604-967 BRACKET, RETAININGBRACKET, RETAINING
-
130604-918 PAD, SHOCKPAD, SHOCK
-
148408-031 SCREW, CAPSCREW, CAP
-
153604-979 AXLE, OFFSET ARM - M10AXLE, OFFSET ARM - M10
-
168427-802 NUT, LOCKNUT, LOCK
-
173604-513 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
188408-850 SCREW, CAPSCREW, CAP
-
192602-639 TRACK ASSEMBLY (INC. 20)TRACK ASSEMBLY (INC. 20)
-
202602-384 ...CLIP, WEAR...CLIP, WEAR
