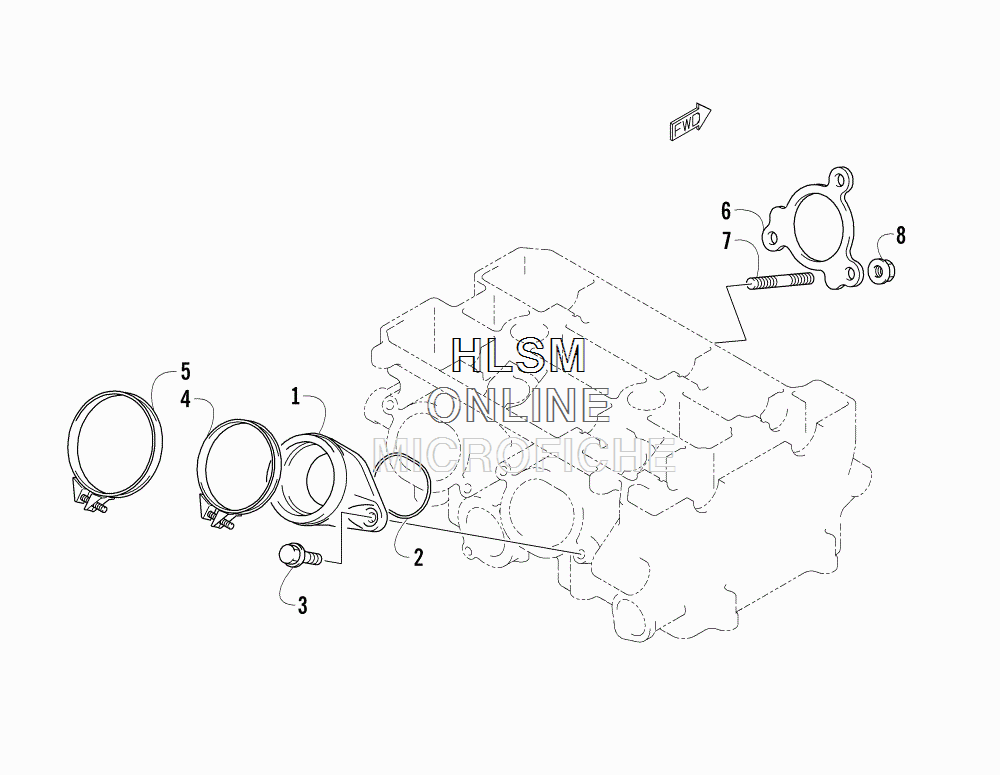

EXHAUST MANIFOLD GASKET/INTAKE FLANGE ASSEMBLY для Arctic Cat BEARCAT 5000 XT (INTERNATIONAL) (BLUE) [S2015BCNWTOSL] - 2015 года выпуска
-
№АртикулНазвание
-
13007-157 FLANGE, INTAKEFLANGE, INTAKE
-
23007-158 O-RING, INTAKE PIPE(ID:55.6,DD:2.4)O-RING, INTAKE PIPE(ID:55.6,DD:2.4)
-
33423-347 BOLT, 6X16BOLT, 6X16
-
43423-726 CLAMP (CARBURETOR SIDE)CLAMP (CARBURETOR SIDE)
-
53007-159 CLAMP, AIR SILENCERCLAMP, AIR SILENCER
-
63007-794 GASKET,EXH PIPEGASKET,EXH PIPE
-
73007-415 STUD BOLTSTUD BOLT
-
83007-390 NUTNUT
