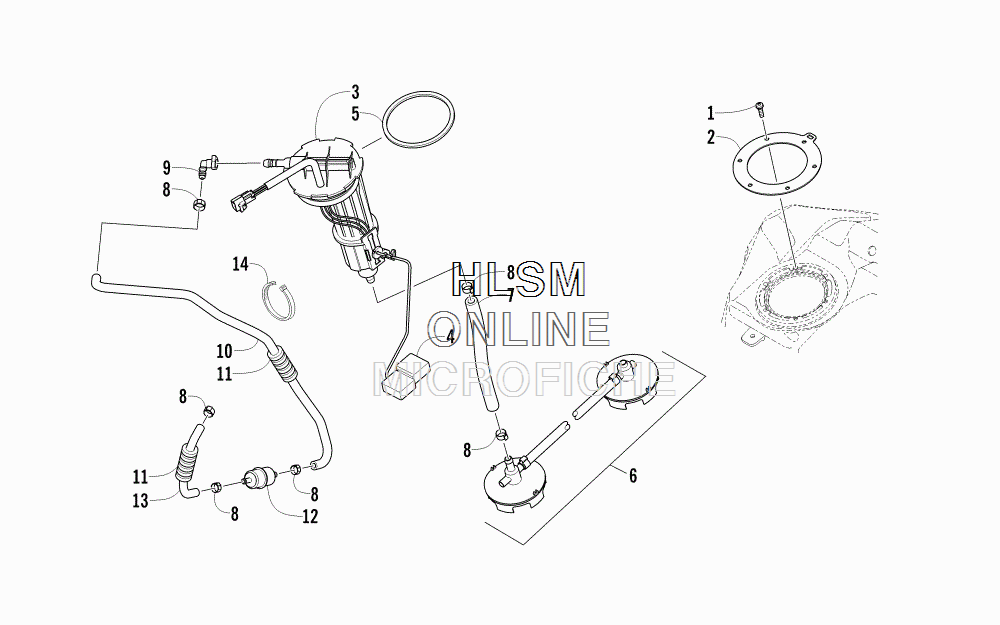

FUEL PUMP ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (BLACK) [S2015BCNWLUSB] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/6ef4d81c-eaed-493f-b07b-f77a668c55c1.gif)
-
№АртикулНазвание
-
10423-898 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
22670-042 PLATE, RETAININGPLATE, RETAINING
-
32670-051 PUMP, FUEL - ASSEMBLY (INC. 4)PUMP, FUEL - ASSEMBLY (INC. 4)
-
42670-235 ...FLOAT...FLOAT
-
50470-838 SEALSEAL
-
62670-054 PICKUP, FUEL - ASSEMBLY (INC. 7 AND ONE NO. 8)PICKUP, FUEL - ASSEMBLY (INC. 7 AND ONE NO. 8)
-
70610-971 ...HOSE, FUEL - IN TANK - (10 FT)...HOSE, FUEL - IN TANK - (10 FT)
-
80610-563 ...CLAMP, HOSE...CLAMP, HOSE
-
91670-878 FITTING, QUICK-CONNECTFITTING, QUICK-CONNECT
-
100610-812 HOSE, GASLINEHOSE, GASLINE
-
110619-776 CONDUIT - (5 FT)CONDUIT - (5 FT)
-
121670-825 FILTER, FUELFILTER, FUEL
-
130610-706 HOSE, GASLINEHOSE, GASLINE
-
140123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
140623-751 TIE, CABLE - REUSABLETIE, CABLE - REUSABLE
