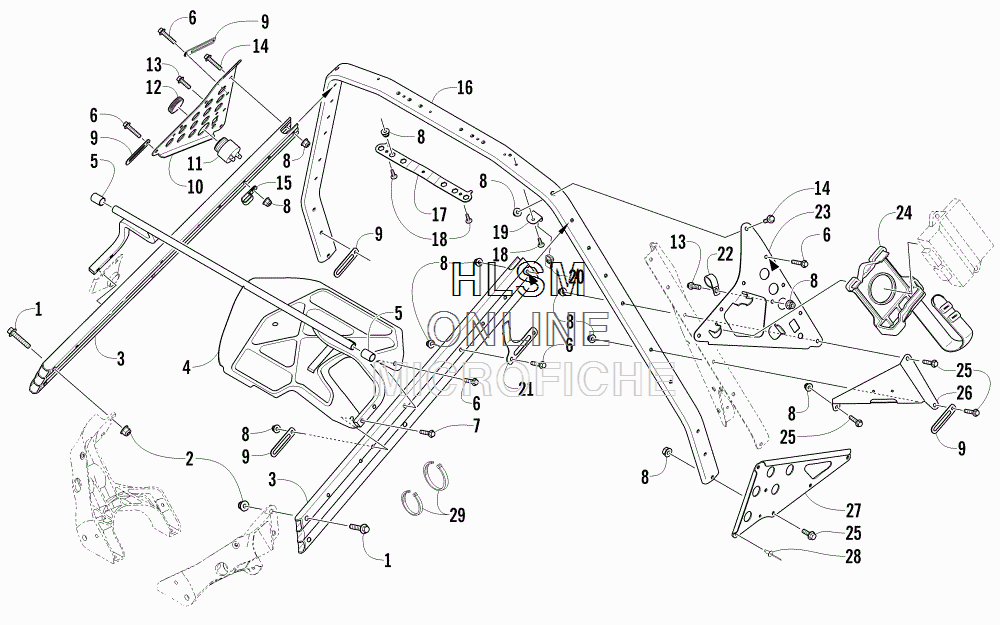

STEERING SUPPORT ASSEMBLY для Arctic Cat BEARCAT 5000 XT LTD (BLACK) [S2015BCNWLUSB] - 2015 года выпуска
![](/wa-data/public/shop/sheme/arctic-cat/snow/510c9de7-44de-4123-9433-f0100d152872.gif)
-
№АртикулНазвание
-
18408-840 SCREW, CAPSCREW, CAP
-
28427-802 NUT, LOCKNUT, LOCK
-
30607-814 FRAME, UPPERFRAME, UPPER
-
44706-568 BRACKET, SUPPORT - HEADLIGHT W/HEAT SHIELDBRACKET, SUPPORT - HEADLIGHT W/HEAT SHIELD
-
51623-900 SPACERSPACER
-
68408-635 SCREW, MACHINESCREW, MACHINE
-
78408-645 SCREW, CAPSCREW, CAP
-
88427-602 NUT, LOCKNUT, LOCK
-
91623-984 CLAMP, WIRE - (76.14MM) LG W/6.25 HOLECLAMP, WIRE - (76.14MM) LG W/6.25 HOLE
-
100607-808 GUSSET, STEERING SUPPORT - RIGHTGUSSET, STEERING SUPPORT - RIGHT
-
110630-243 ALARM, REVERSE (INC. 12)ALARM, REVERSE (INC. 12)
-
120630-017 ...RING, RETAINING...RING, RETAINING
-
138408-616 SCREW, CAPSCREW, CAP
-
148408-625 SCREW, CAPSCREW, CAP
-
151623-762 CLAMP, ROUTINGCLAMP, ROUTING
-
160605-964 SUPPORT, STEERINGSUPPORT, STEERING
-
175606-137 PLATE, NUTPLATE, NUT
-
180623-574 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
192670-015 BRACKET, MOUNTING - AIR SILENCERBRACKET, MOUNTING - AIR SILENCER
-
200423-577 CLIP, U-NUTCLIP, U-NUT
-
214606-925 BRACKET, MOUNTING - MAP SENSORBRACKET, MOUNTING - MAP SENSOR
-
220423-044 CLAMP, ROUTINGCLAMP, ROUTING
-
231607-093 GUSSET, STEERING SUPPORT - LEFTGUSSET, STEERING SUPPORT - LEFT
-
240645-506 MOUNT, ECUMOUNT, ECU
-
258408-630 SCREW, CAPSCREW, CAP
-
264606-908 BRACKET, SUPPORT - BELT GUARDBRACKET, SUPPORT - BELT GUARD
-
273706-632 BRACKET, FOOTREST - RIGHT (BLACK)BRACKET, FOOTREST - RIGHT (BLACK)
-
273706-633 BRACKET, FOOTREST - LEFT (BLACK)BRACKET, FOOTREST - LEFT (BLACK)
-
288060-706 RIVETRIVET
-
290123-788 TIE, CABLE - (8 IN.)TIE, CABLE - (8 IN.)
-
290123-903 TIE, CABLE - (11.5 IN.)TIE, CABLE - (11.5 IN.)
