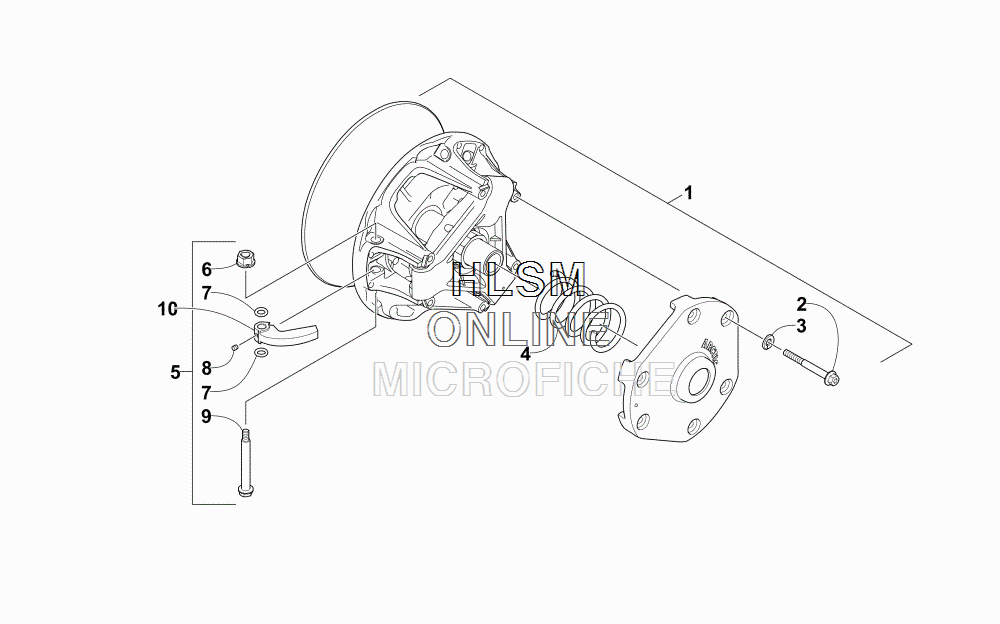

DRIVE CLUTCH для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска

№

Артикул

Название
1

0746-273 CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)

CLUTCH, DRIVE - UNCALIBRATED (INC. 2-3)

99 830 ₽
2

0646-431 ...SCREW, SHOULDER

...SCREW, SHOULDER

290 ₽
3

0646-430 ...WASHER, LOCK

...WASHER, LOCK

40 ₽
4

0646-433 SPRING,CLUTCH-GOLD STRIPE-75/275 LB

SPRING,CLUTCH-GOLD STRIPE-75/275 LB

7 900 ₽
5

4639-674 KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

KIT,CAM ARM REPAIR 05- 09(WIDE) (INC. 6-9)

8 730 ₽
6

8048-366 ...NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z & Y

...NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z & Y

110 ₽
7

1602-692 ...O-RING, 5/16 X 1/2 X 3/32 - VITON

...O-RING, 5/16 X 1/2 X 3/32 - VITON

110 ₽
8

1623-183 ......SCREW,SET-CUP PT W/THD LOC-8-32X3/16

......SCREW,SET-CUP PT W/THD LOC-8-32X3/16

250 ₽
9

0646-747 ...PIN, CAM ARM

...PIN, CAM ARM

2 700 ₽
10

0746-791 ARM,CAM W/SET SCREW-P3/60G (INC. 8)

ARM,CAM W/SET SCREW-P3/60G (INC. 8)

1 660 ₽
10

0746-678 ARM,CAM-WIDE-P3-55 GRAM W/SET SCREW (3-6,000 FT ALT.) (INC. 8)

ARM,CAM-WIDE-P3-55 GRAM W/SET SCREW (3-6,000 FT ALT.) (INC. 8)

4 990 ₽
10

0746-844 ARM, CAM (6-9,000 FT ALT.) (INC. 8)

ARM, CAM (6-9,000 FT ALT.) (INC. 8)

5 610 ₽
10

0746-845 ARM, CAM (OVER 9,000 FT ALT.) (INC. 8)

ARM, CAM (OVER 9,000 FT ALT.) (INC. 8)

2 070 ₽
