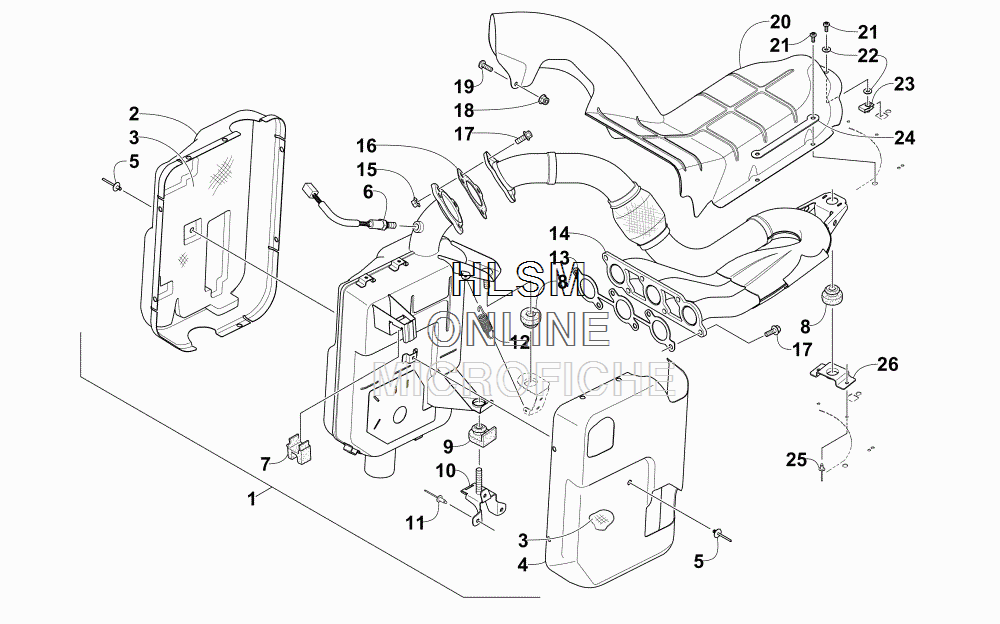

EXHAUST ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
11712-964 RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)
-
22612-822 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
32612-820 ...PACKING, RESONATOR...PACKING, RESONATOR
-
42612-823 ...SHIELD, HEAT - LEFT...SHIELD, HEAT - LEFT
-
51623-799 ...RIVET,BLIND-LF SD61BSLF ZINC...RIVET,BLIND-LF SD61BSLF ZINC
-
60630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
72612-908 GROMMET,RUBBER-UPPERGROMMET,RUBBER-UPPER
-
82612-186 GROMMET,RUBBER-RESONATOR MOUNTGROMMET,RUBBER-RESONATOR MOUNT
-
92612-912 GROMMET,RESONATOR MOUNTGROMMET,RESONATOR MOUNT
-
101712-790 BRACKET, MOUNTING - LOWERBRACKET, MOUNTING - LOWER
-
118060-708 RIVET,BLIND-DH SS66 (BLACK)RIVET,BLIND-DH SS66 (BLACK)
-
120612-668 SPRING,EXTENSIONSPRING,EXTENSION
-
133020-136 GASKET,EXHAUST MANIFOLDGASKET,EXHAUST MANIFOLD
-
141712-965 MANIFOLD, EXHAUST - WELDMENTMANIFOLD, EXHAUST - WELDMENT
-
151623-912 NUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMPNUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMP
-
162612-663 GASKET, EXHAUSTGASKET, EXHAUST
-
171623-918 SCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMPSCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMP
-
188427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
198476-625 SCREW,MACH-TSTRH M6X1.0X25 Z & YSCREW,MACH-TSTRH M6X1.0X25 Z & Y
-
202612-880 SHIELD,HEAT-MANIFOLD-COLLECTOR-UPPERSHIELD,HEAT-MANIFOLD-COLLECTOR-UPPER
-
218476-516 SCREW,MACH-TSTRH M5X0.8X16 Z & YSCREW,MACH-TSTRH M5X0.8X16 Z & Y
-
228050-217 WASHER,FLAT- 1/4 X .625 X .065 Z & YWASHER,FLAT- 1/4 X .625 X .065 Z & Y
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
242612-969 PLATE, MOUNTING - HEAT SHIELDPLATE, MOUNTING - HEAT SHIELD
-
258060-702 RIVET,BLIND-DH SS62 (BLACK)RIVET,BLIND-DH SS62 (BLACK)
-
262612-963 BRACKET, MOUNTING - MANIFOLDBRACKET, MOUNTING - MANIFOLD
