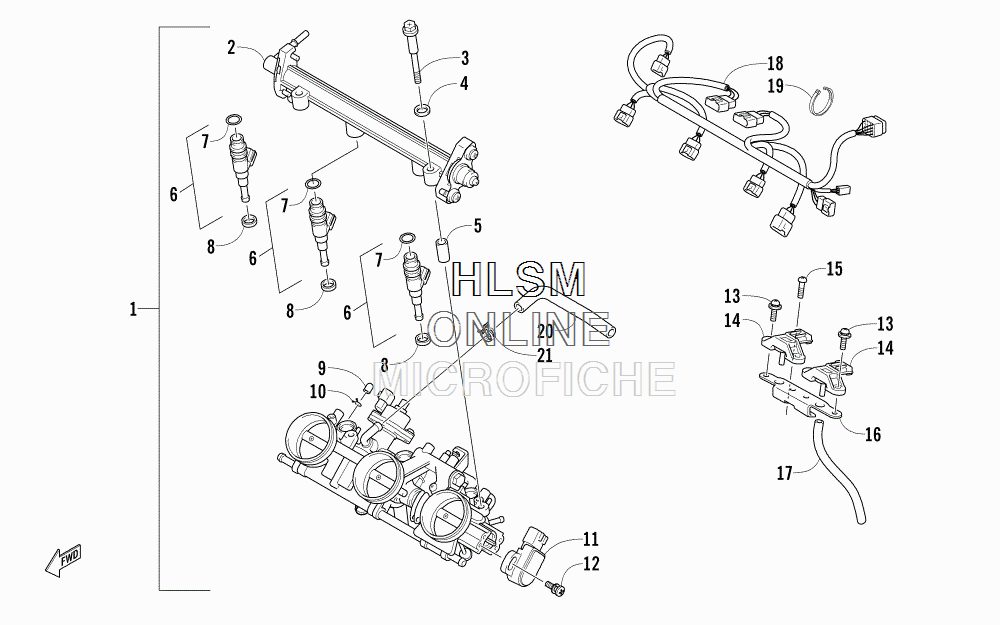

THROTTLE BODY ASSEMBLY для Arctic Cat M 7000 SNO PRO (GREEN) [S2015M7USPUSG] - 2015 года выпуска
-
№АртикулНазвание
-
13020-327 BODY, THROTTLE - ASSEMBLY (INC. 2-19)BODY, THROTTLE - ASSEMBLY (INC. 2-19)
-
23020-328 ...RAIL, FUEL...RAIL, FUEL
-
33020-329 ...SCREW, SHOULDER...SCREW, SHOULDER
-
43020-330 ...WASHER...WASHER
-
53020-331 ...SPACER...SPACER
-
63020-332 ...INJECTOR (INC. 7)...INJECTOR (INC. 7)
-
73020-333 ......O-RING......O-RING
-
83020-334 ...GROMMET...GROMMET
-
93020-340 ...CAP...CAP
-
103020-341 ...CLAMP, HOSE...CLAMP, HOSE
-
113020-342 ...SENSOR, THROTTLE POSITION - ASSEMBLY...SENSOR, THROTTLE POSITION - ASSEMBLY
-
123020-343 ...SCREW, MACHINE...SCREW, MACHINE
-
133020-336 ...SCREW, MACHINE...SCREW, MACHINE
-
143020-337 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
173020-338 ...HOSE, VENT...HOSE, VENT
-
183020-344 ...HARNESS, EXTENSION - ENGINE...HARNESS, EXTENSION - ENGINE
-
190123-788 ...TIE, CABLE - 8 IN....TIE, CABLE - 8 IN.
-
190123-903 ...TIE, CABLE - 11.5 IN....TIE, CABLE - 11.5 IN.
-
200610-962 HOSE, ISCHOSE, ISC
-
211623-281 CLAMP,HOSE-SPRING (12W X 18)CLAMP,HOSE-SPRING (12W X 18)
