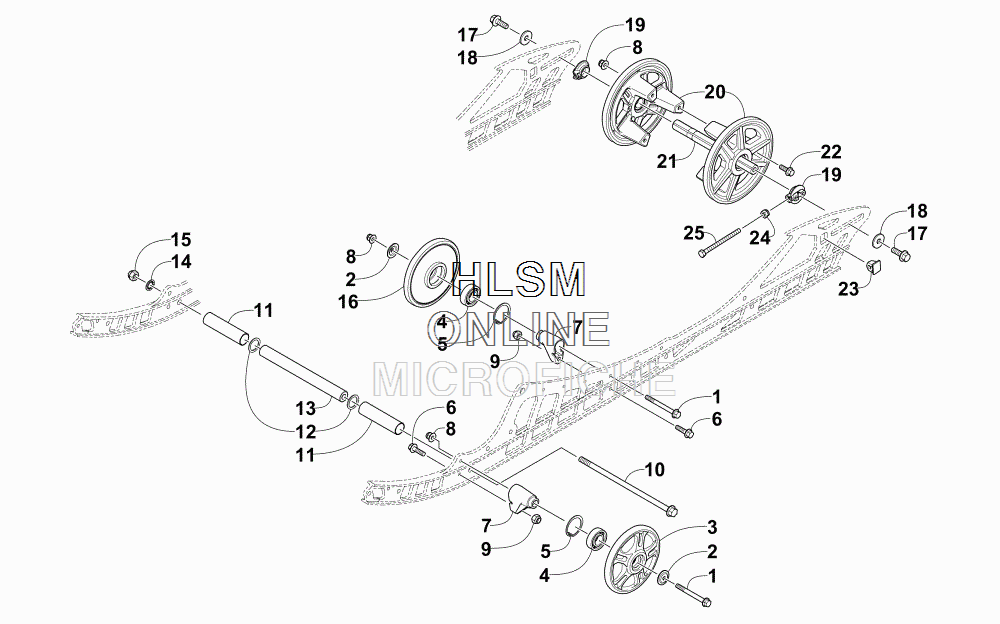

IDLER WHEEL ASSEMBLY для Arctic Cat M 8000 153 (GREEN) [S2015M8HE3USG] - 2015 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW,CAP-HFH M6X1.0X75 CL10.9 (SILVER)SCREW,CAP-HFH M6X1.0X75 CL10.9 (SILVER)
-
22623-025 WASHER,STEPPED-6MM ID X 26MM OD-MZ & BWASHER,STEPPED-6MM ID X 26MM OD-MZ & B
-
33604-386 WHEEL, IDLER - (BLACK) (INC. 4-5)WHEEL, IDLER - (BLACK) (INC. 4-5)
-
43604-033 ......BEARING,WHL-NSK CHINA 6004-W/ENS GREASE......BEARING,WHL-NSK CHINA 6004-W/ENS GREASE
-
50623-946 ......RING,INTERNAL RETAINING-#165......RING,INTERNAL RETAINING-#165
-
68413-620 SCREW,CAP-HFH M6X1.0X20 CL10.9 (SILVER)SCREW,CAP-HFH M6X1.0X20 CL10.9 (SILVER)
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
98422-602 NUT,HEX-THK NYL M6X1.00 CL8 Z & YNUT,HEX-THK NYL M6X1.00 CL8 Z & Y
-
101423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)BOLT, HFH M10-1.25X250 CL10.9 RIE (SILVER)
-
113604-083 SPACER,FRONT ARM SHOCKSPACER,FRONT ARM SHOCK
-
120623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & YWASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
-
133604-269 AXLEAXLE
-
141623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
158422-002 NUT,HEX-THK NYL M10X1.25 CL8 Z & YNUT,HEX-THK NYL M10X1.25 CL8 Z & Y
-
163604-039 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
178408-031 SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353SCREW,CAP-HFH M10X1.25X30 CL8.8 W/2353
-
181623-931 WASHER,FLAT-ALUM-M10X29WASHER,FLAT-ALUM-M10X29
-
193604-641 BUSHING,ADJUSTER-REAR WHEELBUSHING,ADJUSTER-REAR WHEEL
-
204604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 IDWHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID
-
213604-640 AXLE, REARAXLE, REAR
-
228408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
233604-647 ADJUSTER,TRACK-8MM-CASTADJUSTER,TRACK-8MM-CAST
-
248422-802 NUT,HEX-THK NYL M8X1.25 CL8 Z & YNUT,HEX-THK NYL M8X1.25 CL8 Z & Y
-
251623-682 SCREW,CAP-HH-M8 X 1.25 X 100 Z & YSCREW,CAP-HH-M8 X 1.25 X 100 Z & Y
