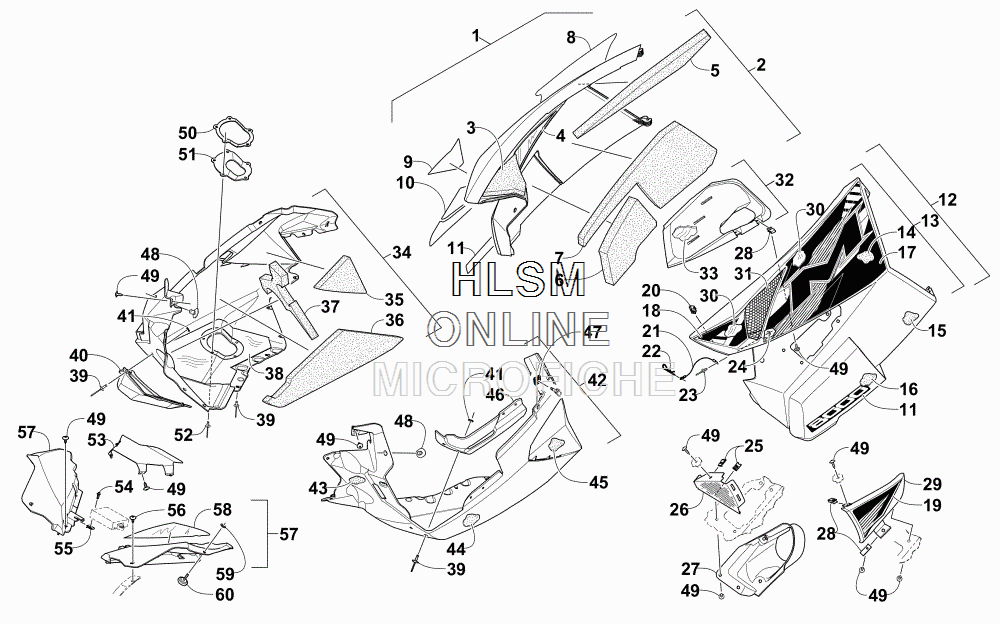

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat M 8000 153 (GREEN) [S2015M8HE3USG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-176 PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-10 AND ONE NO. 11)PANEL, SIDE W/DECALS - RIGHT - (BLACK) (INC. 2-10 AND ONE NO. 11)
-
23718-180 ...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - (BLACK) (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
70617-634 ......FOAM, SIDE PANEL - LOWER REAR - RIGHT......FOAM, SIDE PANEL - LOWER REAR - RIGHT
-
81621-424 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-428 ...DECAL, SIDE PANEL - LOWER FRONT - RIGHT...DECAL, SIDE PANEL - LOWER FRONT - RIGHT
-
101621-430 ...DECAL, SIDE PANEL - MID - RIGHT...DECAL, SIDE PANEL - MID - RIGHT
-
111621-448 ......DECAL, "8000"......DECAL, "8000"
-
124718-177 PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. 13-19 AND ONE NO. 11)PANEL, SIDE W/DECALS - LEFT - (BLACK) (INC. 13-19 AND ONE NO. 11)
-
134718-553 ...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-16)...PANEL, SIDE W/O DECALS - LEFT - (BLACK) (INC. 14-16)
-
140617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
150617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
171621-425 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
181621-429 ...DECAL, SIDE PANEL - LOWER FRONT - LEFT...DECAL, SIDE PANEL - LOWER FRONT - LEFT
-
192621-309 ...DECAL, SIDE PANEL - CENTER VENT - LEFT...DECAL, SIDE PANEL - CENTER VENT - LEFT
-
201623-637 CLIP, U-NUTCLIP, U-NUT
-
210607-447 CABLE,5"-HAIRPINCABLE,5"-HAIRPIN
-
220605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
238060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
248050-127 WASHER,FLAT- #8 X .375 X .049 Z & YWASHER,FLAT- #8 X .375 X .049 Z & Y
-
251623-052 CLIP, U-NUTCLIP, U-NUT
-
266606-925 SCREEN, INTAKESCREEN, INTAKE
-
272602-794 DUCT, INTAKE - INNERDUCT, INTAKE - INNER
-
281623-030 CLIP, U-NUTCLIP, U-NUT
-
292602-793 DUCT, INTAKE - OUTER - (BLACK)DUCT, INTAKE - OUTER - (BLACK)
-
300619-206 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
315706-531 SCREEN, INTAKESCREEN, INTAKE
-
321702-369 DUCT, AIR - CLUTCH (INC. 33)DUCT, AIR - CLUTCH (INC. 33)
-
336606-694 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
343718-422 PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 36-42)PLATE, SKID W/O DECALS - RIGHT - (BLACK) (INC. 36-42)
-
350617-640 FOAM, SKID PLATE - UPPER REAR - RIGHTFOAM, SKID PLATE - UPPER REAR - RIGHT
-
360617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
370617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
382612-850 ...FOIL, PROTECTIVE...FOIL, PROTECTIVE
-
398061-708 ...RIVET, BLIND-LF SS66 (BLACK)...RIVET, BLIND-LF SS66 (BLACK)
-
402612-754 ...DEFLECTOR, HEAT...DEFLECTOR, HEAT
-
410123-802 ...WASHER,FLAT .194X.50X.048...WASHER,FLAT .194X.50X.048
-
423718-789 ...PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 44-47)...PLATE, SKID W/O DECALS - LEFT - (BLACK) (INC. 44-47)
-
430617-637 FOAM, SKID PLATE - UPPER FRONT - LEFTFOAM, SKID PLATE - UPPER FRONT - LEFT
-
440617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
450617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
466606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
472623-005 ...CLIP,RECEPTACLE-1/4 TURN STUD...CLIP,RECEPTACLE-1/4 TURN STUD
-
486606-592 PIN,RETAINER-BODY PLASTICPIN,RETAINER-BODY PLASTIC
-
491623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
502612-796 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
512612-795 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
528061-710 RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)RIVET, BLIND - LARGE FLANGE - SS68 - (BLACK)
-
536606-295 SHIELD, HEAT - ECMSHIELD, HEAT - ECM
-
548408-620 SCREW,CAP-HFH M6X1.0X20 CL8.8 Z & YSCREW,CAP-HFH M6X1.0X20 CL8.8 Z & Y
-
550423-031 NUT,SPEED M6 X 1.0 U-TYPENUT,SPEED M6 X 1.0 U-TYPE
-
560623-784 SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)SCREW,SELF TAP-TSTRH #10-12X3/4 TP A (BLACK)
-
576606-342 FASCIA, FRONT - RIGHT - (BLACK)FASCIA, FRONT - RIGHT - (BLACK)
-
573718-303 FASCIA, FRONT - LEFT - (BLACK) (INC. 59)FASCIA, FRONT - LEFT - (BLACK) (INC. 59)
-
586606-405 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
592623-001 ...RETAINER,PUSHNUT-3/16" STUD...RETAINER,PUSHNUT-3/16" STUD
-
601623-999 SCREW, THUMBSCREW, THUMB
