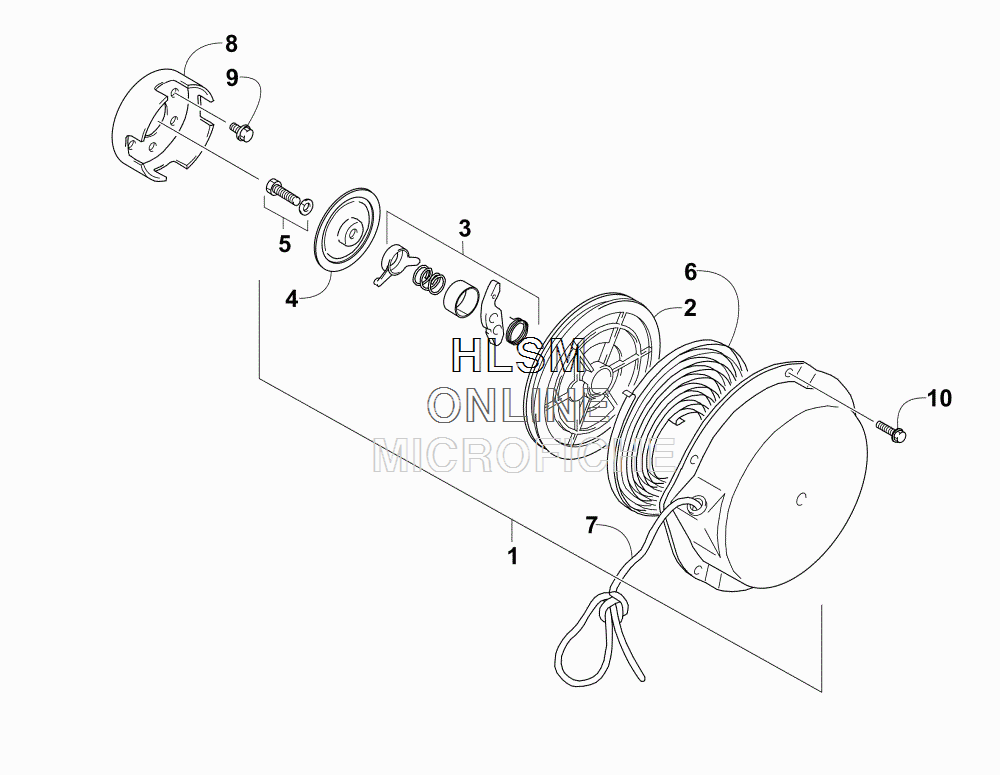

RECOIL STARTER для Arctic Cat M 8000 MCCLURE LTD 153 (ORANGE) [S2015M8HDMUSO] - 2015 года выпуска
-
№АртикулНазвание
-
13007-307 STARTER ASSEMBLY (INC. 2-7)STARTER ASSEMBLY (INC. 2-7)
-
23007-308 ...ROLLER, STARTER...ROLLER, STARTER
-
33007-309 ...RATCHET SET...RATCHET SET
-
43007-310 ...PLATE, FRICTION...PLATE, FRICTION
-
53007-311 ...BOLT W/WASHER...BOLT W/WASHER
-
63007-312 ...SPRING...SPRING
-
73006-889 ...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)...ROPE, STARTER - CTL (6 MM DIA.) (203 CM)
-
83007-544 PULLEY, STARTERPULLEY, STARTER
-
93007-407 BOLT,GROUNDBOLT,GROUND
-
103006-529 BOLT,6 X 20BOLT,6 X 20
