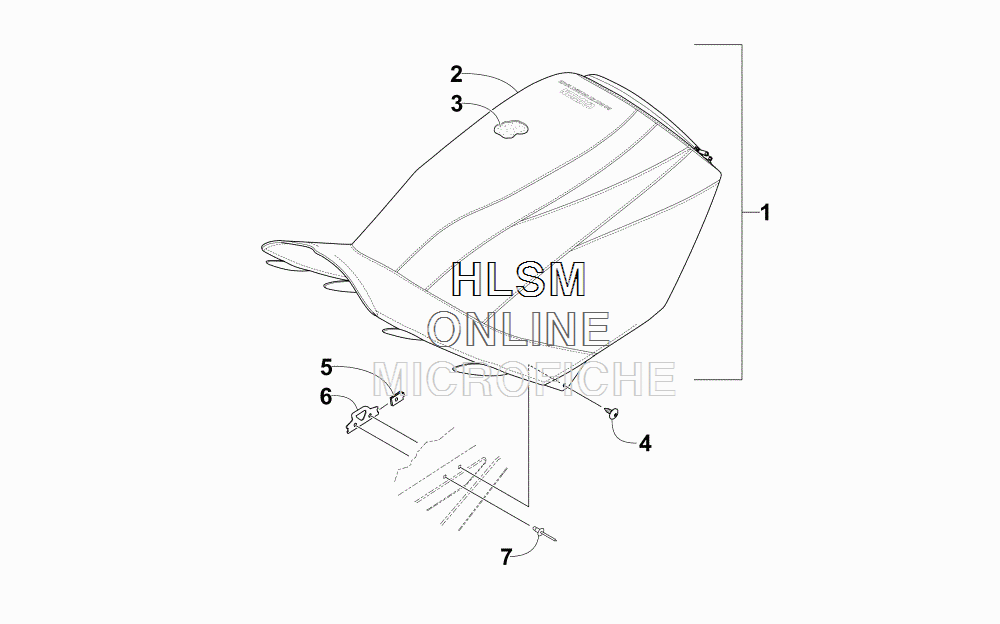

SEAT ASSEMBLY для Arctic Cat M 8000 MCCLURE LTD 153 (ORANGE) [S2015M8HDMUSO] - 2015 года выпуска
-
№АртикулНазвание
-
15706-983 COMPLETE SEAT ASSEMBLY - (BLACK) (INC. 2-3)COMPLETE SEAT ASSEMBLY - (BLACK) (INC. 2-3)
-
25706-982 ...COVER, SEAT - (BLACK)...COVER, SEAT - (BLACK)
-
30717-213 ...FOAM, SEAT...FOAM, SEAT
-
41623-129 RIVET,PLASTIC-REINSTALLABLERIVET,PLASTIC-REINSTALLABLE
-
51623-052 CLIP, U-NUTCLIP, U-NUT
-
66606-704 PLATE,RETAINER-SEATPLATE,RETAINER-SEAT
-
78060-702 RIVET,BLIND-DH SS62 (BLACK)RIVET,BLIND-DH SS62 (BLACK)
