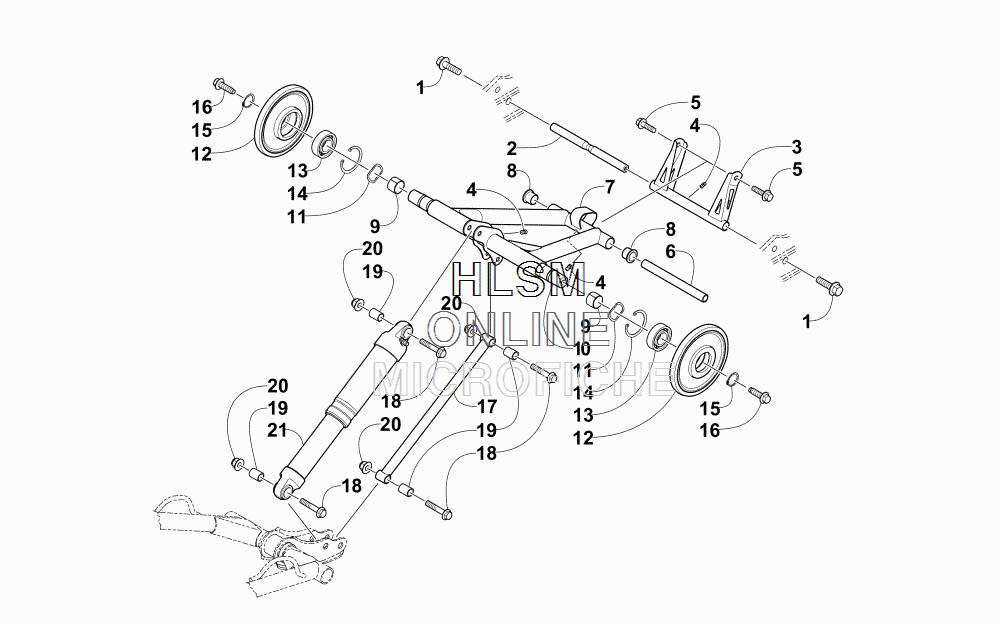

SUSPENSION REAR - REAR ARM ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (INTERNATIONAL) (GREEN) [S2015M8HLEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
18408-826 SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353
-
23604-857 AXLEAXLE
-
32704-422 ARM, REAR - (BLACK) (INC. ONE NO. 4)ARM, REAR - (BLACK) (INC. ONE NO. 4)
-
41623-010 ......FITTING,GREASE-1/4-28 UNF-SELF THREAD......FITTING,GREASE-1/4-28 UNF-SELF THREAD
-
58413-831 SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353
-
63604-855 AXLEAXLE
-
72704-420 ARM, IDLER - (BLACK) (INC. TWO NO. 4 AND 8-9)ARM, IDLER - (BLACK) (INC. TWO NO. 4 AND 8-9)
-
83604-028 ...BUSHING, FLARED -BRONZE .735" X .751 ID...BUSHING, FLARED -BRONZE .735" X .751 ID
-
92604-852 ...BEARING, 16DU12...BEARING, 16DU12
-
103604-854 AXLE, INNER CARRIAGEAXLE, INNER CARRIAGE
-
111623-692 WASHER,WAVE-1.028X1.268X.028WASHER,WAVE-1.028X1.268X.028
-
122604-699 WHEEL, IDLER (INC. 13-14)WHEEL, IDLER (INC. 13-14)
-
130107-598 ...BEARING,BALL-25MM...BEARING,BALL-25MM
-
140123-798 ...RING INTERNAL RETAINING...RING INTERNAL RETAINING
-
151623-690 SNAP RING,EXTL-.925 IDSNAP RING,EXTL-.925 ID
-
161623-836 SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPTSCREW,CAP-HFH-M10X1.25X30-CL8.8-Z & Y-MPT
-
171704-724 LINK, REAR SHOCK - (BLACK)LINK, REAR SHOCK - (BLACK)
-
188413-845 SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)SCREW,CAP-HFH M8X1.25X45 CL10.9 (SILVER)
-
193604-846 SLEEVE,SHOCK EYELET-8MM IDSLEEVE,SHOCK EYELET-8MM ID
-
208437-804 NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)NUT,HEX FLG-NYL LOCK M8X1.25 CL10 (SILVER)
-
212704-567 SHOCK ABSORBERSHOCK ABSORBER
