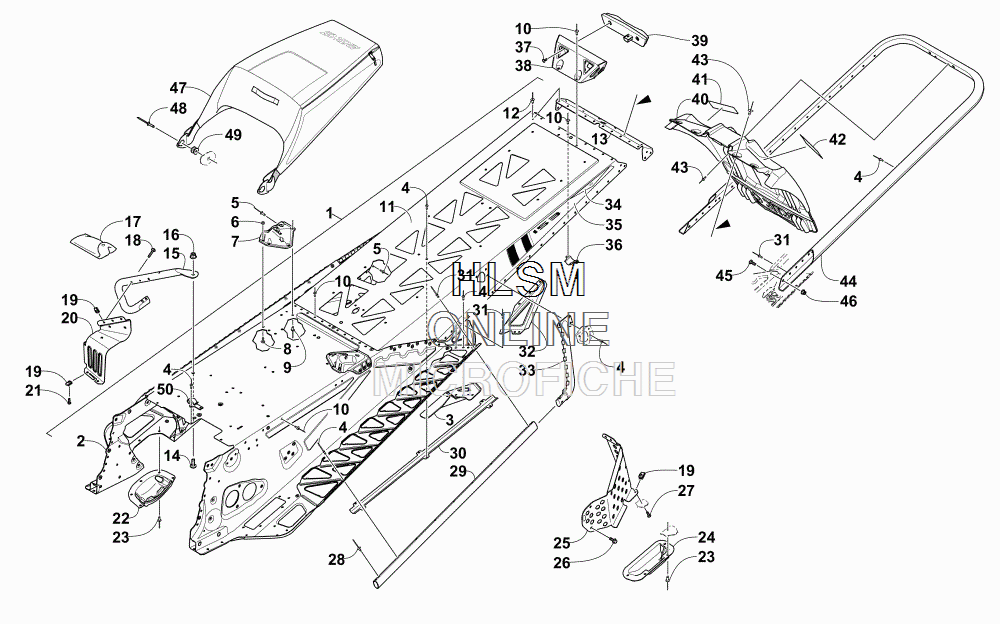

TUNNEL- REAR BUMPER- AND SNOWFLAP ASSEMBLY для Arctic Cat M 8000 SNO PRO LTD ES 153 (INTERNATIONAL) (GREEN) [S2015M8HLEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
-2707-104 COMPLETE CHASSIS ASSEMBLY - (BLACK)COMPLETE CHASSIS ASSEMBLY - (BLACK)
-
12707-295 TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)TUNNEL ASSEMBLY - (BLACK) (INC. 2-13)
-
22707-294 ...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)...TUNNEL, FRONT - ASSEMBLY - (BLACK) (INC. 3-4)
-
32707-286 ......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)......BRACKET, MOUNTING - SUSPENSION - RIGHT - (BLACK)
-
32707-287 ......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)......BRACKET, MOUNTING - SUSPENSION - LEFT - (BLACK)
-
48060-706 ......RIVET,BLIND-DH SS64 (BLACK)......RIVET,BLIND-DH SS64 (BLACK)
-
51623-206 ...RIVET,3/16 HUCK-M9...RIVET,3/16 HUCK-M9
-
68422-502 ...NUT, M5 X 1 NYL Z & Y...NUT, M5 X 1 NYL Z & Y
-
71707-692 ...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - RIGHT - (BLACK)
-
71707-693 ...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)...BRACKET, MOUNTING - REAR SPAR - LEFT - (BLACK)
-
88476-512 ...SCREW,MACH-TSTRH M5X0.8X12 Z & Y...SCREW,MACH-TSTRH M5X0.8X12 Z & Y
-
91623-257 ...RIVET,3/16 HUCK-M5...RIVET,3/16 HUCK-M5
-
108060-702 ...RIVET,BLIND-DH SS62 (BLACK)...RIVET,BLIND-DH SS62 (BLACK)
-
111707-724 ...TUNNEL, REAR - (BLACK)...TUNNEL, REAR - (BLACK)
-
128060-504 ...RIVET,BLIND-DH SS53 (BLACK)...RIVET,BLIND-DH SS53 (BLACK)
-
131707-725 ...END CAP, TUNNEL - (BLACK)...END CAP, TUNNEL - (BLACK)
-
148476-820 SCREW,MACH-TSTRH M8X1.25X20 Z & YSCREW,MACH-TSTRH M8X1.25X20 Z & Y
-
151707-454 SUPPORT, FOOTREST - RIGHT - (BLACK)SUPPORT, FOOTREST - RIGHT - (BLACK)
-
151707-455 SUPPORT, FOOTREST - LEFT - (BLACK)SUPPORT, FOOTREST - LEFT - (BLACK)
-
168427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & YNUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y
-
170744-081 KIT,TOOL BAG-2 STROKE-ASSEMBLYKIT,TOOL BAG-2 STROKE-ASSEMBLY
-
188468-536 SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353SCREW,MACH-TSPNH M5X0.8X35 CL8.8 W/2353
-
191623-637 CLIP, U-NUTCLIP, U-NUT
-
201707-556 FOOTREST - RIGHT - (BLACK)FOOTREST - RIGHT - (BLACK)
-
201707-557 FOOTREST - LEFT - (BLACK)FOOTREST - LEFT - (BLACK)
-
218470-516 SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X16 CL8.8 Z & Y
-
221607-109 PROTECTOR, CHAIN CASEPROTECTOR, CHAIN CASE
-
238061-708 RIVET, BLIND-LF SS66 (BLACK)RIVET, BLIND-LF SS66 (BLACK)
-
240607-351 PROTECTOR, BRAKE DISCPROTECTOR, BRAKE DISC
-
252707-044 SHIELD, BRAKE DISC - (BLACK)SHIELD, BRAKE DISC - (BLACK)
-
268408-613 SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353SCREW,CAP-HFH M6X1.0X12 CL8.8 Z & Y W/2353
-
278470-520 SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X20 CL8.8 Z & Y
-
281623-130 RIVET,3/16 HUCK-M4RIVET,3/16 HUCK-M4
-
291707-697 ROLL, TUNNEL - (BLACK)ROLL, TUNNEL - (BLACK)
-
300630-307 PROTECTOR, HARNESS - TAILLIGHT EXTENSIONPROTECTOR, HARNESS - TAILLIGHT EXTENSION
-
311623-241 RIVET,3/16 HUCK-M6RIVET,3/16 HUCK-M6
-
322707-288 GUSSET, RUNNING BOARD - RIGHT - (BLACK)GUSSET, RUNNING BOARD - RIGHT - (BLACK)
-
322707-289 GUSSET, RUNNING BOARD - LEFT - (BLACK)GUSSET, RUNNING BOARD - LEFT - (BLACK)
-
331707-700 GUSSET, TUNNEL ROLL - RIGHT - (BLACK)GUSSET, TUNNEL ROLL - RIGHT - (BLACK)
-
331707-701 GUSSET, TUNNEL ROLL - LEFT - (BLACK)GUSSET, TUNNEL ROLL - LEFT - (BLACK)
-
340621-990 DECAL, REFLECTOR - (RED)DECAL, REFLECTOR - (RED)
-
351621-690 DECAL, TUNNEL - RIGHTDECAL, TUNNEL - RIGHT
-
351621-691 DECAL, TUNNEL - LEFTDECAL, TUNNEL - LEFT
-
360630-292 PROTECTOR, HARNESS - TAILLIGHTPROTECTOR, HARNESS - TAILLIGHT
-
378470-512 SCREW,MACH-TSPNH M5X.8X12 CL8.8 Z & YSCREW,MACH-TSPNH M5X.8X12 CL8.8 Z & Y
-
380730-227 BRACKET, MOUNTING - TAILLIGHT - (BLACK)BRACKET, MOUNTING - TAILLIGHT - (BLACK)
-
390609-898 TAILLIGHT, LED (RED)TAILLIGHT, LED (RED)
-
406606-394 SNOWFLAP (BLACK)SNOWFLAP (BLACK)
-
415611-852 DECAL, WARNING - TOWING (FRENCH)DECAL, WARNING - TOWING (FRENCH)
-
425611-853 DECAL, WARNING - TOWING (ENGLISH)DECAL, WARNING - TOWING (ENGLISH)
-
438061-706 RIVET,BLIND-LF SS64 (BLACK)RIVET,BLIND-LF SS64 (BLACK)
-
442707-590 BUMPER, REAR - (BLACK)BUMPER, REAR - (BLACK)
-
458476-620 SCREW,MACH-TSTRH M6X1.0X20 Z & YSCREW,MACH-TSTRH M6X1.0X20 Z & Y
-
468427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
476606-600 SADDLEBAG,REARSADDLEBAG,REAR
-
488060-630 RIVET,BLIND-DH AA68 (BLACK)RIVET,BLIND-DH AA68 (BLACK)
-
491623-940 MOUNT, SADDLEBAGMOUNT, SADDLEBAG
-
500645-709 CLIP, ROUTING, BATTERY CABLECLIP, ROUTING, BATTERY CABLE
