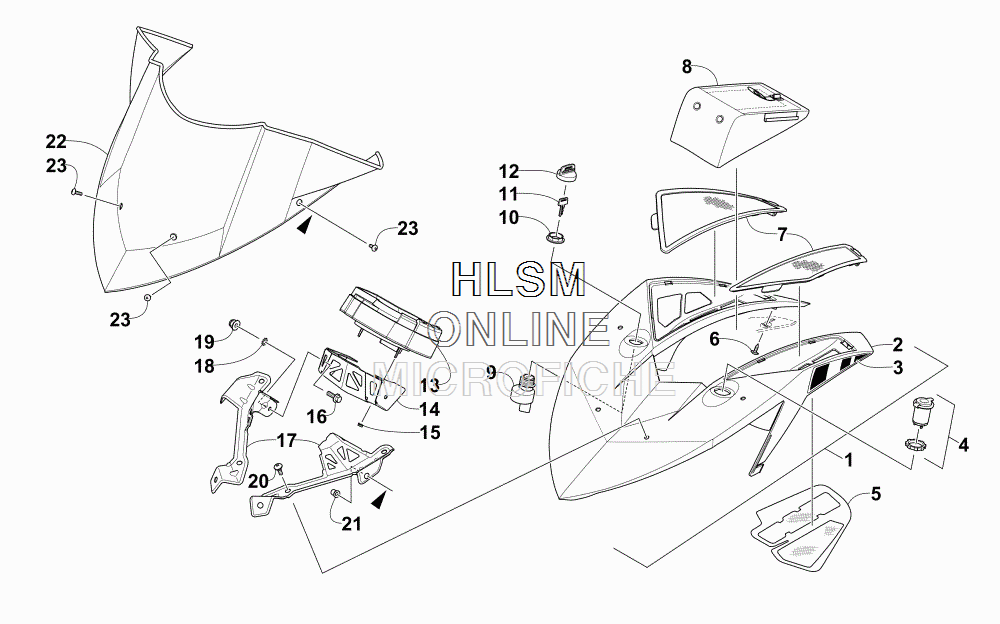

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat M 8000 SNO PRO LTD ES 153 (INTERNATIONAL) (GREEN) [S2015M8HLEOSG] - 2015 года выпуска
-
№АртикулНазвание
-
14718-168 POD W/ DECALS - (WHITE) (INC. 2-3)POD W/ DECALS - (WHITE) (INC. 2-3)
-
25706-235 ...POD, INSTRUMENT - (WHITE)...POD, INSTRUMENT - (WHITE)
-
31621-646 ...DECAL, POD - RIGHT...DECAL, POD - RIGHT
-
31621-647 DECAL, POD - LEFTDECAL, POD - LEFT
-
40641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
50608-688 SCREEN, AIR INTAKE - RIGHTSCREEN, AIR INTAKE - RIGHT
-
50608-689 SCREEN, AIR INTAKE - LEFTSCREEN, AIR INTAKE - LEFT
-
61623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BLSCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL
-
70608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
70608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
86606-566 BAG, GOGGLEBAG, GOGGLE
-
90609-910 SWITCH, IGNITION (INC. 10-12)SWITCH, IGNITION (INC. 10-12)
-
100430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
110430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
110430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
120430-054 ...COVER, KEY...COVER, KEY
-
130620-391 SPEEDO/TACH-PREMIUM-CALIB (XF/M)SPEEDO/TACH-PREMIUM-CALIB (XF/M)
-
145706-651 BRACKET, SPEEDOMETER GAUGE - CENTER - (WHITE)BRACKET, SPEEDOMETER GAUGE - CENTER - (WHITE)
-
150423-493 NUT,HEX-M4-.7 W/STAR WASHERNUT,HEX-M4-.7 W/STAR WASHER
-
168410-616 SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)SCREW,CAP-HFH M6X1.25X16 CL8.8 RIE (BLACK)
-
175706-652 BRACKET, SPEEDOMETER GAUGE - RIGHT - (WHITE)BRACKET, SPEEDOMETER GAUGE - RIGHT - (WHITE)
-
175706-653 BRACKET, SPEEDOMETER GAUGE - LEFT - (WHITE)BRACKET, SPEEDOMETER GAUGE - LEFT - (WHITE)
-
188053-212 WASHER,LOCK-1/4 EXT TOOTH TYP A Z & YWASHER,LOCK-1/4 EXT TOOTH TYP A Z & Y
-
198427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
200423-355 SCREW, SHOULDER-M6-1.0 X 18- (BLACK)SCREW, SHOULDER-M6-1.0 X 18- (BLACK)
-
211623-764 NUT, EXPANSIONNUT, EXPANSION
-
226606-578 WINDSHIELD - LOW - (WHITE)WINDSHIELD - LOW - (WHITE)
-
238477-516 SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)SCREW,MACH-TSTRH M5X0.8X16 Z & (BLACK)
