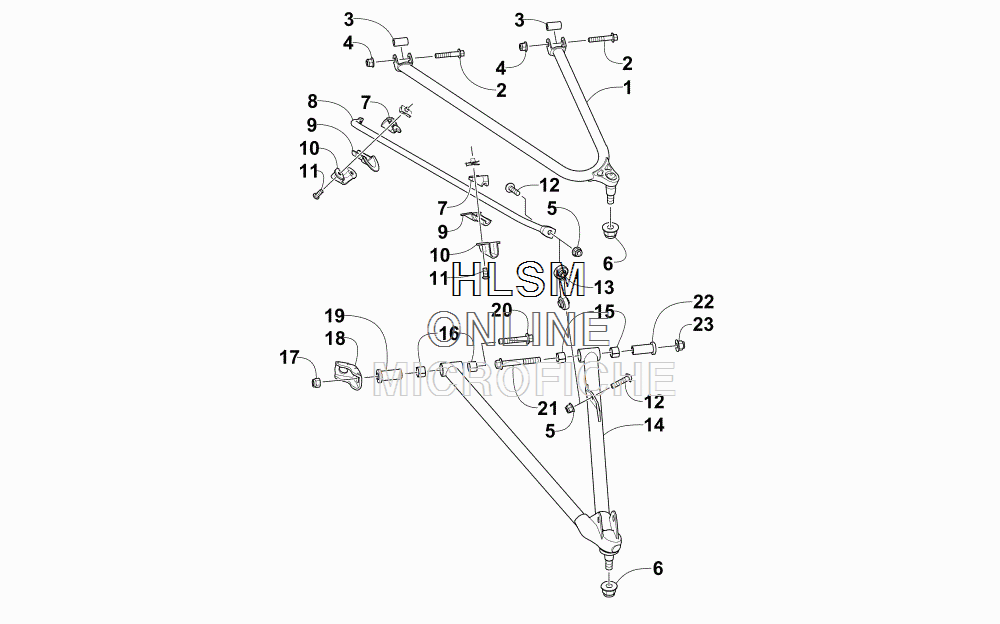

A-ARM AND SWAY BAR ASSEMBLY для Arctic Cat XF 6000 HIGH COUNTRY 141 SNO PRO (INTERNATIONAL) (ORANGE) [S2015X6DHIOSO] - 2015 года выпуска
-
№АртикулНазвание
-
13703-352 A-ARM, UPPER RIGHT - (WHITE)A-ARM, UPPER RIGHT - (WHITE)
-
13703-353 A-ARM, UPPER LEFT - (WHITE)A-ARM, UPPER LEFT - (WHITE)
-
28413-645 SCREW, CAPSCREW, CAP
-
33603-258 AXLE, A-ARM - UPPERAXLE, A-ARM - UPPER
-
48437-604 NUT, LOCKNUT, LOCK
-
58427-802 NUT, LOCKNUT, LOCK
-
68427-202 NUT, LOCKNUT, LOCK
-
72603-944 BUSHINGBUSHING
-
82703-615 BAR, SWAYBAR, SWAY
-
92603-945 BUSHINGBUSHING
-
102603-857 BRACKET, MOUNTING - SWAY BARBRACKET, MOUNTING - SWAY BAR
-
118468-621 SCREW, MACHINESCREW, MACHINE
-
128476-835 SCREW, MACHINESCREW, MACHINE
-
133603-295 LINK, SWAY BARLINK, SWAY BAR
-
143703-328 A-ARM, LOWER RIGHT - (WHITE) (INC. 15-16)A-ARM, LOWER RIGHT - (WHITE) (INC. 15-16)
-
143703-329 A-ARM, LOWER LEFT - (WHITE) (INC. 15-16)A-ARM, LOWER LEFT - (WHITE) (INC. 15-16)
-
151603-895 ......BEARING......BEARING
-
162603-911 ......BEARING......BEARING
-
171623-965 NUT, LOCKNUT, LOCK
-
182603-909 BRACE, LOWER A-ARM - FRONTBRACE, LOWER A-ARM - FRONT
-
192603-916 AXLE, INNER - LOWER A-ARM - FRONTAXLE, INNER - LOWER A-ARM - FRONT
-
201623-953 SCREW, CAPSCREW, CAP
-
218409-075 SCREW, CAPSCREW, CAP
-
222603-543 AXLE, LOWER A-ARM - REARAXLE, LOWER A-ARM - REAR
-
238427-002 NUT, LOCKNUT, LOCK
