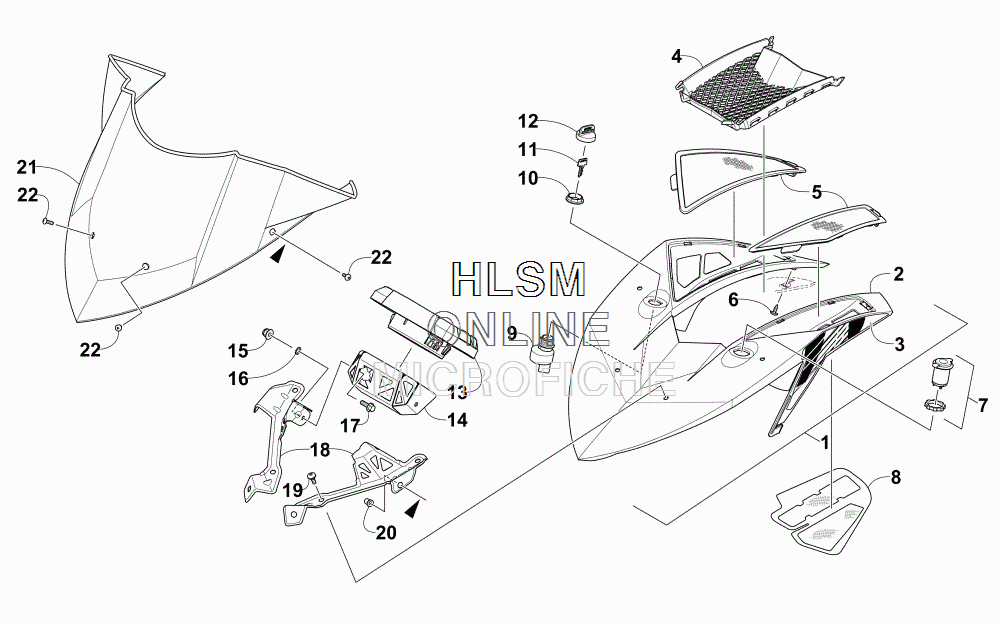

WINDSHIELD AND INSTRUMENTS ASSEMBLIES для Arctic Cat XF 6000 HIGH COUNTRY 141 SNO PRO (INTERNATIONAL) (ORANGE) [S2015X6DHIOSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-223 POD W/DECALS - (WHITE) (INC. 2-3)POD W/DECALS - (WHITE) (INC. 2-3)
-
25706-235 ...POD, INSTRUMENT - (WHITE)...POD, INSTRUMENT - (WHITE)
-
31621-438 ...DECAL, POD - RIGHT...DECAL, POD - RIGHT
-
31621-439 ...DECAL, POD - LEFT...DECAL, POD - LEFT
-
46606-576 VENT, INTAKEVENT, INTAKE
-
50608-688 SCREEN, AIR INTAKE - RIGHTSCREEN, AIR INTAKE - RIGHT
-
50608-689 SCREEN, AIR INTAKE - LEFTSCREEN, AIR INTAKE - LEFT
-
61623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
70641-897 OUTLET, ACCESSORY - (12V DC)OUTLET, ACCESSORY - (12V DC)
-
80608-736 SCREEN, INTAKE - INJECTION MOLD - RIGHTSCREEN, INTAKE - INJECTION MOLD - RIGHT
-
80608-737 SCREEN, INTAKE - INJECTION MOLD - LEFTSCREEN, INTAKE - INJECTION MOLD - LEFT
-
90609-910 SWITCH, IGNITION (INC. 10-12)SWITCH, IGNITION (INC. 10-12)
-
100430-050 ...NUT, FLANGE - IGNITION SWITCH...NUT, FLANGE - IGNITION SWITCH
-
110430-042 ...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)...KEY, IGNITION - (Y SERIES - LEFT-SIDE CUT)
-
110430-043 ...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)...KEY, IGNITION - (Z SERIES - RIGHT-SIDE CUT)
-
120430-054 ...COVER, KEY...COVER, KEY
-
130720-031 GAUGE, SPEEDOMETERGAUGE, SPEEDOMETER
-
146606-714 BRACKET, SPEEDOMETER GAUGE - CENTERBRACKET, SPEEDOMETER GAUGE - CENTER
-
158410-616 SCREW, CAPSCREW, CAP
-
166606-130 BRACKET, SPEEDOMETER GAUGE - RIGHTBRACKET, SPEEDOMETER GAUGE - RIGHT
-
166606-131 BRACKET, SPEEDOMETER GAUGE - LEFTBRACKET, SPEEDOMETER GAUGE - LEFT
-
178053-212 WASHER, LOCKWASHER, LOCK
-
188427-602 NUT, LOCKNUT, LOCK
-
190423-355 SCREW, SHOULDERSCREW, SHOULDER
-
201623-764 NUT, EXPANSIONNUT, EXPANSION
-
216606-482 WINDSHIELD - LOW - (ORANGE)WINDSHIELD - LOW - (ORANGE)
-
228477-516 SCREW, MACHINESCREW, MACHINE
