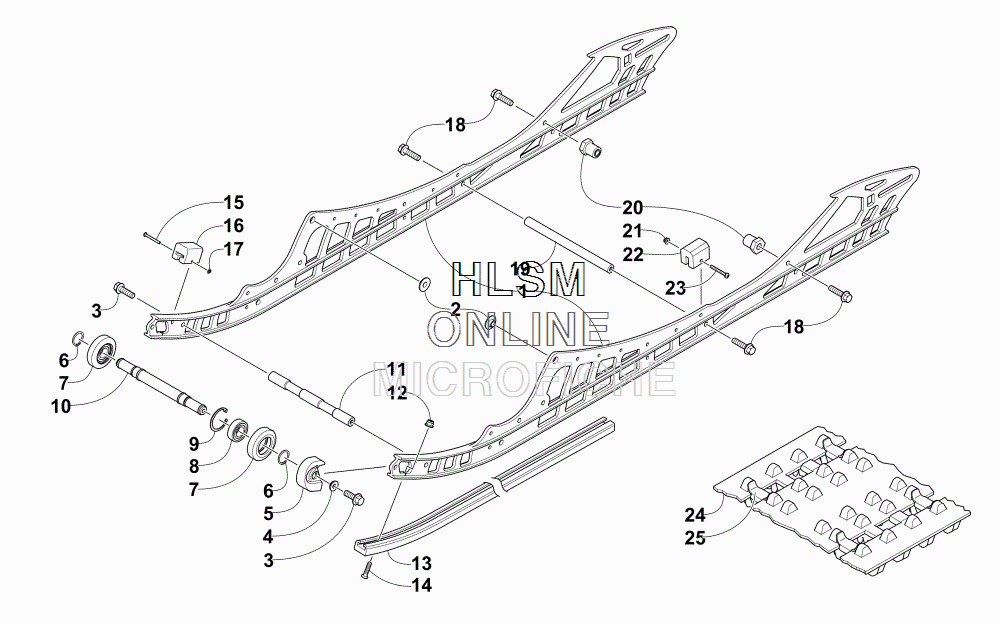

TRACK ASSEMBLY W/ SLIDE RAIL для Arctic Cat XF 6000 HIGH COUNTRY 141 SNO PRO (INTERNATIONAL) (ORANGE) [S2015X6DHIOSO] - 2015 года выпуска
-
№АртикулНазвание
-
-2704-588 COMPLETE SKID FRAME ASSEMBLYCOMPLETE SKID FRAME ASSEMBLY
-
12704-589 RAIL, FORMED - (ORANGE)RAIL, FORMED - (ORANGE)
-
23604-266 INSERT, RAILINSERT, RAIL
-
38408-831 SCREW, CAPSCREW, CAP
-
43604-928 SPACERSPACER
-
54604-117 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
61423-001 RING, RETAININGRING, RETAINING
-
73604-844 WHEEL, IDLER - (BLACK) (INC. 8-9)WHEEL, IDLER - (BLACK) (INC. 8-9)
-
83604-033 ...BEARING...BEARING
-
90623-946 ...RING, RETAINING...RING, RETAINING
-
103604-921 AXLEAXLE
-
113604-630 AXLEAXLE
-
128047-366 NUT, LOCKNUT, LOCK
-
133604-714 WEARSTRIP - (BLACK)WEARSTRIP - (BLACK)
-
140123-859 SCREW, MACHINESCREW, MACHINE
-
150123-767 RIVET, SOLIDRIVET, SOLID
-
160104-631 PAD, SHOCKPAD, SHOCK
-
170123-766 NUT, PUSHNUT, PUSH
-
188408-826 SCREW, CAPSCREW, CAP
-
193604-667 AXLEAXLE
-
203604-635 BUSHING, STOP - REAR ARMBUSHING, STOP - REAR ARM
-
218427-502 NUT, LOCKNUT, LOCK
-
221604-429 PAD, SHOCKPAD, SHOCK
-
238470-540 SCREW, MACHINESCREW, MACHINE
-
242602-166 TRACK ASSEMBLY (INC. 25)TRACK ASSEMBLY (INC. 25)
-
252602-386 ...CLIP, GUIDE...CLIP, GUIDE
