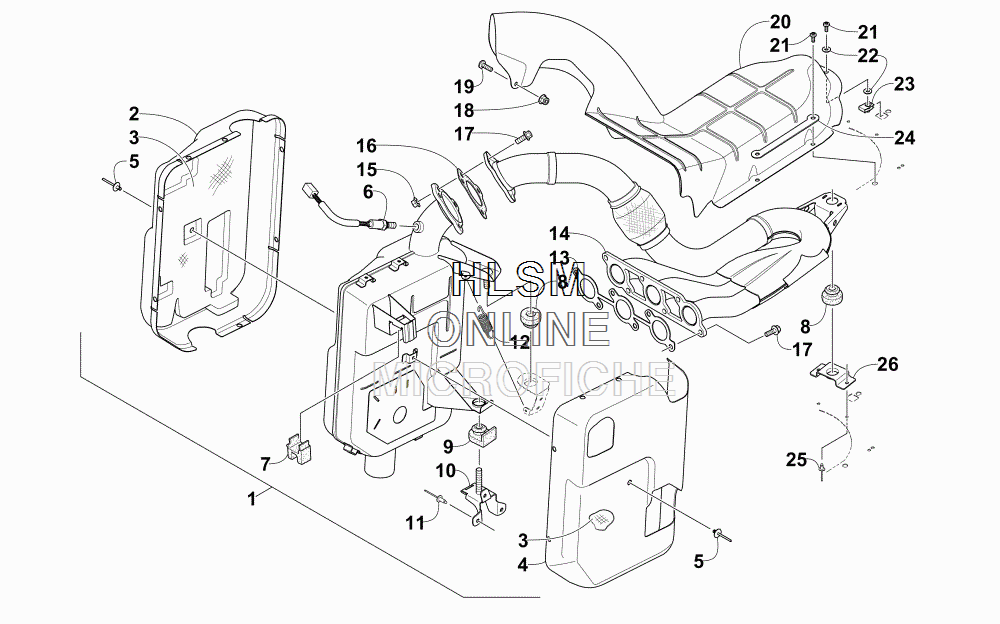

EXHAUST ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR 141 (ORANGE) [S2015X7UCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
11712-964 RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)RESONATOR, EXHAUST - ASSEMBLY (INC. 2-5)
-
22612-822 ...SHIELD, HEAT - RIGHT...SHIELD, HEAT - RIGHT
-
32612-820 ...PACKING, RESONATOR...PACKING, RESONATOR
-
42612-823 ...SHIELD, HEAT - LEFT...SHIELD, HEAT - LEFT
-
51623-799 ...RIVET, BLIND-LF SD61BSLF ZINC...RIVET, BLIND-LF SD61BSLF ZINC
-
60630-302 SENSOR, OXYGENSENSOR, OXYGEN
-
72612-908 GROMMET, RUBBER-UPPERGROMMET, RUBBER-UPPER
-
82612-186 GROMMET, RUBBER-RESONATOR MOUNTGROMMET, RUBBER-RESONATOR MOUNT
-
92612-912 GROMMET, RESONATOR MOUNTGROMMET, RESONATOR MOUNT
-
101712-790 BRACKET, MOUNTING - LOWERBRACKET, MOUNTING - LOWER
-
118060-708 RIVET, BLIND-DH SS66 BLKRIVET, BLIND-DH SS66 BLK
-
120612-668 SPRINGSPRING
-
133020-136 GASKET, EXHAUSTGASKET, EXHAUST
-
141712-965 MANIFOLD, EXHAUST - WELDMENTMANIFOLD, EXHAUST - WELDMENT
-
151623-912 NUT, LOCKNUT, LOCK
-
162612-663 GASKET, EXHAUSTGASKET, EXHAUST
-
171623-918 SCREW, CAPSCREW, CAP
-
188427-602 NUT, LOCKNUT, LOCK
-
198476-625 SCREW, MACHINESCREW, MACHINE
-
202612-880 SHIELD, HEATSHIELD, HEAT
-
218476-516 SCREW, MACHINESCREW, MACHINE
-
228050-217 WASHER, FLATWASHER, FLAT
-
231623-637 CLIP, U-NUTCLIP, U-NUT
-
242612-969 PLATE, MOUNTING - HEAT SHIELDPLATE, MOUNTING - HEAT SHIELD
-
258060-682 RIVET, BLIND-DH SS62 ZINCRIVET, BLIND-DH SS62 ZINC
-
262612-963 BRACKET, MOUNTING - MANIFOLDBRACKET, MOUNTING - MANIFOLD
