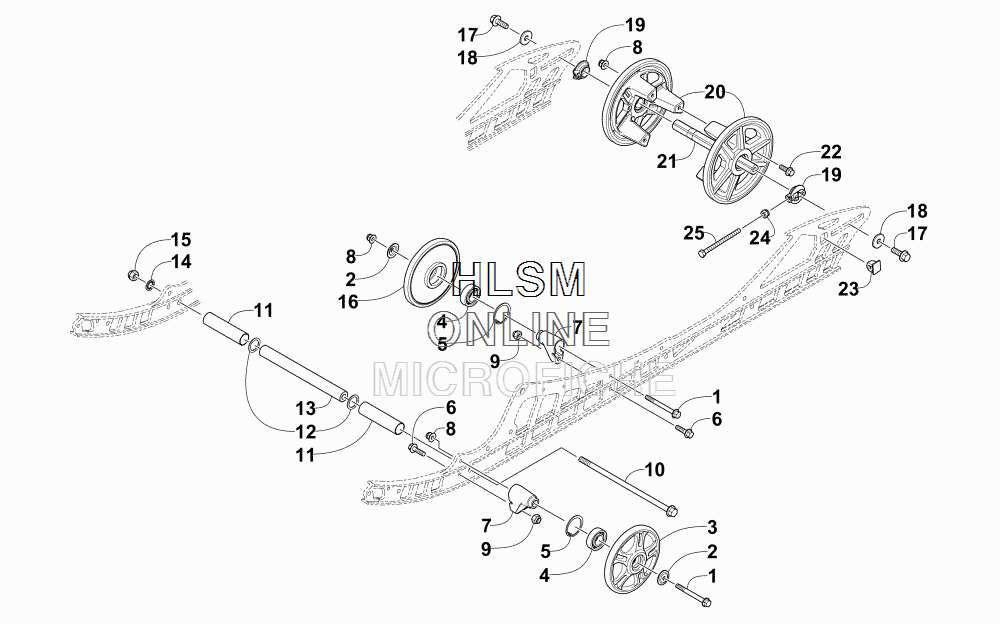

IDLER WHEEL ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR 141 (ORANGE) [S2015X7UCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
18413-675 SCREW, CAPSCREW, CAP
-
22623-025 WASHERWASHER
-
33604-386 WHEEL, IDLER - BLACK (INC. 4-5)WHEEL, IDLER - BLACK (INC. 4-5)
-
43604-033 ...BEARING...BEARING
-
50623-946 ...RING, RETAINING...RING, RETAINING
-
68413-620 SCREW, CAPSCREW, CAP
-
68413-620 SCREW, CAPSCREW, CAP
-
73604-899 BLOCK, MOUNTING - IDLER WHEELBLOCK, MOUNTING - IDLER WHEEL
-
88427-602 NUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & YNUT, HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y
-
98422-602 NUT, HEX-THK NYL M6X1.00 CL8 Z & YNUT, HEX-THK NYL M6X1.00 CL8 Z & Y
-
101423-064 SCREW, CAPSCREW, CAP
-
113604-083 SPACERSPACER
-
120623-912 WASHER, FLAT - 0.890 X 1.19 X 0.060 Z & YWASHER, FLAT - 0.890 X 1.19 X 0.060 Z & Y
-
133604-269 AXLEAXLE
-
141623-992 WASHER, INTERNAL TOOTH LOCKWASHER, INTERNAL TOOTH LOCK
-
158422-002 NUT, HEX-THK NYL M10X1.25 CL8 Z & YNUT, HEX-THK NYL M10X1.25 CL8 Z & Y
-
163604-039 WHEEL, IDLER (INC. 4-5)WHEEL, IDLER (INC. 4-5)
-
178408-031 SCREW, CAP-HFH M10X1.25X30 CL8.8 W/2353SCREW, CAP-HFH M10X1.25X30 CL8.8 W/2353
-
181623-931 WASHER, FLATWASHER, FLAT
-
193604-641 BUSHING, ADJUSTERBUSHING, ADJUSTER
-
204604-137 WHEEL, IDLER - TRI-HUB - 8.00 W/0.787 IDWHEEL, IDLER - TRI-HUB - 8.00 W/0.787 ID
-
213604-640 AXLE, REARAXLE, REAR
-
228408-620 SCREW, CAPSCREW, CAP
-
233604-647 ADJUSTER, TRACKADJUSTER, TRACK
-
248422-802 NUT, LOCKNUT, LOCK
-
251623-682 SCREW, CAPSCREW, CAP
