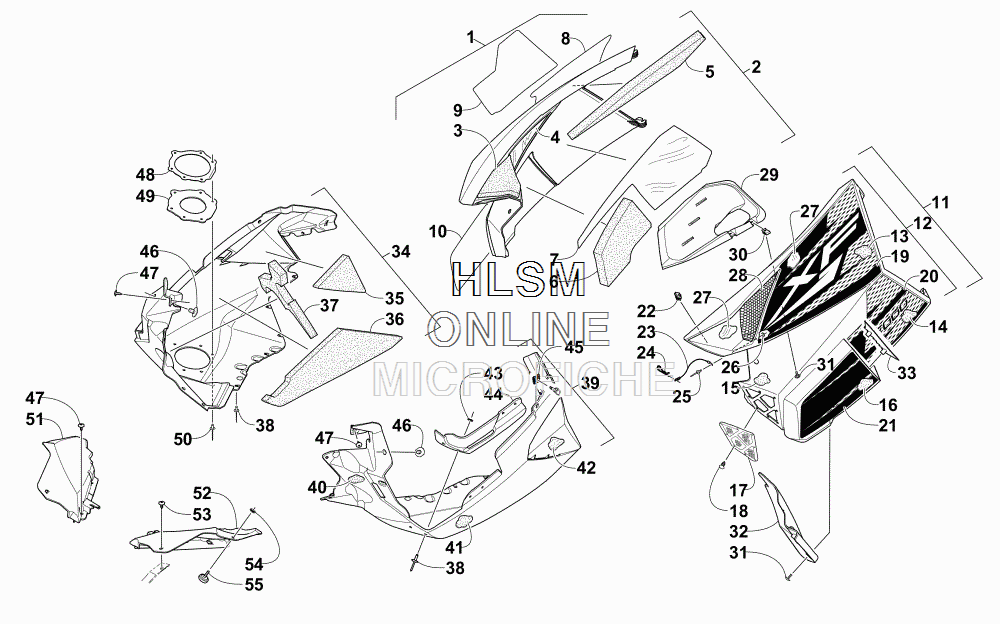

SKID PLATE AND SIDE PANEL ASSEMBLY для Arctic Cat XF 7000 CROSS-TOUR 141 (ORANGE) [S2015X7UCTUSO] - 2015 года выпуска
-
№АртикулНазвание
-
14718-354 PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-10)PANEL, SIDE W/DECALS - RIGHT - BLACK (INC. 2-10)
-
23718-312 ...PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 3-7)...PANEL, SIDE W/O DECALS - RIGHT - BLACK (INC. 3-7)
-
30617-626 ......FOAM, SIDE PANEL - UPPER FRONT - RIGHT......FOAM, SIDE PANEL - UPPER FRONT - RIGHT
-
46606-414 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
50617-628 ......FOAM, SIDE PANEL - UPPER REAR - RIGHT......FOAM, SIDE PANEL - UPPER REAR - RIGHT
-
60617-632 ......FOAM, SIDE PANEL - LOWER FRONT - RIGHT......FOAM, SIDE PANEL - LOWER FRONT - RIGHT
-
76606-416 ......FOIL, PROTECTIVE......FOIL, PROTECTIVE
-
81621-554 ...DECAL, SIDE PANEL - UPPER - RIGHT...DECAL, SIDE PANEL - UPPER - RIGHT
-
91621-560 ...DECAL, SIDE PANEL - LOWER REAR - RIGHT...DECAL, SIDE PANEL - LOWER REAR - RIGHT
-
101621-566 ...DECAL, SIDE PANEL - FORWARD - RIGHT...DECAL, SIDE PANEL - FORWARD - RIGHT
-
114718-355 PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 12-21)PANEL, SIDE W/DECALS - LEFT - BLACK (INC. 12-21)
-
124718-101 ...PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 13-18)...PANEL, SIDE W/O DECALS - LEFT - BLACK (INC. 13-18)
-
130617-629 ......FOAM, SIDE PANEL - UPPER REAR - LEFT......FOAM, SIDE PANEL - UPPER REAR - LEFT
-
140617-635 ......FOAM, SIDE PANEL - LOWER REAR - LEFT......FOAM, SIDE PANEL - LOWER REAR - LEFT
-
150617-631 ......FOAM, SIDE PANEL - CENTER FRONT - LEFT......FOAM, SIDE PANEL - CENTER FRONT - LEFT
-
160617-681 ......FOAM, SIDE PANEL - LOWER FRONT - LEFT......FOAM, SIDE PANEL - LOWER FRONT - LEFT
-
172602-704 ......SCREEN, VENT......SCREEN, VENT
-
180623-269 ......CLIP, RETAINER......CLIP, RETAINER
-
191621-555 ...DECAL, SIDE PANEL - UPPER - LEFT...DECAL, SIDE PANEL - UPPER - LEFT
-
201621-561 ...DECAL, SIDE PANEL - LOWER REAR - LEFT...DECAL, SIDE PANEL - LOWER REAR - LEFT
-
211621-567 ...DECAL, SIDE PANEL - FORWARD - LEFT...DECAL, SIDE PANEL - FORWARD - LEFT
-
221623-637 CLIP, U-NUTCLIP, U-NUT
-
230607-447 CABLECABLE
-
240605-283 CLIP, HAIRPINCLIP, HAIRPIN
-
258060-486 RIVET, BLIND-DH SS54 ZINCRIVET, BLIND-DH SS54 ZINC
-
268050-127 WASHER, FLATWASHER, FLAT
-
270619-206 TAPE, ALUM FOIL - 6" X 30 FTTAPE, ALUM FOIL - 6" X 30 FT
-
285706-531 SCREEN, INTAKESCREEN, INTAKE
-
291702-369 DUCT, AIR - CLUTCHDUCT, AIR - CLUTCH
-
301623-030 CLIP, U-NUTCLIP, U-NUT
-
310623-797 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
322602-711 DEFLECTOR, AIRDEFLECTOR, AIR
-
332602-703 RETAINER, AIR DEFLECTORRETAINER, AIR DEFLECTOR
-
343718-788 PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 35-37)PLATE, SKID W/O DECALS - RIGHT - BLACK (INC. 35-37)
-
350617-640 ...FOAM, SKID PLATE - UPPER REAR - RIGHT...FOAM, SKID PLATE - UPPER REAR - RIGHT
-
360617-638 ...FOAM, SKID PLATE - CENTER FRONT - RIGHT...FOAM, SKID PLATE - CENTER FRONT - RIGHT
-
370617-636 ...FOAM, SKID PLATE - UPPER FRONT - RIGHT...FOAM, SKID PLATE - UPPER FRONT - RIGHT
-
388061-708 RIVET, BLIND-LF SS66 BLACKRIVET, BLIND-LF SS66 BLACK
-
393718-789 PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 40-44)PLATE, SKID W/O DECALS - LEFT - BLACK (INC. 40-44)
-
400617-637 ...FOAM, SKID PLATE - UPPER FRONT - LEFT...FOAM, SKID PLATE - UPPER FRONT - LEFT
-
410617-639 ...FOAM, SKID PLATE - CENTER FRONT - LEFT...FOAM, SKID PLATE - CENTER FRONT - LEFT
-
420617-641 ...FOAM, SKID PLATE - UPPER REAR - LEFT...FOAM, SKID PLATE - UPPER REAR - LEFT
-
430123-802 ...WASHER, FLAT...WASHER, FLAT
-
446606-613 ...PANEL, REINFORCEMENT...PANEL, REINFORCEMENT
-
452623-005 CLIP, RETAININGCLIP, RETAINING
-
466606-592 PIN, RETAINER-BODY PLASTICPIN, RETAINER-BODY PLASTIC
-
471623-129 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
482612-685 PLATE, EXHAUST OUTLETPLATE, EXHAUST OUTLET
-
492612-964 SEAL, EXHAUST OUTLETSEAL, EXHAUST OUTLET
-
508061-508 RIVET, BLIND-LF SS56 BLACKRIVET, BLIND-LF SS56 BLACK
-
516606-342 FASCIA, FRONT - RIGHT - BLACKFASCIA, FRONT - RIGHT - BLACK
-
526606-579 FASCIA, FRONT - LEFT - BLACKFASCIA, FRONT - LEFT - BLACK
-
530623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
542623-001 NUT, PUSHNUT, PUSH
-
551623-999 SCREW, THUMBSCREW, THUMB
