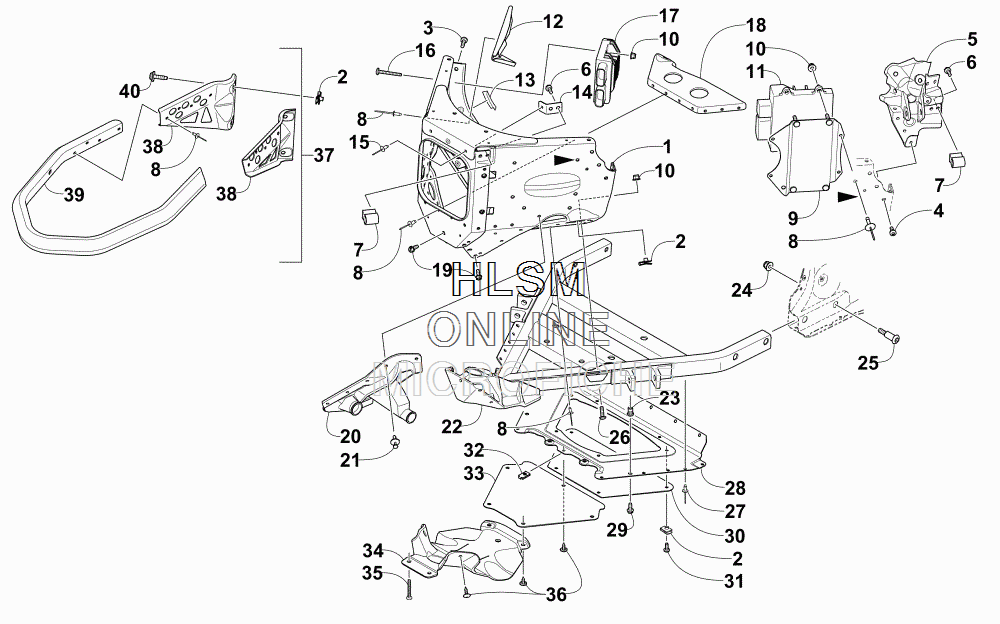

FRONT BUMPER AND FRAME ASSEMBLY для Arctic Cat XF 7000 SNO PRO 137 (INTERNATIONAL) (GREEN) [S2015XFUSPOSG] - 2015 года выпуска

№

Артикул

Название
1

2707-477 PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)

PANEL, FRONT - ASSEMBLY - (BLACK) (INC. 2-5)

66 550 ₽
2

0423-577 ...CLIP, U-NUT

...CLIP, U-NUT

210 ₽
3

1623-683 ...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B

...SCREW,TAPTITE-TSPNH M6 X 1 X 20 Z & B

190 ₽
4

0423-538 ...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B

...SCREW,TAPTITE-TSPNH M6 X 1 X 16 Z & B

110 ₽
5

1707-668 ...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)

...BRACKET, SHOCK MOUNT - UPPER RIGHT - (BLACK)

15 180 ₽
5

1707-669 ...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)

...BRACKET, SHOCK MOUNT - UPPER LEFT - (BLACK)

15 180 ₽
6

8413-617 SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353

SCREW,CAP-HFH M6X1.0X16 CL10.9 W/2353

190 ₽
7

1607-233 BRACKET, MOUNTING - UPPER A-ARM

BRACKET, MOUNTING - UPPER A-ARM

2 280 ₽
8

8060-706 ...RIVET,BLIND-DH SS64 (BLACK)

...RIVET,BLIND-DH SS64 (BLACK)

60 ₽
9

0745-391 BRACKET, MOUNTING - ECM

BRACKET, MOUNTING - ECM

5 190 ₽
10

8427-602 NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z & Y

440 ₽
11

0730-225 ECM,PROGRAMMED-7000-9T/2.86P

ECM,PROGRAMMED-7000-9T/2.86P

390 ₽
12

1607-126 BRACKET, STEERING STOP

BRACKET, STEERING STOP

4 360 ₽
13

0706-371 TRIM - 3 FT

TRIM - 3 FT

3 110 ₽
14

1607-561 GUSSET, A-ARM MOUNTING BRACKET

GUSSET, A-ARM MOUNTING BRACKET

270 ₽
15

1623-241 RIVET,3/16 HUCK-M6

RIVET,3/16 HUCK-M6

290 ₽
16

8477-625 SCREW,MACH-TSTRH M6X1.0X25 Z & (BLACK)

SCREW,MACH-TSTRH M6X1.0X25 Z & (BLACK)

190 ₽
17

0824-072 REGULATOR, VOLTAGE

REGULATOR, VOLTAGE

30 990 ₽
18

1607-127 BRACKET, REINFORCEMENT

BRACKET, REINFORCEMENT

4 360 ₽
19

1623-959 SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)

SCREW,SELF TAP 1/4-20X5/8 TYPE F (BLACK)

40 ₽
20

1605-028 BOOT, STEERING - RIGHT

BOOT, STEERING - RIGHT

4 990 ₽
20

1605-029 BOOT, STEERING - LEFT

BOOT, STEERING - LEFT

4 990 ₽
21

0623-362 RIVET,PLASTIC-REINSTALLABLE

RIVET,PLASTIC-REINSTALLABLE

110 ₽
22

1707-843 FRAME, LOWER - 4-STROKE - WELDMENT

FRAME, LOWER - 4-STROKE - WELDMENT

59 480 ₽
23

1623-797 INSERT,M5X0.8-AL SERIES ALS4-580-3.3

INSERT,M5X0.8-AL SERIES ALS4-580-3.3

480 ₽
24

8427-802 NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y

NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z & Y

90 ₽
25

1623-817 SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16

SCREW,SHOULDER-HSTRH M8 X 1.25 X 44.16

290 ₽
26

8468-620 SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)

SCREW,MACH-TSPNH M6X1.0X20 CL8.8 (BLACK)

110 ₽
27

8060-686 RIVET,BLIND-DH SS64 ZINC

RIVET,BLIND-DH SS64 ZINC

60 ₽
28

1607-217 BELLY PAN - CENTER

BELLY PAN - CENTER

4 150 ₽
29

8476-520 SCREW,MACH-TSTRH M5X0.8X20 Z & Y

SCREW,MACH-TSTRH M5X0.8X20 Z & Y

250 ₽
30

1607-218 COVER, ACCESS

COVER, ACCESS

2 280 ₽
31

8468-617 SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353

SCREW,MACH-TSPNH M6X1.0X16 CL8.8 W/2353

190 ₽
32

1623-052 CLIP, U-NUT

CLIP, U-NUT

150 ₽
33

1607-063 PANEL, ACCESS

PANEL, ACCESS

1 870 ₽
34

6606-614 BELLY PAN - FRONT

BELLY PAN - FRONT

2 070 ₽
35

1623-929 SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B

SCREW,PLASTITE-TXSPNH 10-14X1 1/2 Z & B

210 ₽
36

1623-129 SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL

SCREW,SELF TAP-TXSTRH #10-12X5/8 TP A BL

230 ₽
37

1707-598 BUMPER, FRONT - ASSEMBLY - (ORANGE) (INC. EIGHT NO. 8 AND 38-39)

BUMPER, FRONT - ASSEMBLY - (ORANGE) (INC. EIGHT NO. 8 AND 38-39)

16 220 ₽
38

1707-576 ...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)

...BRACKET, MOUNTING - BUMPER - RIGHT - (BLACK)

2 700 ₽
38

1707-577 ...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)

...BRACKET, MOUNTING - BUMPER - LEFT - (BLACK)

2 700 ₽
39

1707-580 ...BUMPER, FRONT - (ORANGE)

...BUMPER, FRONT - (ORANGE)

11 020 ₽
40

0423-609 SCREW,FUEL TANK MOUNT (M6X18 DP)

SCREW,FUEL TANK MOUNT (M6X18 DP)

150 ₽
